DeLOCK 89889 interface cards / adapter

DeLOCK 89889. Output interface: M.2, Connector(s): 1 x 67 pin M.2 key E, 1 x PCI Express x1, 1 x USB 2.0 Micro-B, 1 x USB 2.0 pin header. Country of origin: Taiwan. Package type: Box

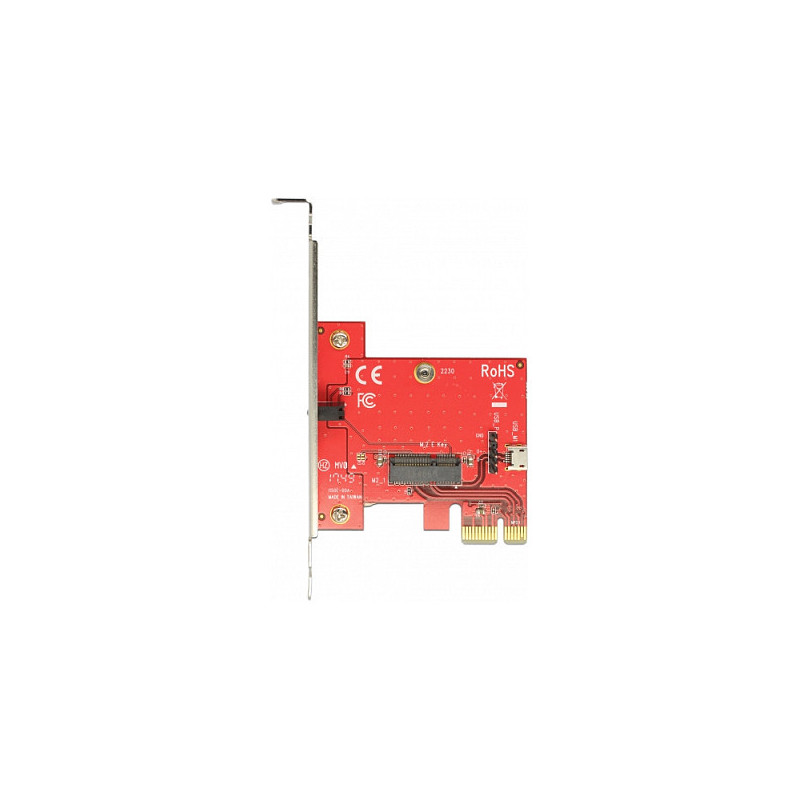

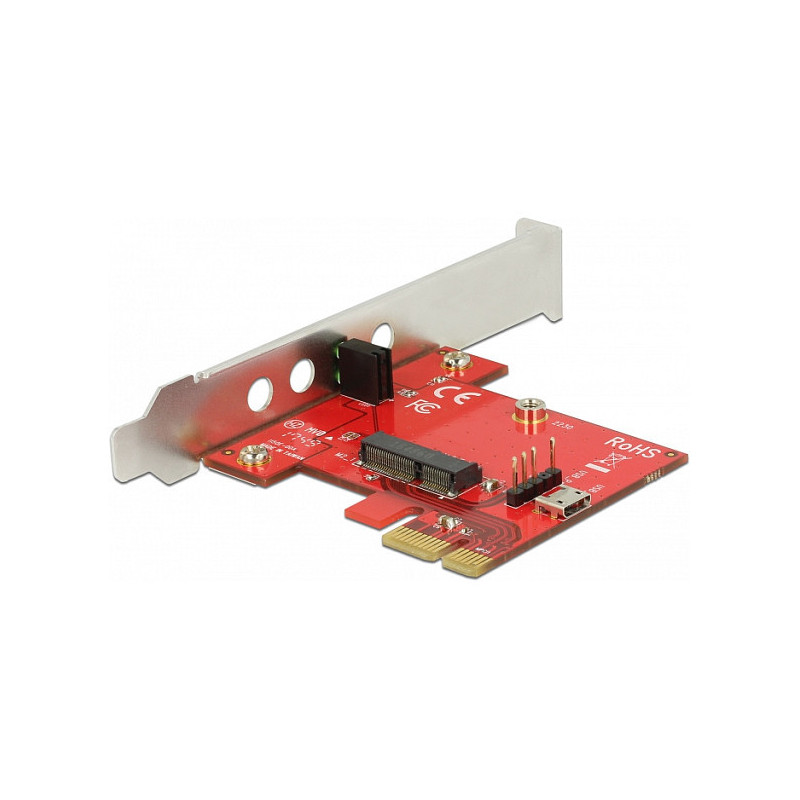

This PCI Express card by Delock expands the PC by one M.2 key E slot. Different M.2 modules with USB and PCIe signals can be inserted in the card. On the M.2 key A or key E interface can be used e.g. WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules. Further it is possible to use both functions of a module which has e.g. WLAN and Bluetooth. The USB modules need to be connected via the USB interface of the card to the system.

Ports & interfaces

Output interface: M.2
USB 2.0 ports quantity: 1

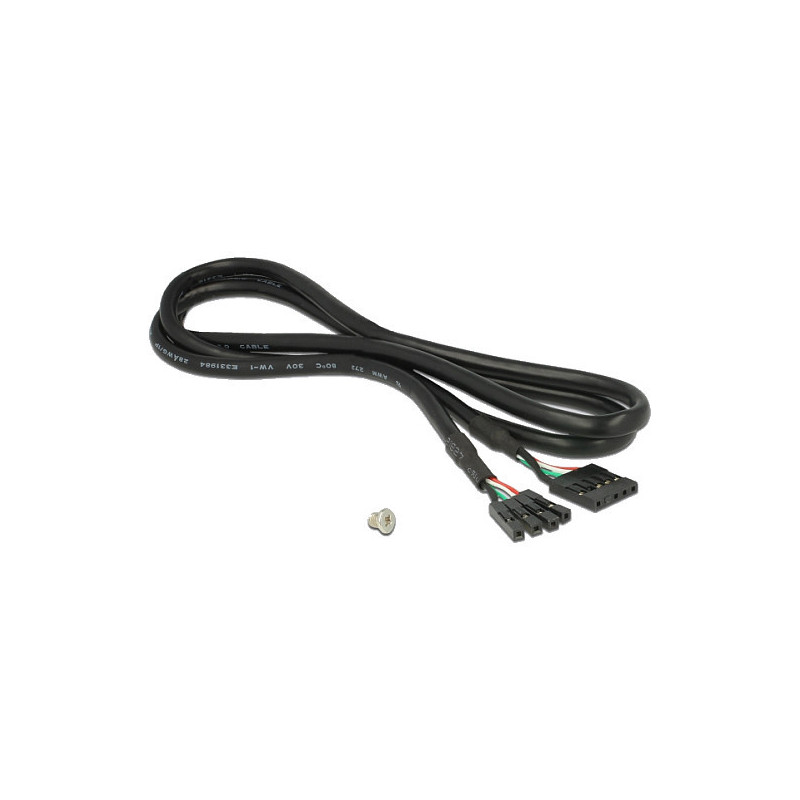

Connector(s): 1 x 67 pin M.2 key E, 1 x PCI Express x1, 1 x USB 2.0 Micro-B, 1 x USB 2.0 pin header
Internal USB 2.0 ports quantity: 1
Number of M.2 (M) slots: 1

Design

Feature: Internal
Country of origin: Taiwan

Packaging data

Quantity: 1
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
