DeLOCK 89888 interface cards / adapter

DeLOCK 89888. Host interface: PCIe, Output interface: SATA, Connector(s): 1 x PCI Express x4, 4 x 67 pin M.2 key B. Country of origin: China. Chipset: Marvell 88SE9230, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, 10. Package type: Box

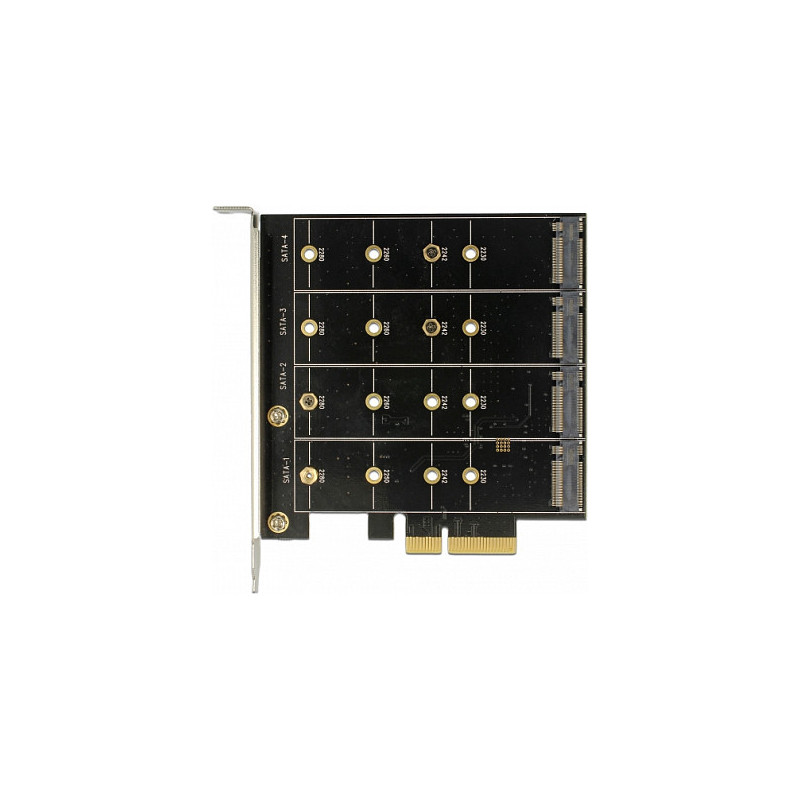

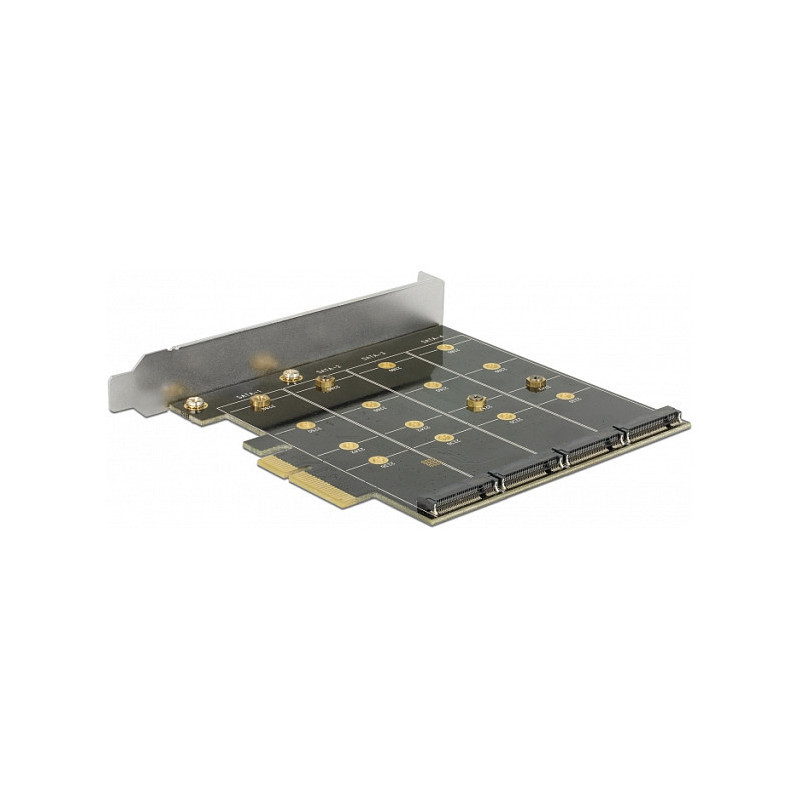

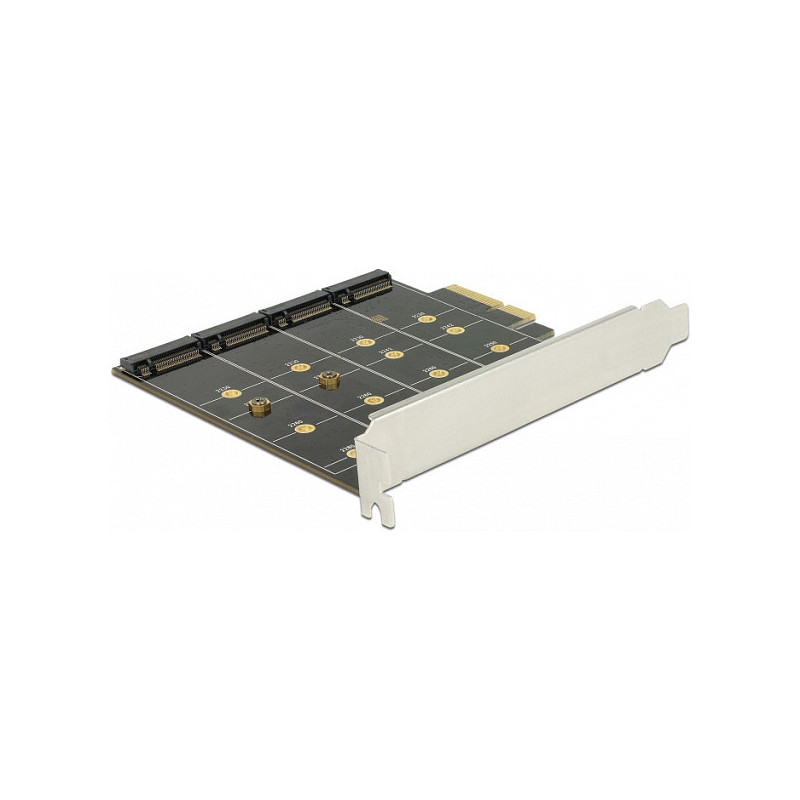

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card. When using more than one SSD, there is the possibility to use different RAID level.

Ports & interfaces

Host interface: PCIe
Output interface: SATA
Connector(s): 1 x PCI Express x4, 4 x 67 pin M.2 key B
Number of M.2 (M) slots: 4

Design

Feature: Internal
Country of origin: China

Features

Chipset: Marvell 88SE9230
Data transfer rate (max): 6 Gbit/s
RAID levels: 0, 1, 10

System requirements

Windows operating systems supported: Yes

Packaging data

Quantity: 1
Feature: Drivers included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
