DeLOCK 89592 interface cards / adapter

DeLOCK 89592. Host interface: PCI, Output interface: RS-232, Expansion card standard: PCI 3.0. Product colour: Silver, Purpose: PC. Chipset: Sunix1989, Data transfer rate (max): 0.001152 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 51 mm, Depth: 120 mm, Height: 6.6 mm

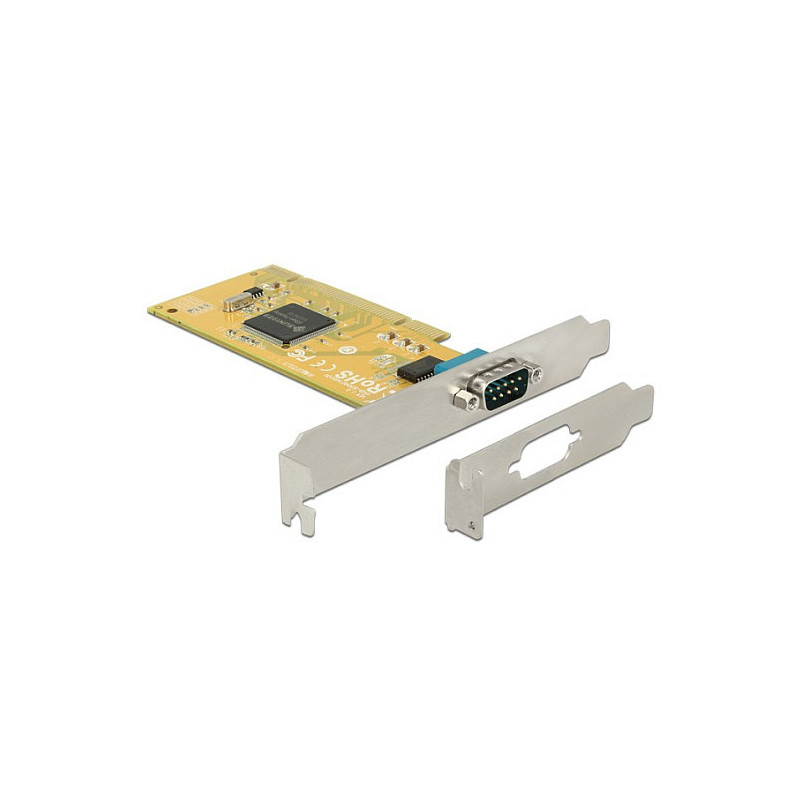

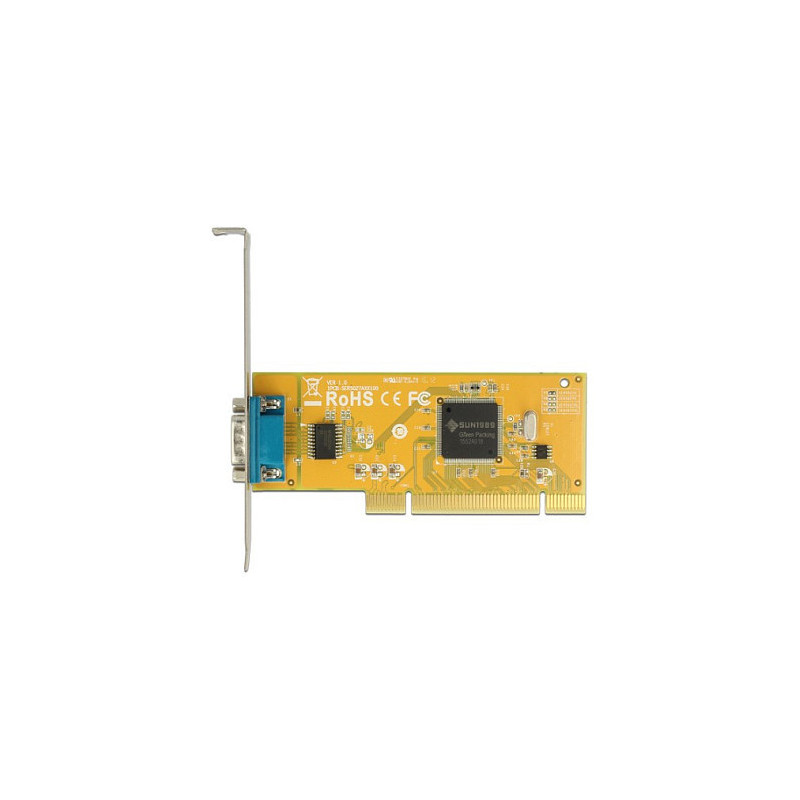

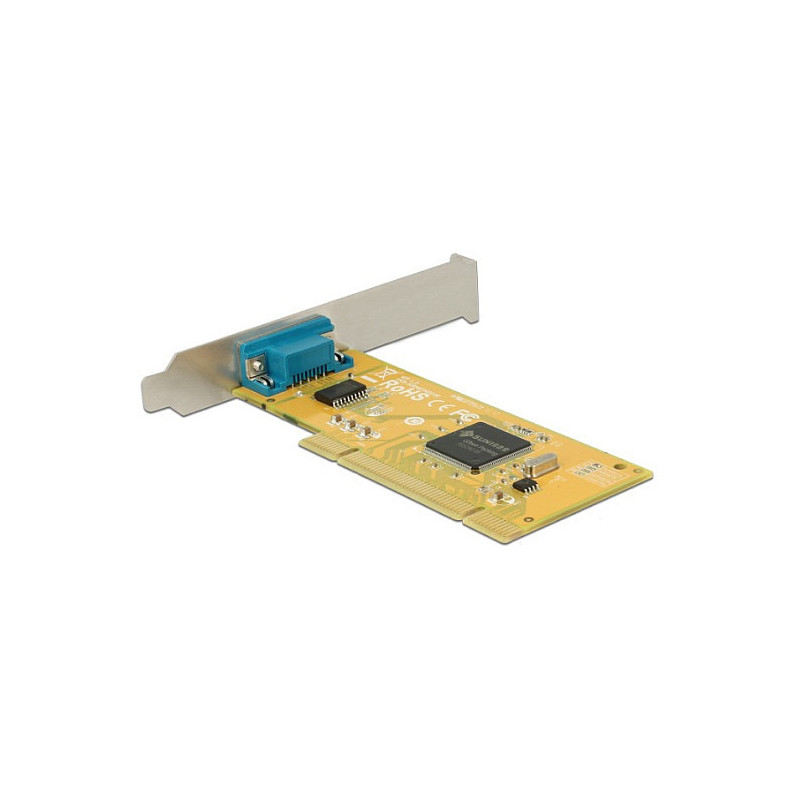

This PCI card by Delock expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI card can be also installed into a Mini-PC.

- Connectors: external: 1 x serial RS-232 DB9 male, internal: 1 x 32-Bit PCI standard 3.0.
- Chipset: SUN1989.
- Compliance with PCI 33 MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slots and 3.3 V & 5 V power.
- Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI.
- ±2 kV ESD protection for all serial signals.
- Data transfer rate up to 115.2 Kb/s.
- FIFO: 128 byte.
- Compatible with 16C950 UART.
- Operating temperature: 0 °C ~ 60 °C.
- Humidity: 5 ~ 95 %.

Ports & interfaces

Host interface: PCI
Output interface: RS-232
Expansion card standard: PCI 3.0
Serial ports quantity: 1
Serial interface type: RS-232

Design

Feature: Internal
Product colour: Silver
Purpose: PC

Features

Chipset: Sunix1989
Data transfer rate (max): 0.001152 Gbit/s
FIFO (First In, First Out): 128 B

Power

Feature: Low power mode

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1

Weight & dimensions

Width: 51 mm
Depth: 120 mm
Height: 6.6 mm

Packaging data

Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020

Other features

Feature: RS-232 interface
