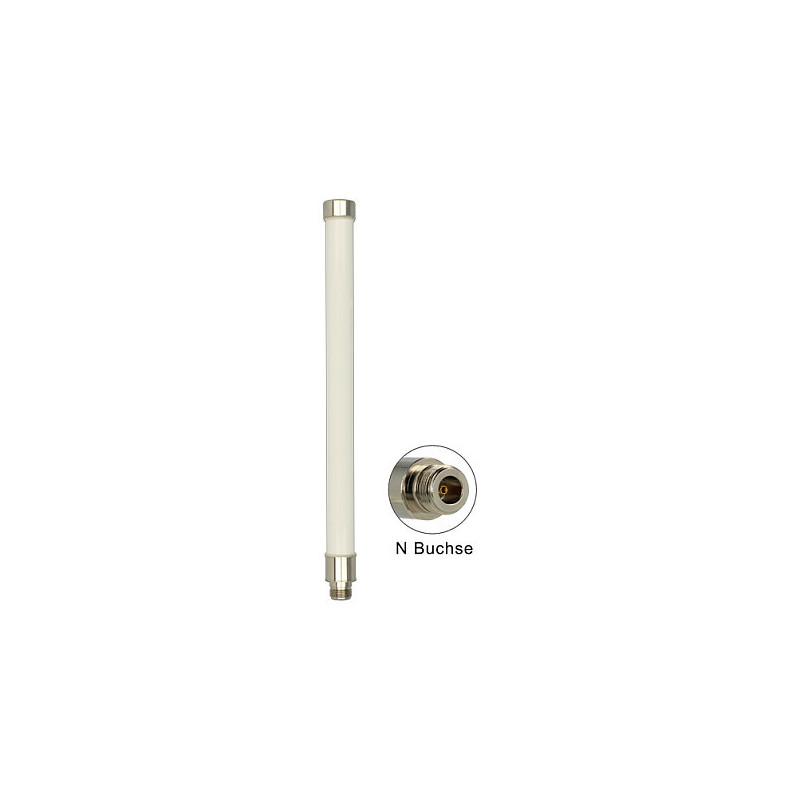

DeLOCK 89440 network antenna

DeLOCK 89440. Antenna gain level (max): 8 dBi, Frequency band: 2.4 - 2.4835 / 5.15 - 5.875 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 22.5 mm, Depth: 22.5 mm, Height: 282 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
This WiFi / WLAN antenna is used for transmitting and receiving WiFi signals in accordance with IEEE 802.11 ac/a/h/b/g/n.

Performance

Frequency band: 2.4 - 2.4835 / 5.15 - 5.875 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n
Impedance: 50 Ω
Horizontal beam width: 360°
Vertical beam width: 23°
Antenna gain level (max): 8 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: N-type
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): 1.5
Product colour: Silver, White
Housing material: Glass fibre
Power handling: 100 W
Purpose: Outdoor

Operational conditions

Operating temperature (T-T): -40 - 80 °C

Weight dimensions

Width: 22.5 mm
Depth: 22.5 mm
Height: 282 mm
Weight: 120 g

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)
