DeLOCK 89064 interface cards / adapter

DeLOCK PCI Express x4 Card to 2 x USB Type-C + 3 x USB Type-A - SuperSpeed USB 10 Gbps. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), SATA power connector type: SATA 15-pin. Country of origin: China. Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Server operating systems supported: Windows Server 2016. Package type: Box

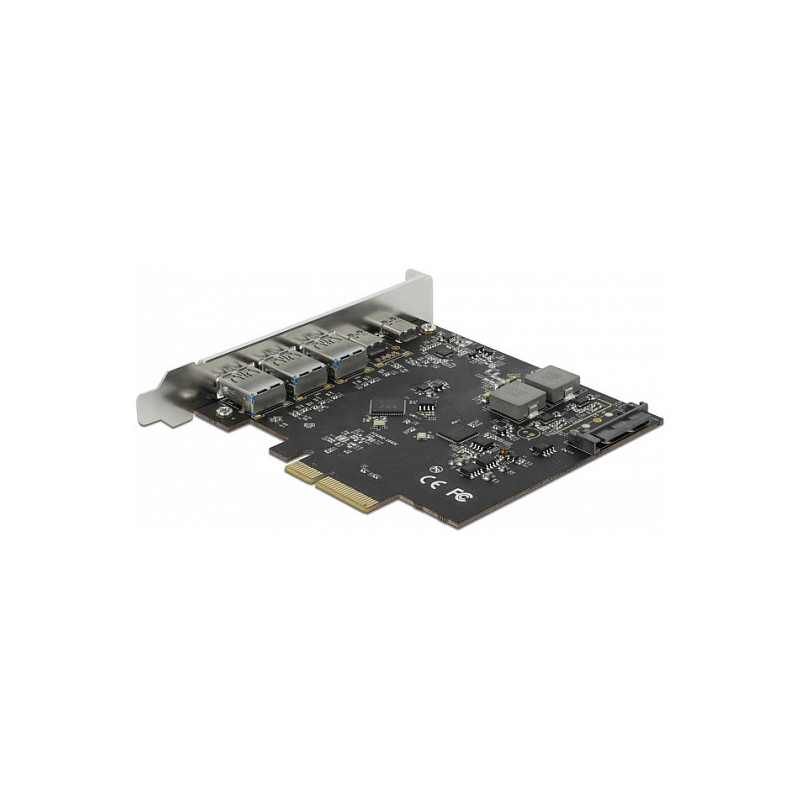

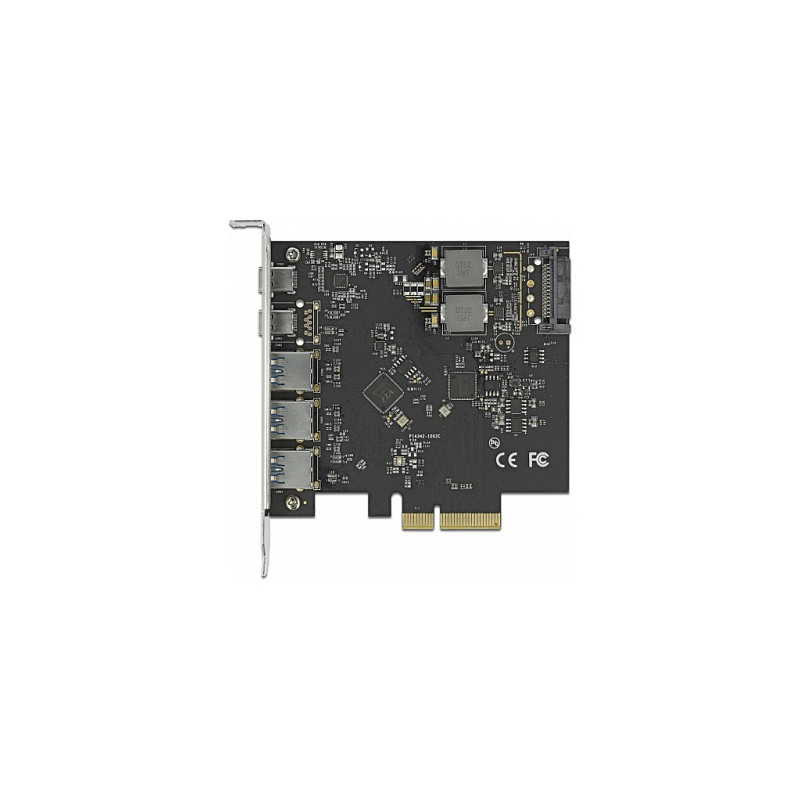

This PCI Express card by Delock expands the PC by five external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Sufficient ports - 2 x USB Type-C and 3 x USB Type-A
The PCIe card offers two USB-C port as well as three USB Type-A ports. Thus devices can be connected with 10 Gbps at each port.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
SATA power connector type: SATA 15-pin

Design

Feature: Internal
Country of origin: China

Features

Data transfer rate (max): 10 Gbit/s
Feature: UASP support

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Windows operating systems supported: Windows 10
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016

Packaging data

Quantity: 1
Feature: Manual
Package type: Box
