DeLOCK 89048 interface cards / adapter

DeLOCK PCI Express x4 Card to 4 x external USB 3.0 Quad Channel - Low Profile Form Factor. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Low-profile. Data transfer rate (max): 5 Gbit/s. Server operating systems supported: Windows Server 2016. Package type: Box

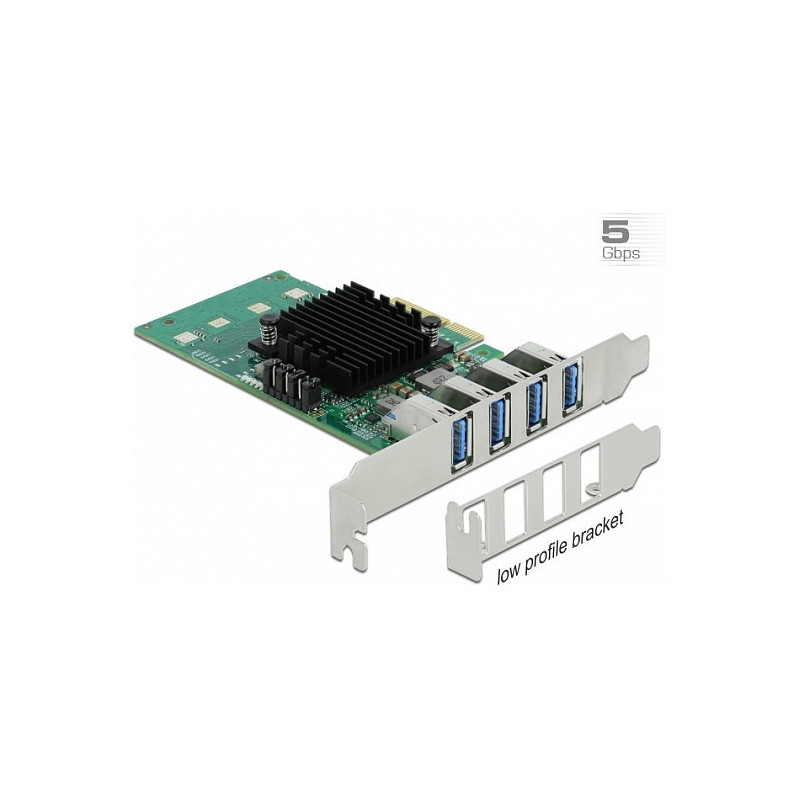

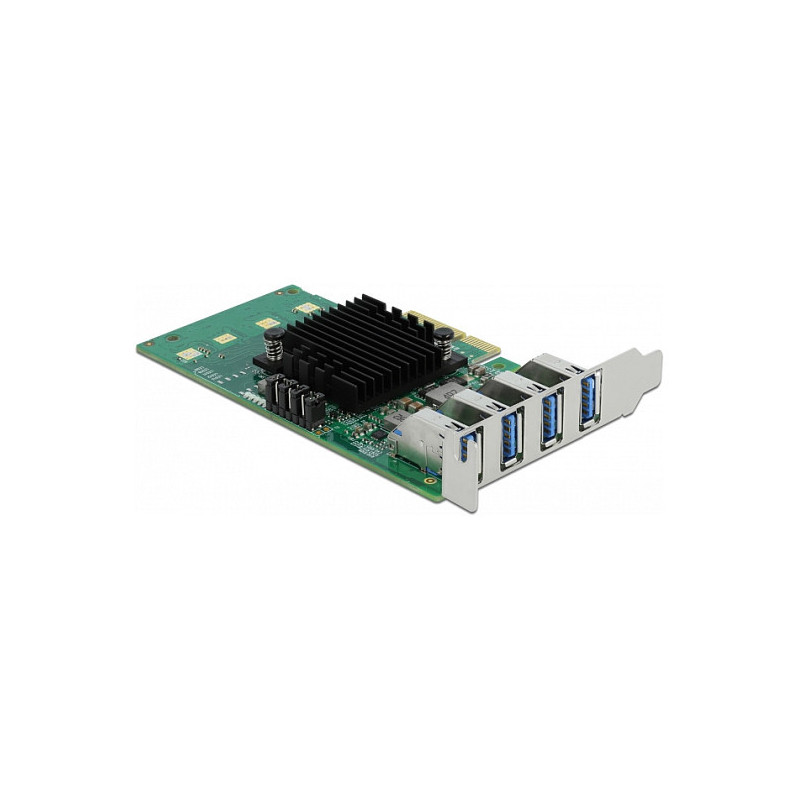

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.

No additional power supply
Due to the on-board 5 V DC power supply control, the PCIe card does not require any additional power supply.

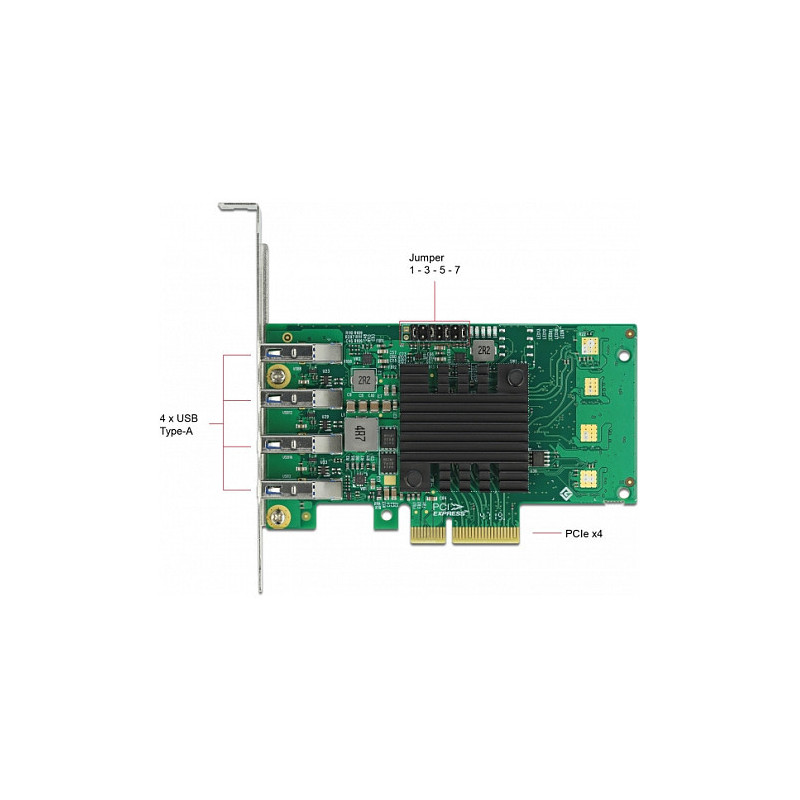

With the help of the four jumpers, the current can be limited to 900 mA or 1.5 A on each USB port.

Ports & interfaces

Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Design

Feature: Internal
LED indicators: Yes

Features

Data transfer rate (max): 5 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 60 °C

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016

Packaging data

Quantity: 1
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
