DeLOCK 89047 interface cards / adapter

DeLOCK PCI Express x4 Card to 1 x M.2 Key B + 1 x NVMe M.2 Key M - Low Profile Form Factor. Host interface: PCIe, Output interface: M.2, SATA, Expansion card form factor: Low-profile. Package type: Box

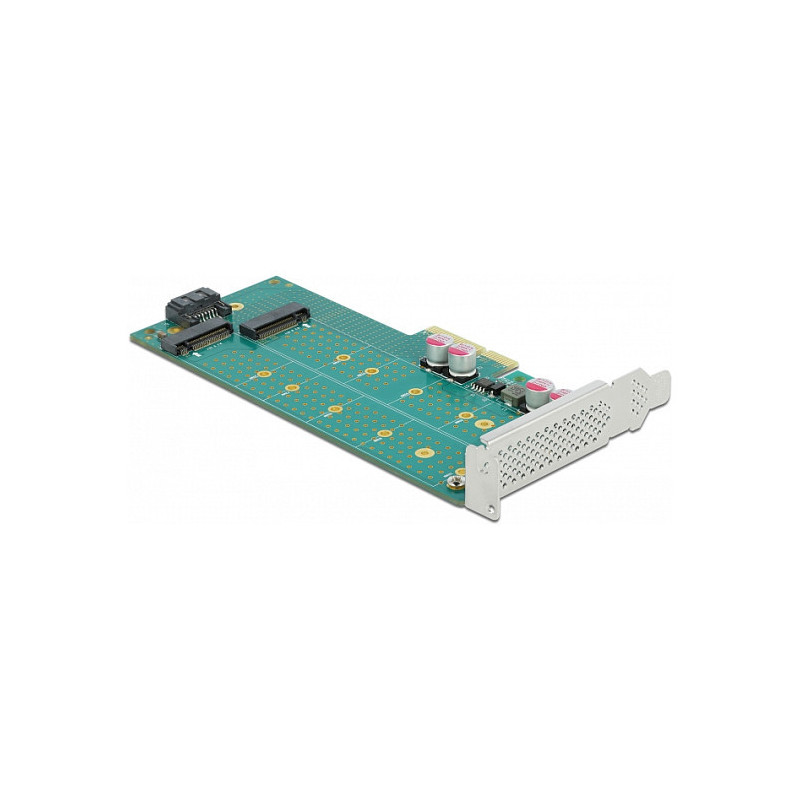

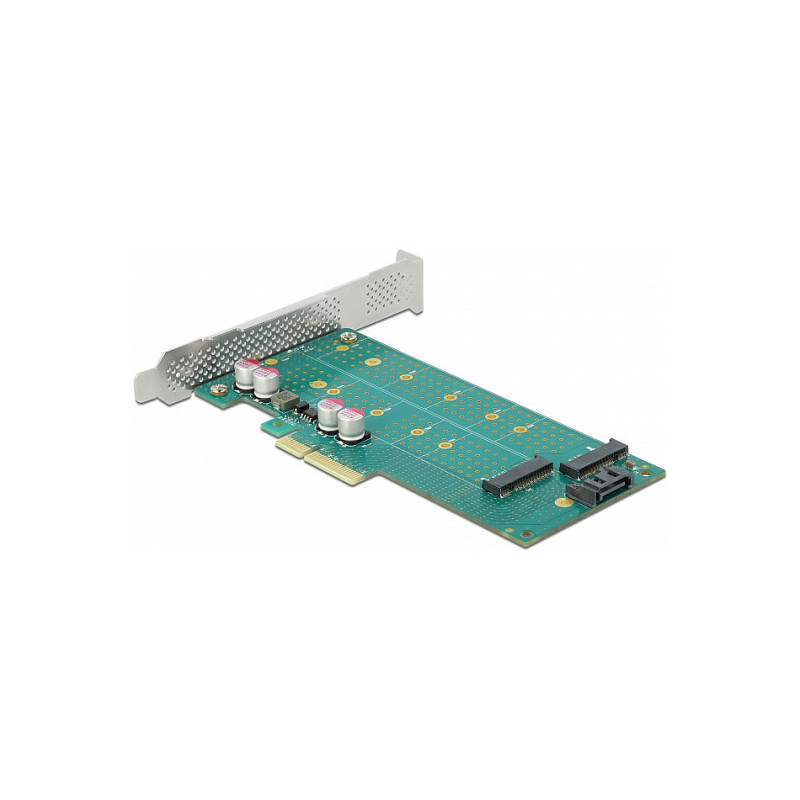

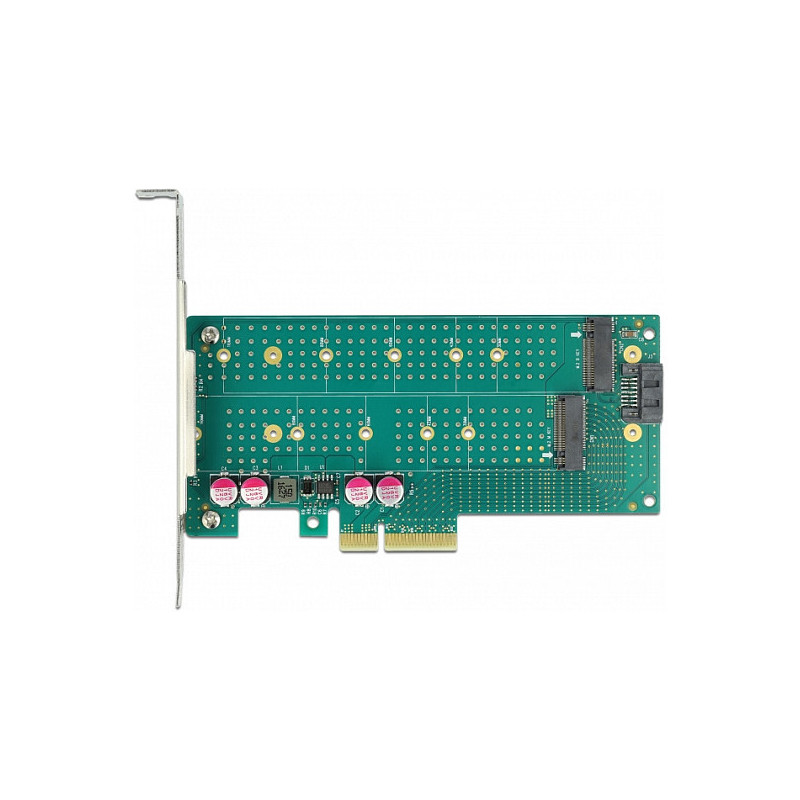

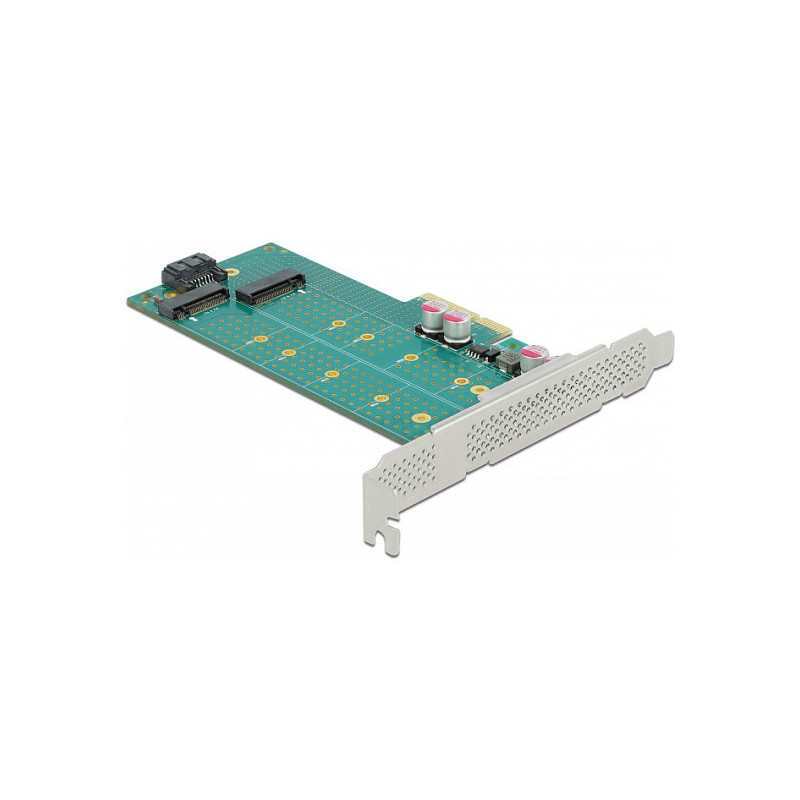

This PCI Express card by Delock expands the PC by two M.2 slots. One M.2 SATA module can be connected in format 22110, 2280, 2260, 2242, 2230 with this card and connected via SATA cable to the motherboard. Additionally, one M.2 PCIe module in format 22110, 2280, 2260, 2242, 2230 can be connected. Both slots can be used at the same time.

Ports & interfaces

Host interface: PCIe
Output interface: M.2, SATA

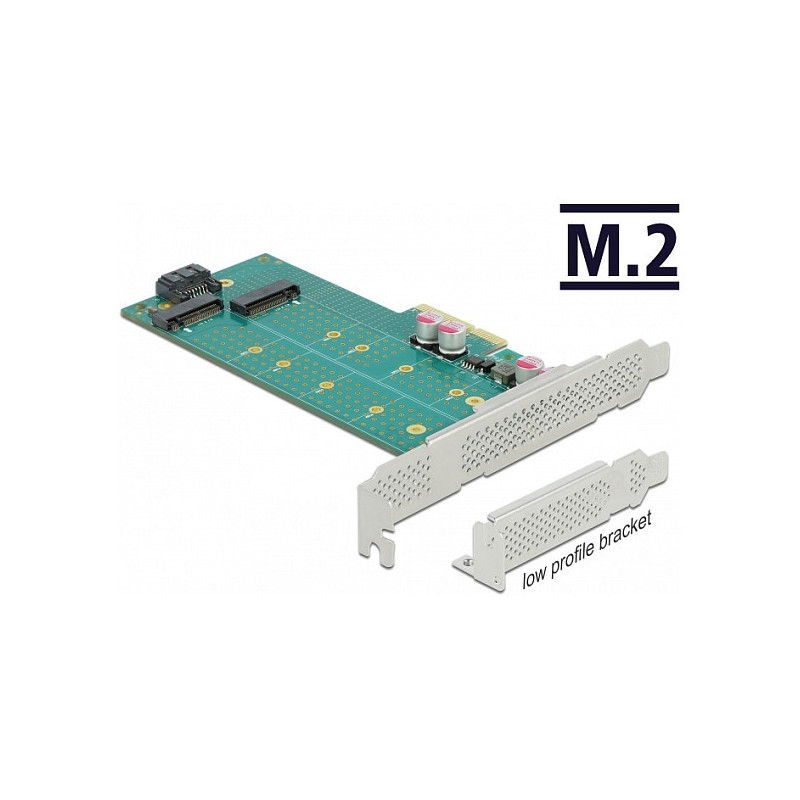

Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe
SATA revision: 3.0
Internal SATA ports quantity: 1
Number of M.2 (M) slots: 1
Number of M.2 (B) slots: 1

Design

Feature: Internal
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Packaging data

Feature: Manual
Package type: Box
