DeLOCK 89045 interface cards / adapter

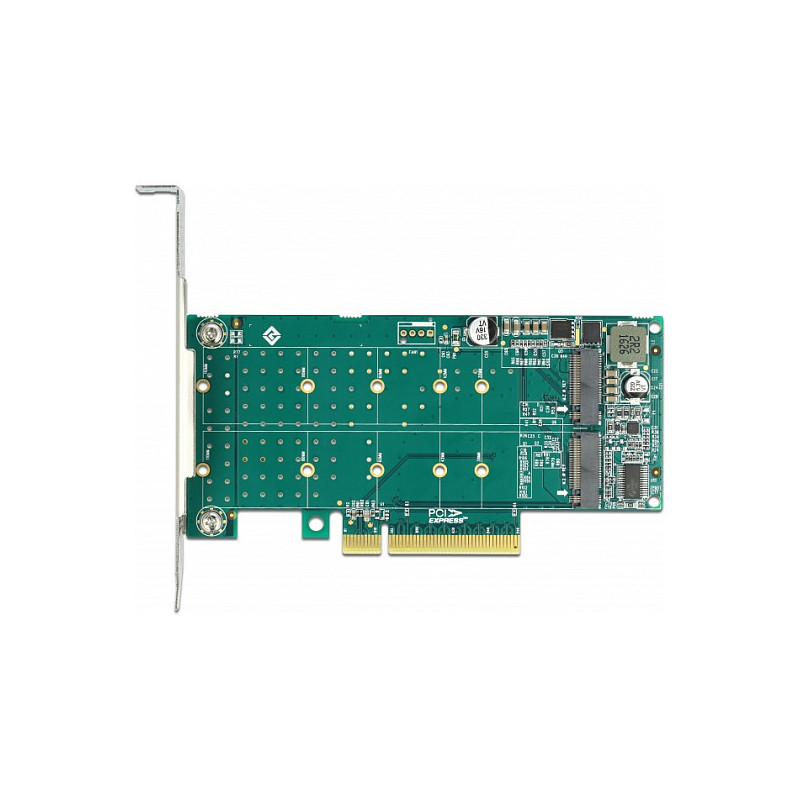

DeLOCK PCI Express x8 Card to 2 x internal NVMe M.2 Key M - Bifurcation - Low Profile Form Factor. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Low-profile. Package type: Box

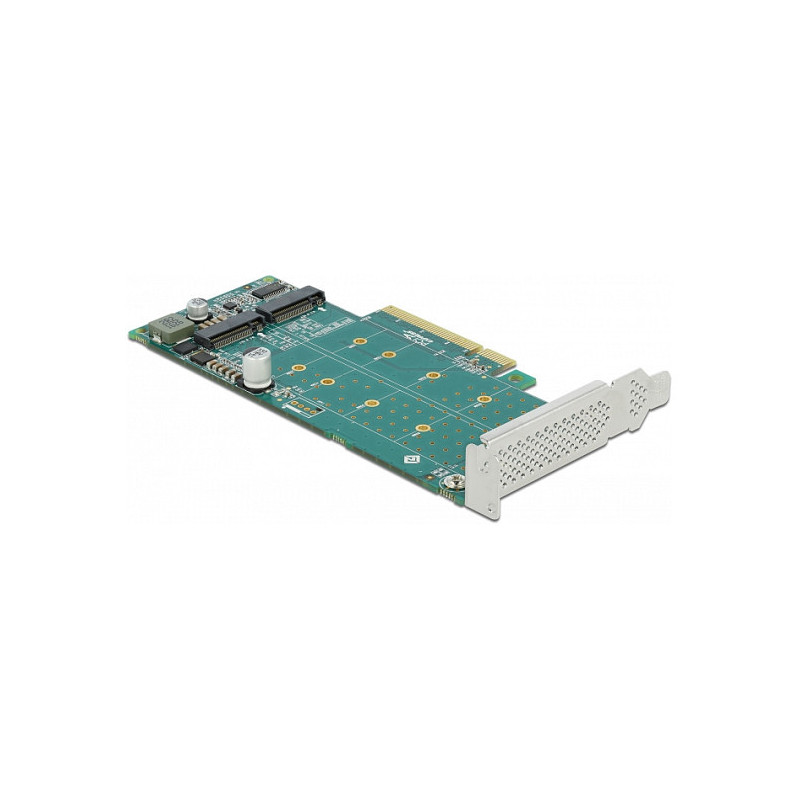

This PCI Express card by Delock expands the PC by two M.2 slots. M.2 SSDs in format 22110, 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card form factor: Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe
Number of M.2 (M) slots: 2

Design

Feature: Internal

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Packaging data

Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
