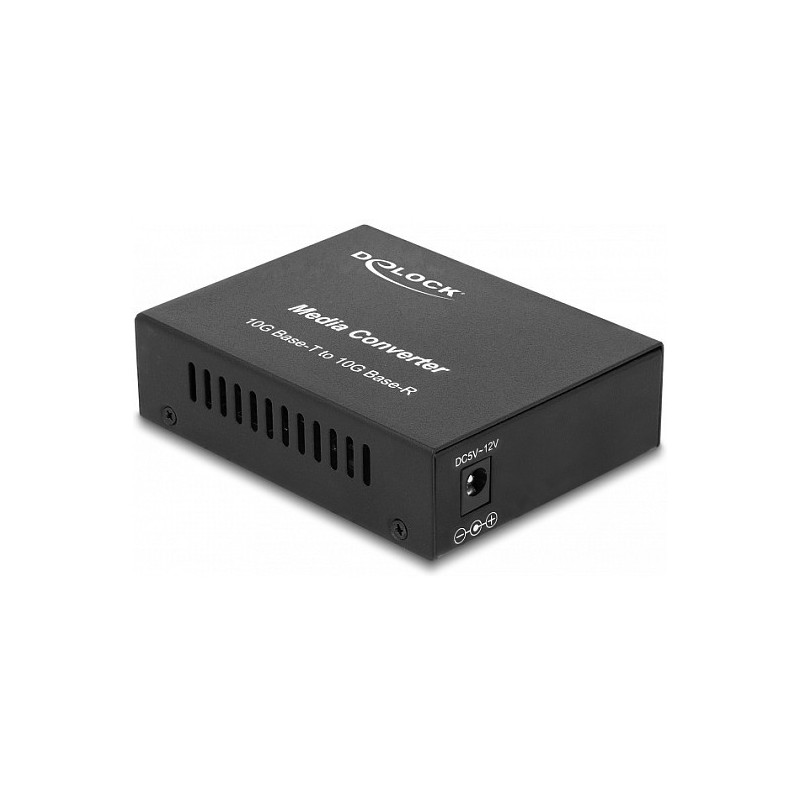

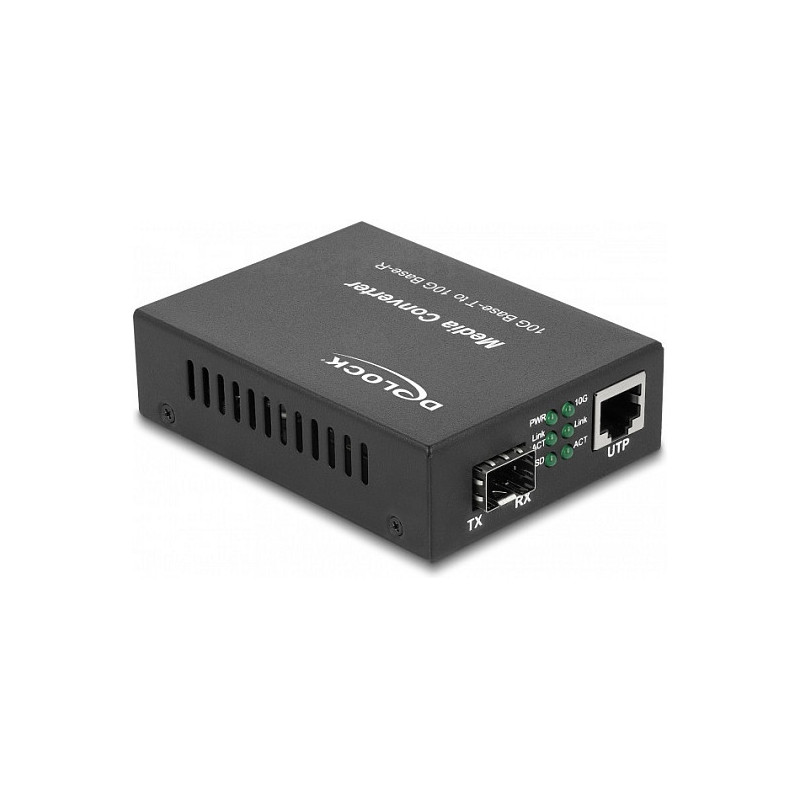

DeLOCK 86861 network media converter

DeLOCK Media Converter 10GBase-R SFP+ to 10GBase-T RJ45. Maximum data transfer rate: 10000 Mbit/s, Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s. LED indicators: Status, Product colour: Black, Housing material: Metal. Fiber optic connector: SFP+, Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.4 A. Width: 71 mm, Depth: 94 mm, Height: 26 mm

This 10 Gigabit Ethernet Media converter by Delock can be used to connect different media. In the SFP slot, various optional SFP+ modules up to 10 Gbps can be used.

NBASE-T for higher speed
The RJ45 port is equipped with NBASE-T for higher speeds. This allows for up to 10 Gbps data transfer rate with traditional networking cables. The best possible transfer rate is set automatically.

Network

Maximum data transfer rate: 10000 Mbit/s
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s
Fiber ethernet cabling technology: 10GBASE-R

Features

LED indicators: Status
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+
Feature: DC-in jack

Power

Input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.4 A
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 5 W

Weight & dimensions

Width: 71 mm
Depth: 94 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): 0 - 55 °C

Packaging content

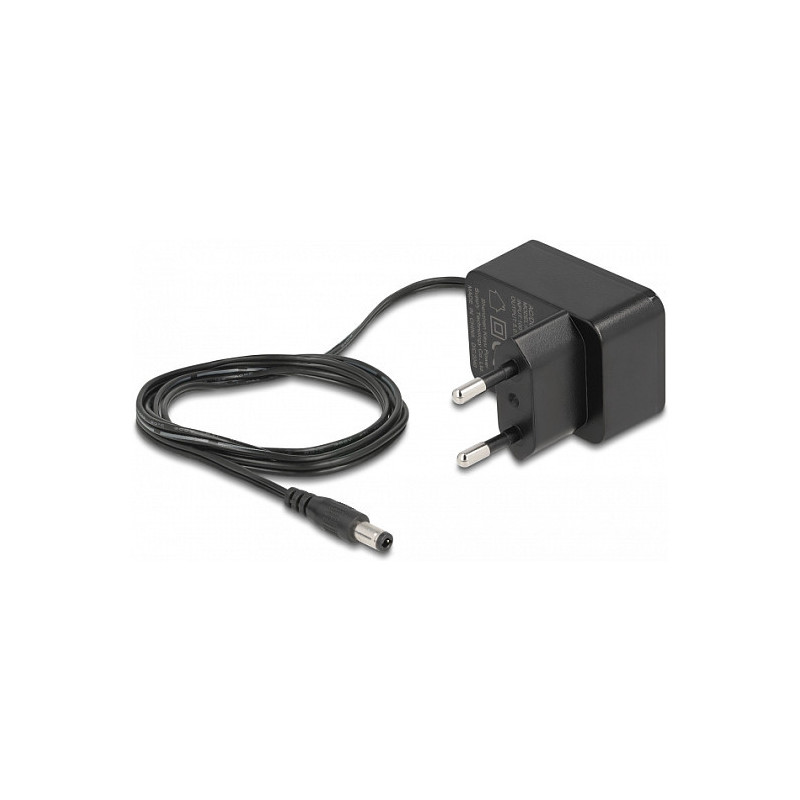

Feature: AC adapter included
Feature: Manual

Packaging data

Package type: Box
