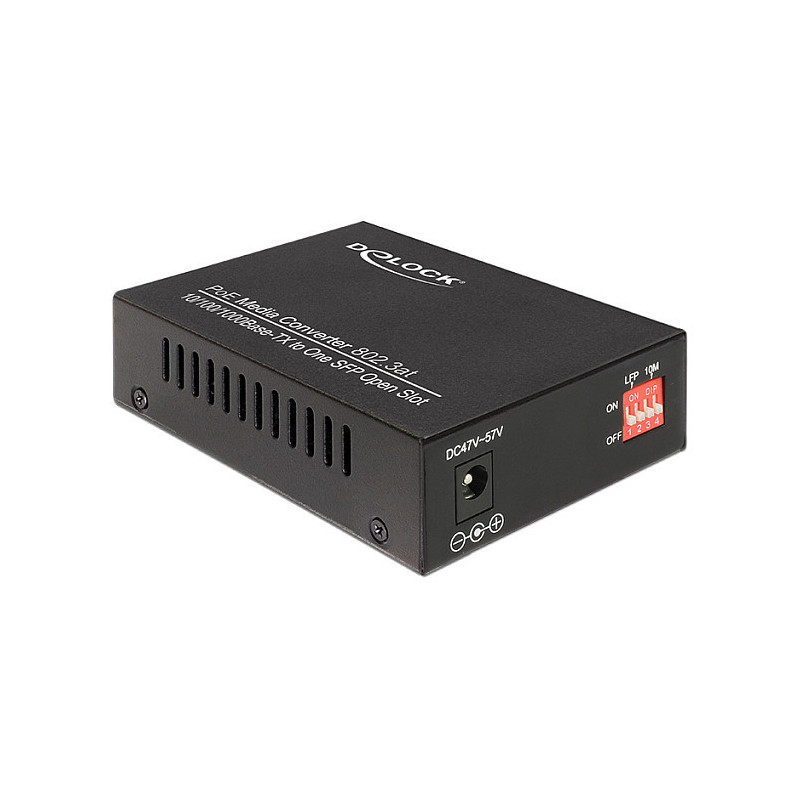

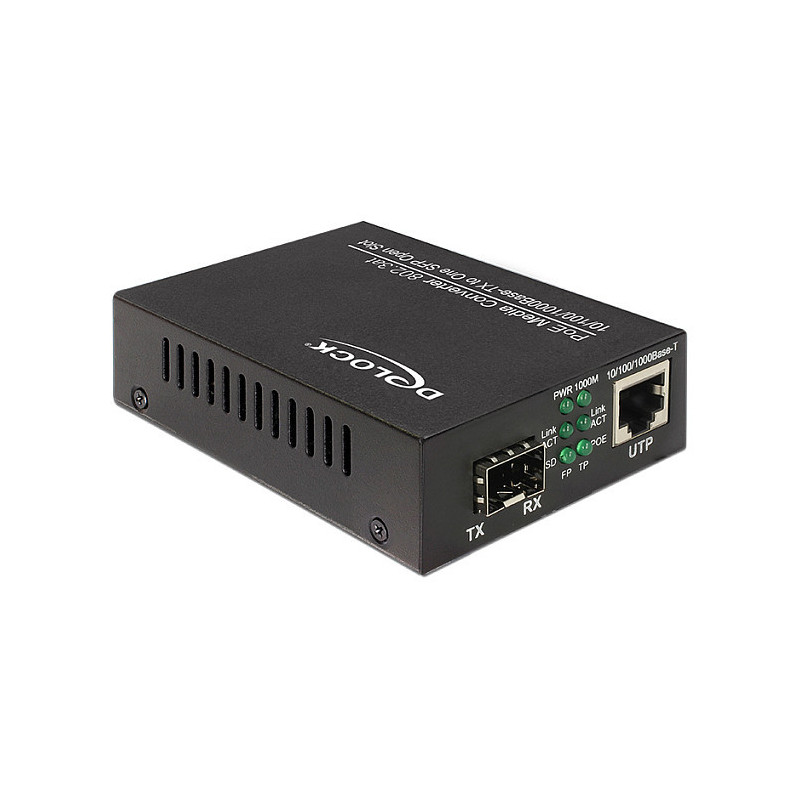

DeLOCK 86180 network media converter

DeLOCK 86180. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z. LED indicators: Status, Product colour: Black, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 2 A. Width: 95 mm, Depth: 71 mm, Height: 26 mm

This Gigabit Ethernet Media Converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, various optional 1 Gb/s SFP modules by Delock can be used. The RJ45 port supports Power over Ethernet according to IEEE802.3af / 802.3at, so PoE-enabled devices, such as an IP camera or a PoE splitter, can be supplied with power via the network cable.

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z

Features

LED indicators: Status
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber optic connector: SFP
Feature: DC-in jack

Power

Input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2 A
Output voltage: 48 V
Output current: 1.25 A
Feature: Power over Ethernet (PoE)

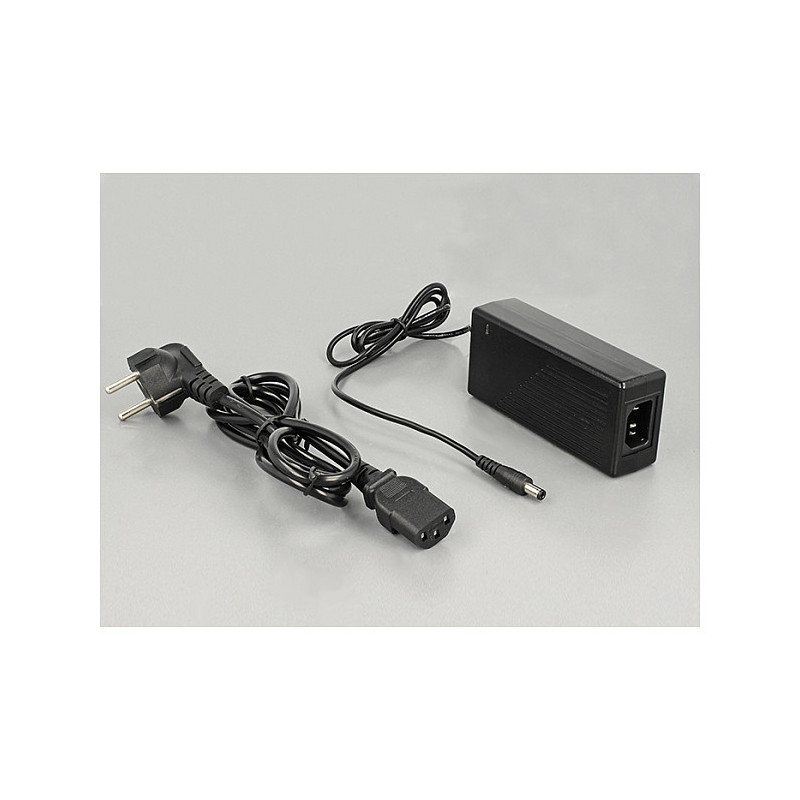

Feature: External power adapter

Weight & dimensions

Width: 95 mm
Depth: 71 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Packaging content

Feature: Manual

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 85176990
