DeLOCK 86110 network media converter

DeLOCK 86110. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 100Base-X, 1000Base-X. Product colour: Black, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.2 A. Width: 70 mm, Depth: 94 mm, Height: 26 mm

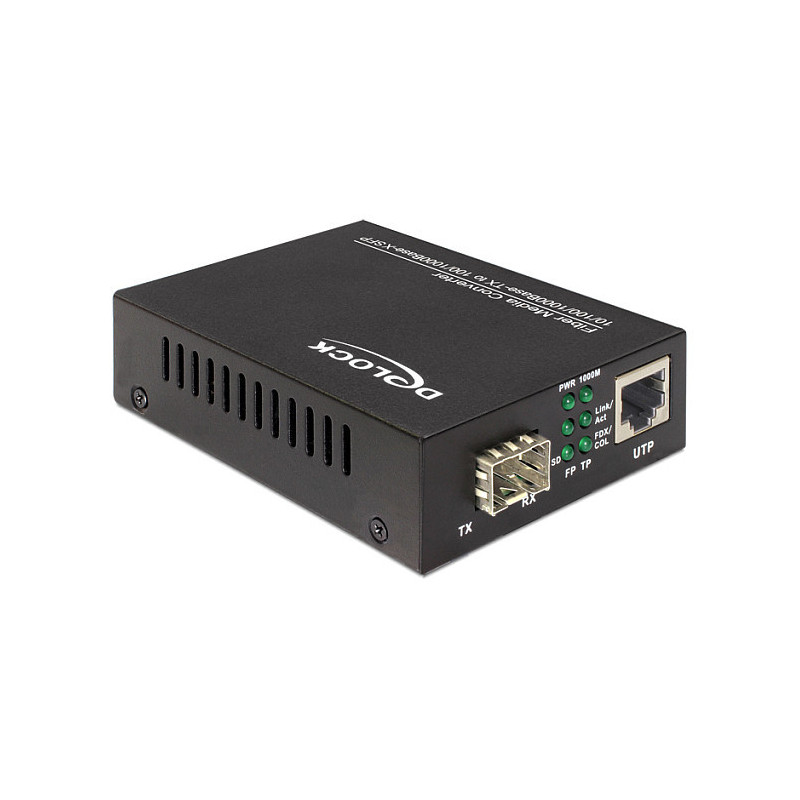

This Gigabit Ethernet Media Converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, an optional 100 Mb/s or 1 Gb/s SFP module can be used.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-T, 1000Base-T
Converter output interface: 100Base-X, 1000Base-X
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Ethernet LAN data rates: 10,100,1000 Mbit/s

Features

LED indicators: Yes
Product colour: Black
Housing material: Metal

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

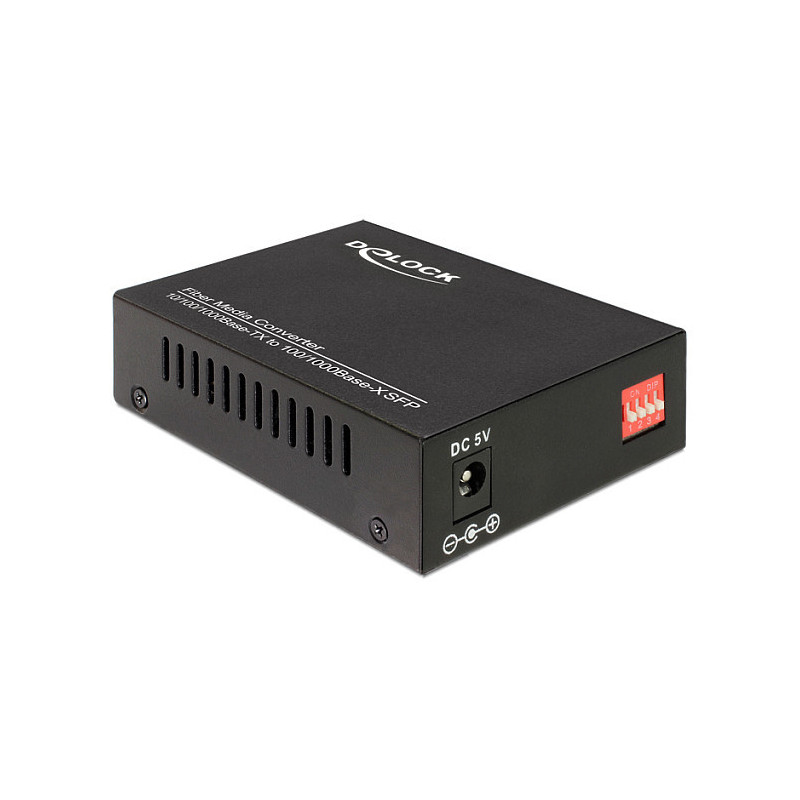

Feature: DC-in jack

Power

Input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.2 A
Output voltage: 5 V
Output current: 1 A
Power consumption (typical): 2.5 W
Feature: External power adapter

Weight & dimensions

Width: 70 mm
Depth: 94 mm
Height: 26 mm

Operational conditions

Operating temperature (T-T): 0 - 55 °C

Packaging content

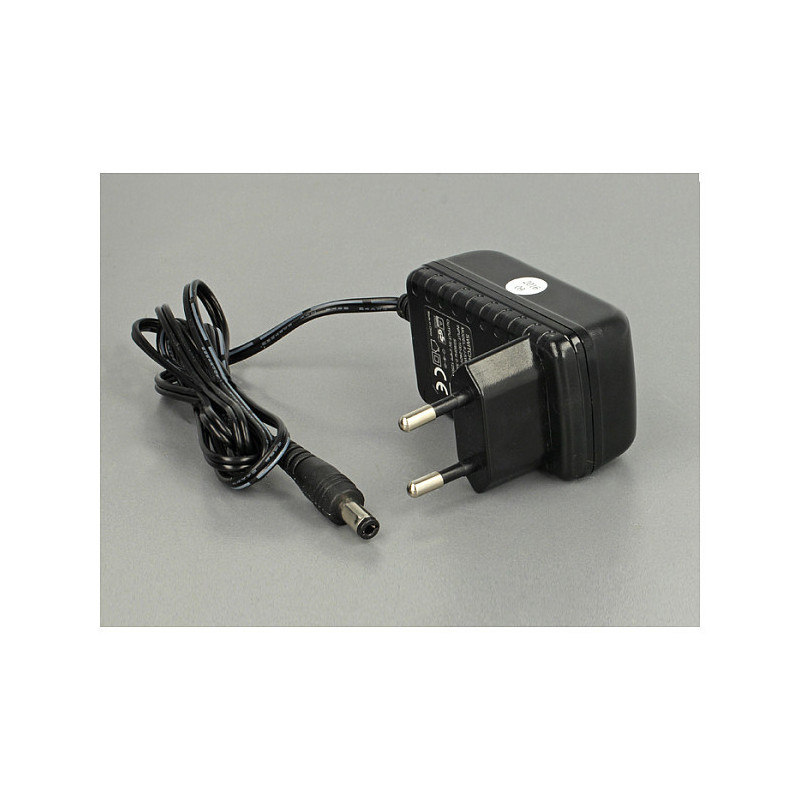

Feature: AC adapter included
Feature: Manual
