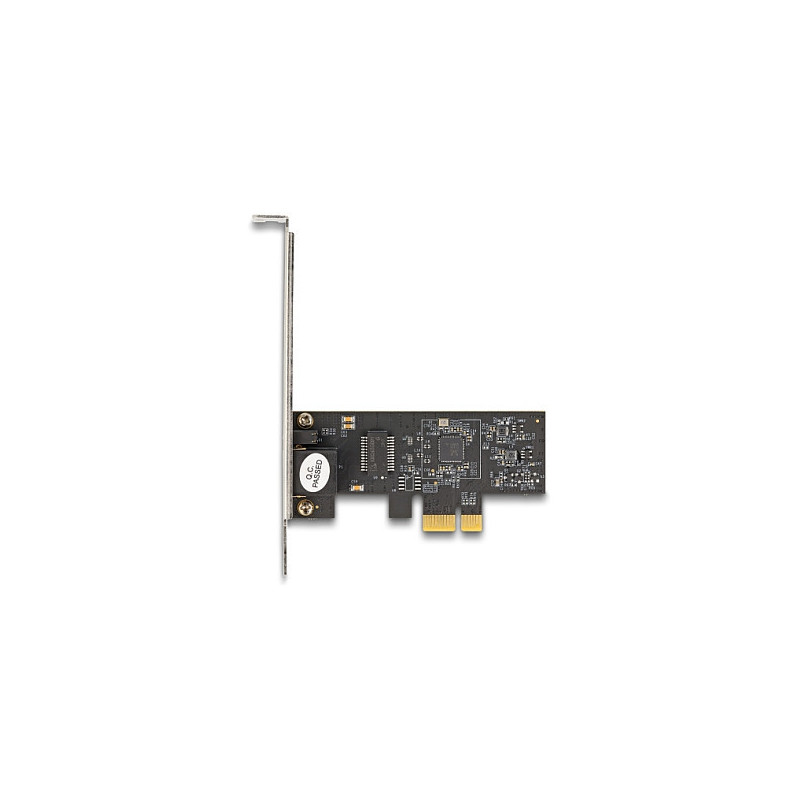

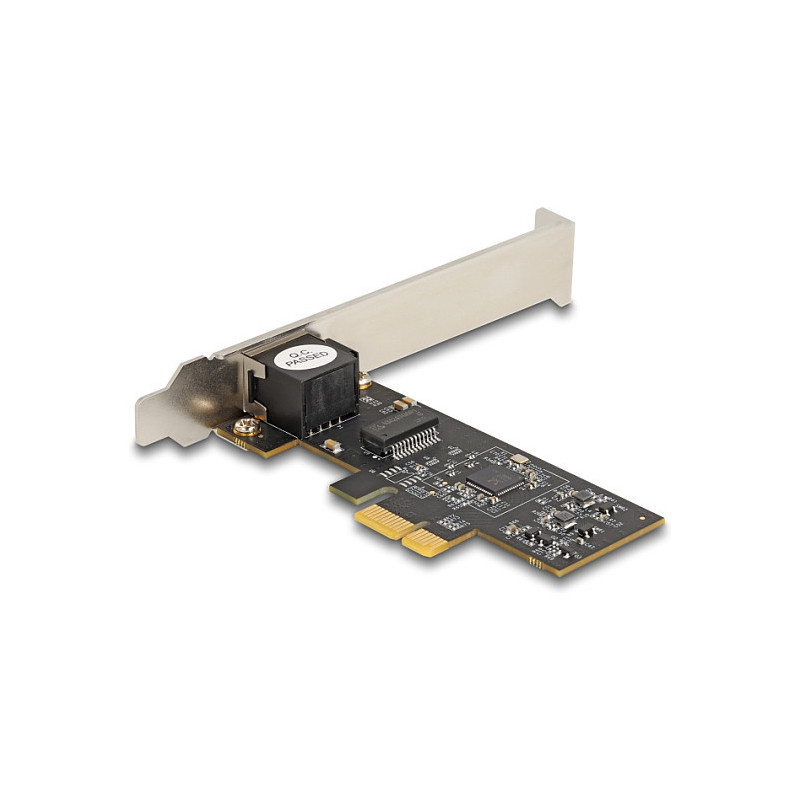

DeLOCK 81260 network card

DeLOCK PCI Express x1 Card to 1 x RJ45 5 Gigabit LAN RTL8126. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s

The PCI Express card by Delock offers one network port with a data transfer rate up to 5 Gbps.


NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps, 2,5 Gbps and 5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 16000

Design

Component for: PC/Server
Feature: Internal
Chipset: Realtek RTL8126
LED indicators: Activity, Link

System requirements

Windows operating systems supported: Yes

Packaging content

Feature: Mounting brackets included
Feature: Manual
