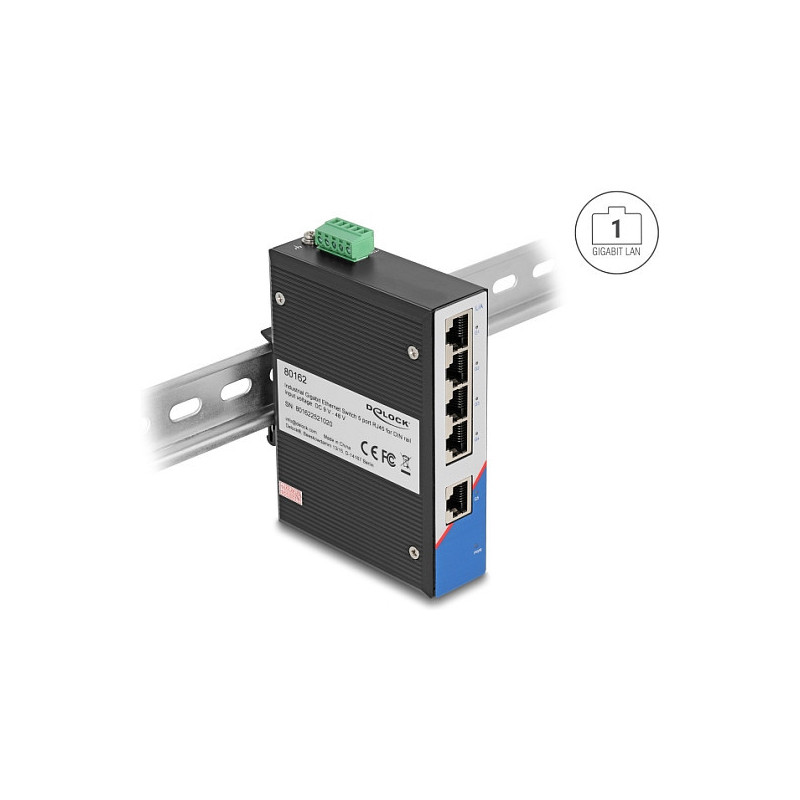

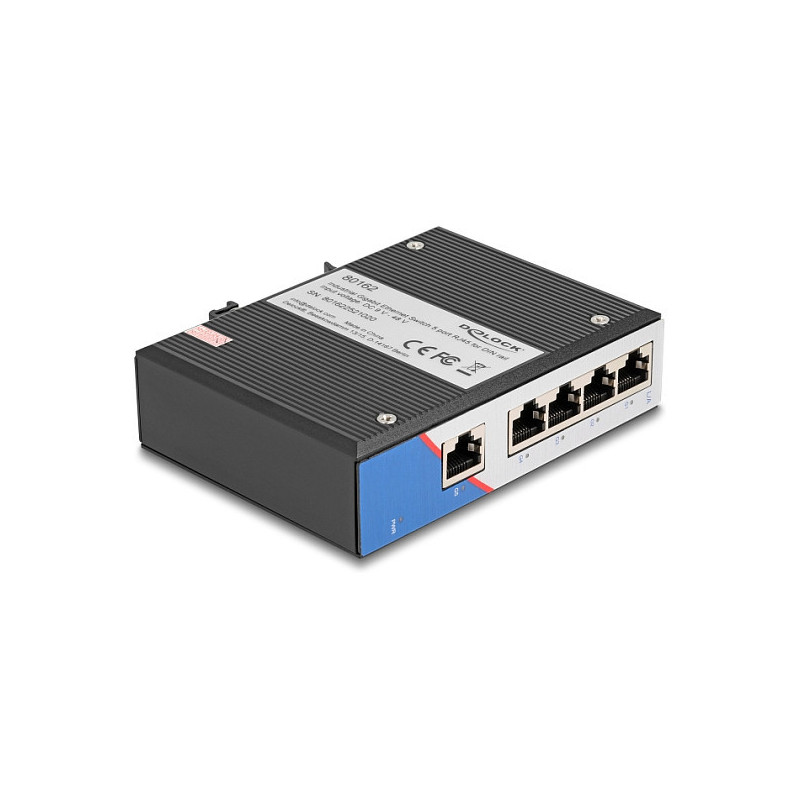

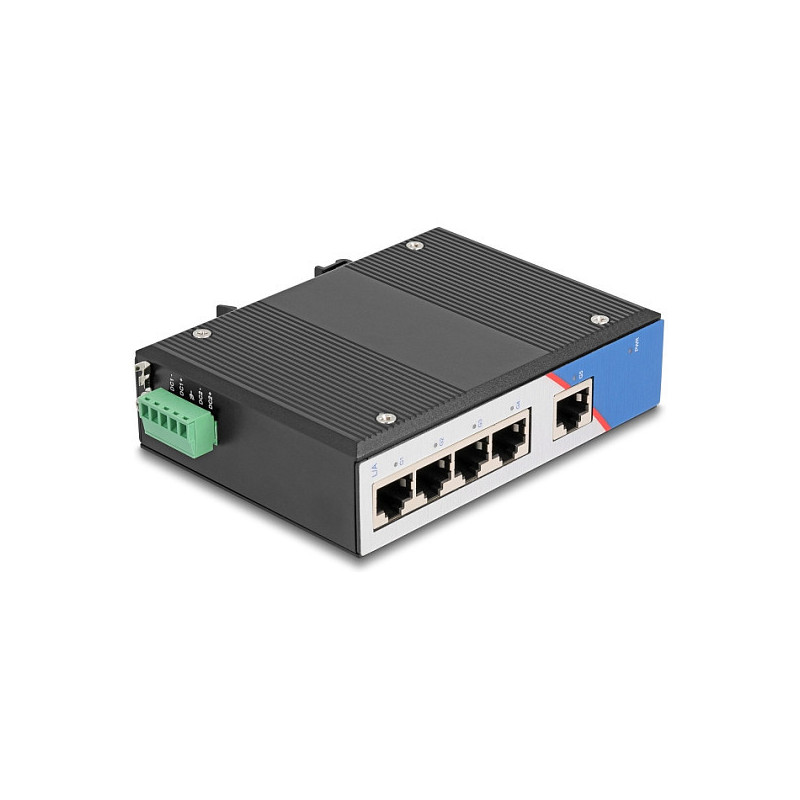

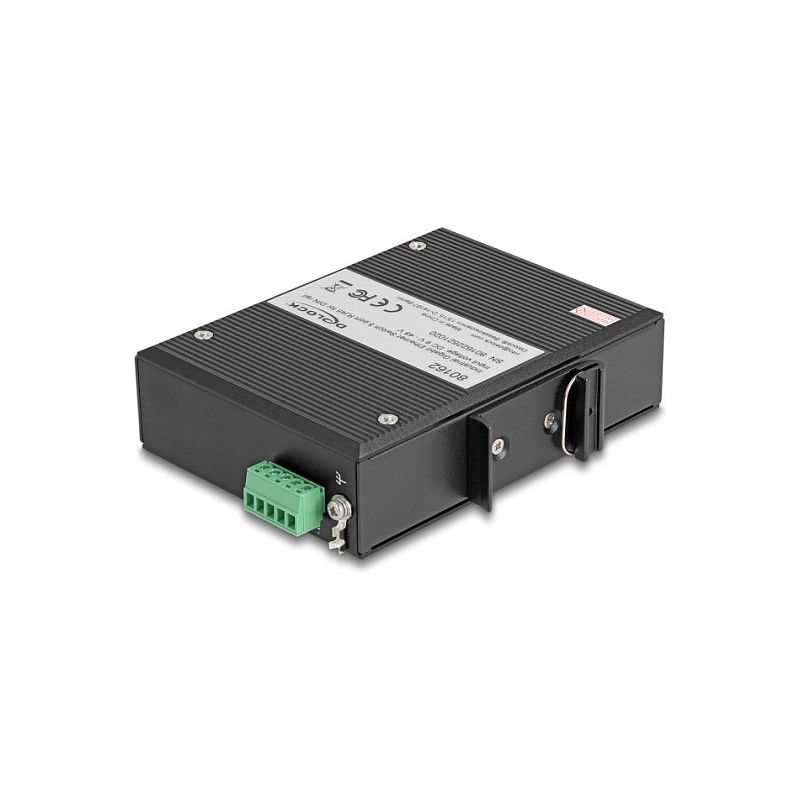

DeLOCK 80162 network switch

DeLOCK 80162. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Power connector: Terminal block (5-pin). Form factor: DIN rail

This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components.

Redundant power supply with 9 V to 48 V
The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Power connector: Terminal block (5-pin)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 1000BASE-T
Ethernet LAN data rates: 10,100,1000 Mbit/s

Design

Form factor: DIN rail
Product colour: Black
Housing material: Metal
LED indicators: Status
International Protection (IP) code: IP40
Feature: DIN rail mounting

Performance

Feature: Fanless

Power

Power source: DC
Input voltage: 9 - 48 V
Power consumption (max): 2.1 W

Operational conditions

Operating temperature (T-T): -40 - 85 °C

Weight & dimensions

Width: 33 mm
Depth: 116 mm
Height: 85 mm

Packaging content

Feature: Manual

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)
Certification: IEC61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32

Logistics data

Country of origin: China
