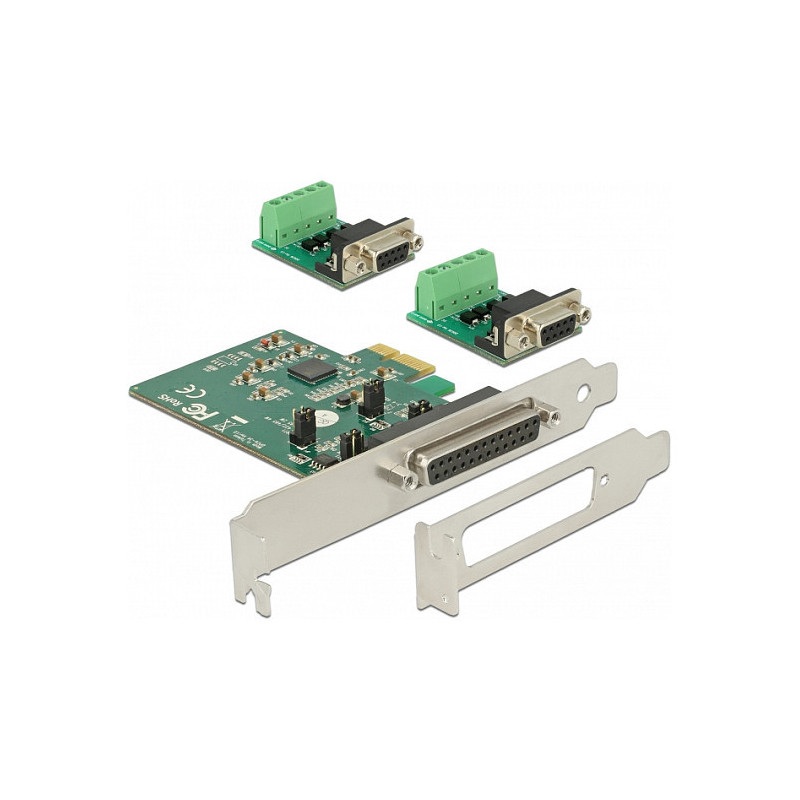

DeLOCK 65841 interface cards / adapter

DeLOCK 65841. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Product colour: Black, Purpose: PC. Chipset: Exar 17V352, Data bits: 5, 6, 7, 8, Stop bits: 1, 1.5, 2. Server operating systems supported: Windows Server 2012 R2, Windows Server 2016. Width: 91 mm, Depth: 12 mm, Height: 64 mm

This RS-422/485 PCI Express card by Delock is suitable for industrial fieldbus systems, machine controllers, converters, measurement data acquisition etc. With its extensive overvoltage protection and the extended operating temperature range, this card is also highly suitable for use in demanding environments. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card form factor: Low-profile
Expansion card standard: PCIe 2.0
Serial interface type: RS-422/485

Design

Feature: Internal
Product colour: Black
Purpose: PC

Features

Chipset: Exar 17V352
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Full duplex

Operational conditions

Operating temperature (T-T): -30 - 75 °C
Storage temperature (T-T): 5 - 95 °C

System requirements

Windows operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2016

Weight & dimensions

Width: 91 mm
Depth: 12 mm
Height: 64 mm

Packaging data

Feature: Drivers included
Feature: Manual
