DeLOCK 64197 interface cards / adapter

DeLOCK Combo Converter for M.2 NVMe PCIe or SATA SSD with USB 3.2 Gen 2. Host interface: USB Type-A, Output interface: M.2, Host interface gender: Male. Product colour: Black. Chipset: Realtek RTL9210B, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64. Width: 22 mm, Depth: 110 mm, Height: 6 mm

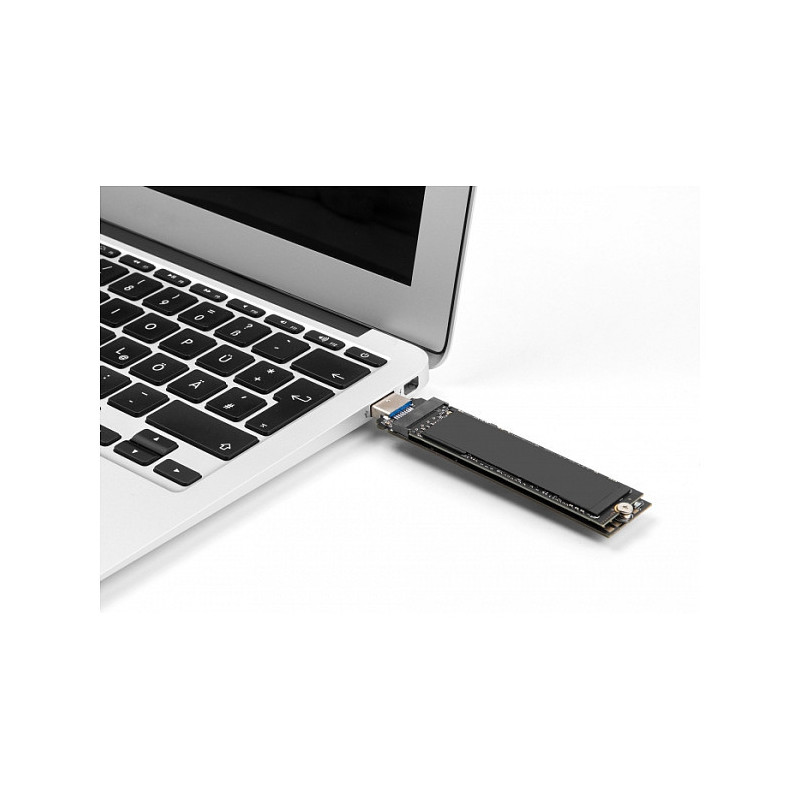

This converter by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop.

Combo converter
The big advantage of this Delock M.2 converter is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the converter. The memory is automatically recognized by the chipset and can then be used.

Ideal test equipment
Due to the USB-A connector and the direct installation of the SSD on the board, without enclosure, the Delock converter is most suitable as test equipment.

Ports & interfaces

Host interface: USB Type-A
Host interface gender: Male
Output interface: M.2
Feature: NVMe
Number of M.2 (M) slots: 1

Design

Product colour: Black
LED indicators: Yes

Features

Feature: Built-in processor
Chipset: Realtek RTL9210B
Data transfer rate (max): 10 Gbit/s
Feature: Plug and Play

Power

Feature: USB powered

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 22 mm
Depth: 110 mm
Height: 6 mm

Packaging data

Quantity per pack: 1 pc(s)
Feature: Manual
Package type: Hanging box
