DeLOCK 64177 storage drive docking station

DeLOCK M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone function. Storage media type: SSD, Storage drive interface: M.2, Storage drive sizes supported: M.2. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Maximum data transfer rate: 10 Gbit/s. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.6 A. Windows operating systems supported: Windows 10, Windows 8.1

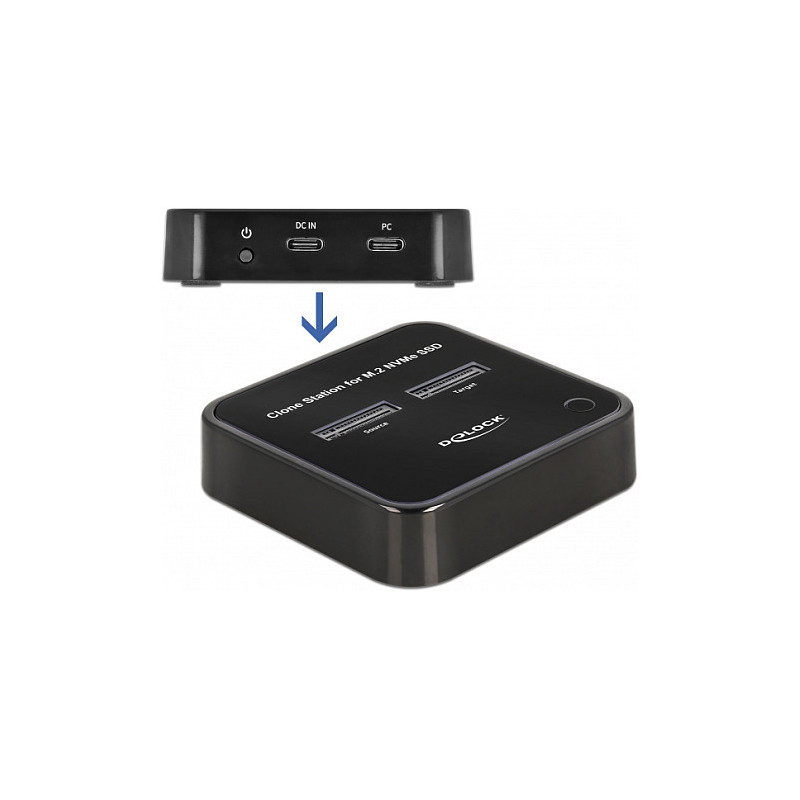

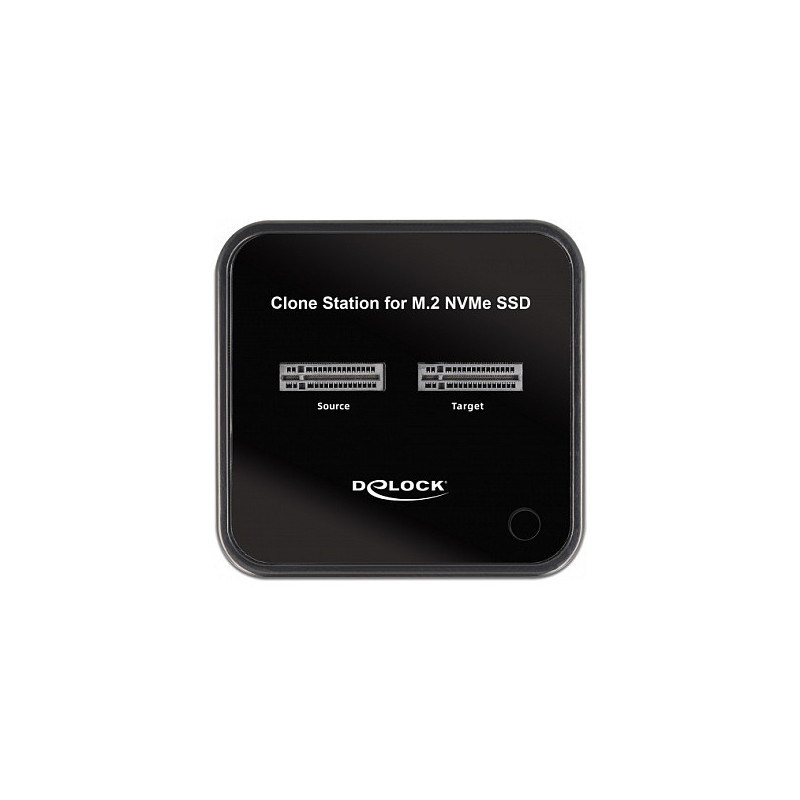

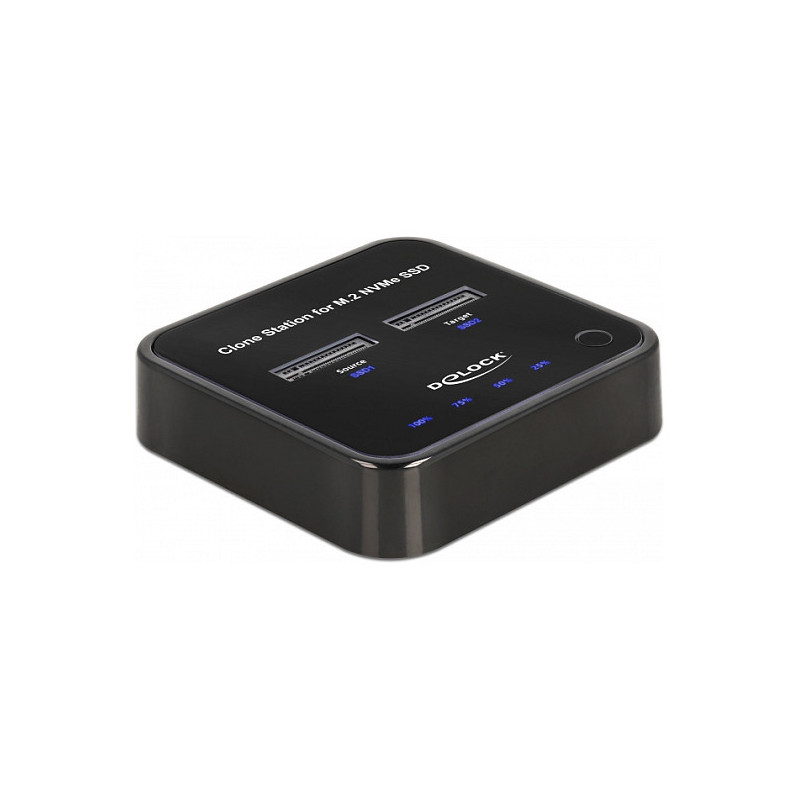

This M.2 docking station by Delock enables the installation of two M.2 PCIe NVMe SSDs and it can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-C™ port.

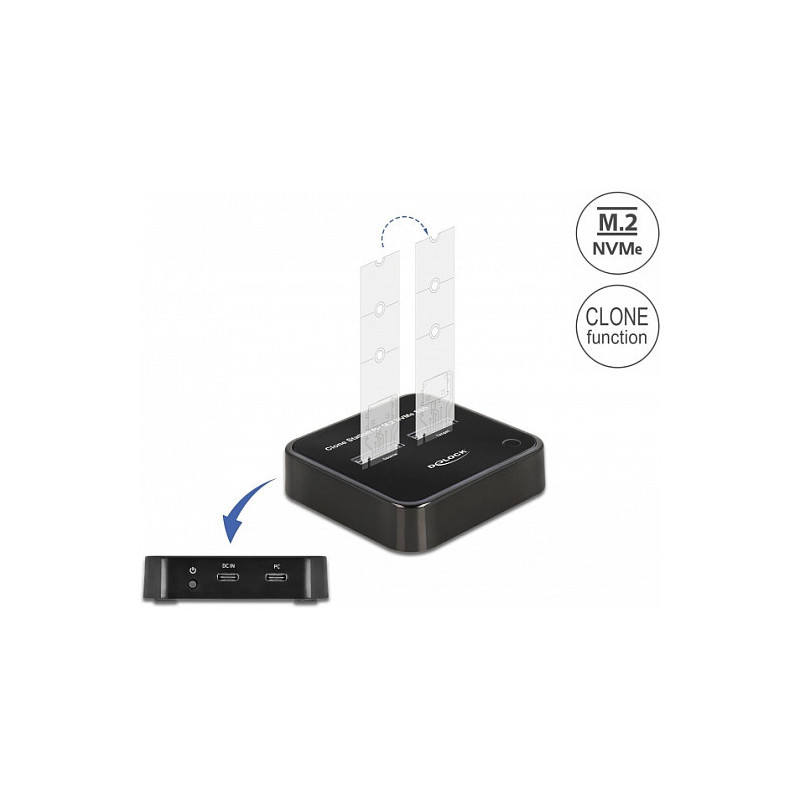

M.2 PCIe SSD clone function
The clone function enables to copy the content of one SSD to another without using a PC.

Ideal test equipment
The memory is simply plugged into the robust housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly.

Hard drive

Storage media type: SSD
Storage drive interface: M.2
Storage drive sizes supported: M.2
Number of storage drives supported: 2

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 2

Features

Product colour: Black
Maximum data transfer rate: 10 Gbit/s
Feature: Plug and Play
Feature: Hot-Plug support
LED indicators: Yes
Feature: On/off switch
Feature: UASP support

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.6 A
Output voltage: 5 V
Output current: 3 A

Software

Windows operating systems supported: Windows 10, Windows 8.1
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 72 mm
Depth: 79 mm
Height: 18 mm

Packaging data

Package type: Box

Packaging content

Feature: AC adapter included

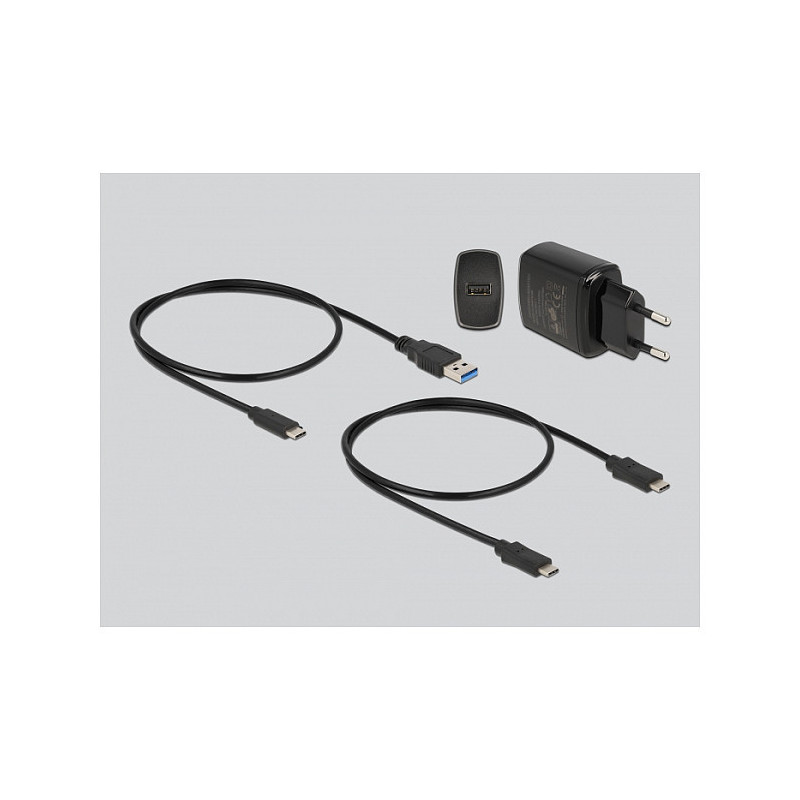

Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: Manual

Other features

Chipset: Asmedia ASM2362
Feature: Backup button
