DeLOCK 64077 interface cards / adapter

DeLOCK 64077. Host interface: U.2, Output interface: M.3. Product colour: Red, Silver, Purpose: PC, Cooling type: Passive. Data transfer rate (max): 32 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64. Width: 70 mm, Depth: 130 mm, Height: 7 mm

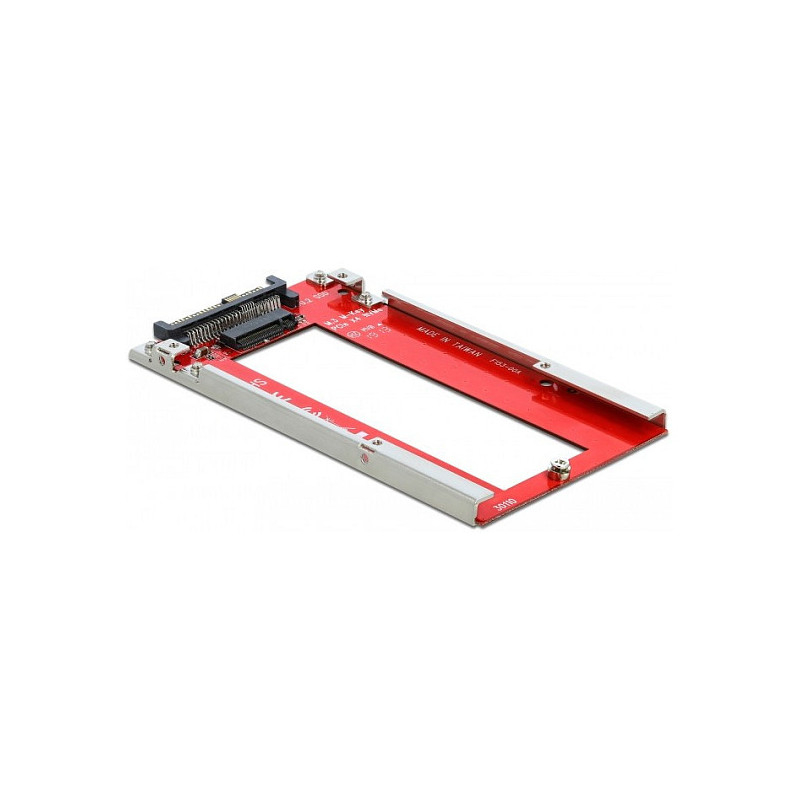

This converter by Delock enables the connection of an M.3 / NF1 (NGSFF) SSD. One M.3 module with 110 mm length and 30 mm width can be connected. The converter can be installed into your system internally through the U.2 68 pin interface.

Cooling for the SSD

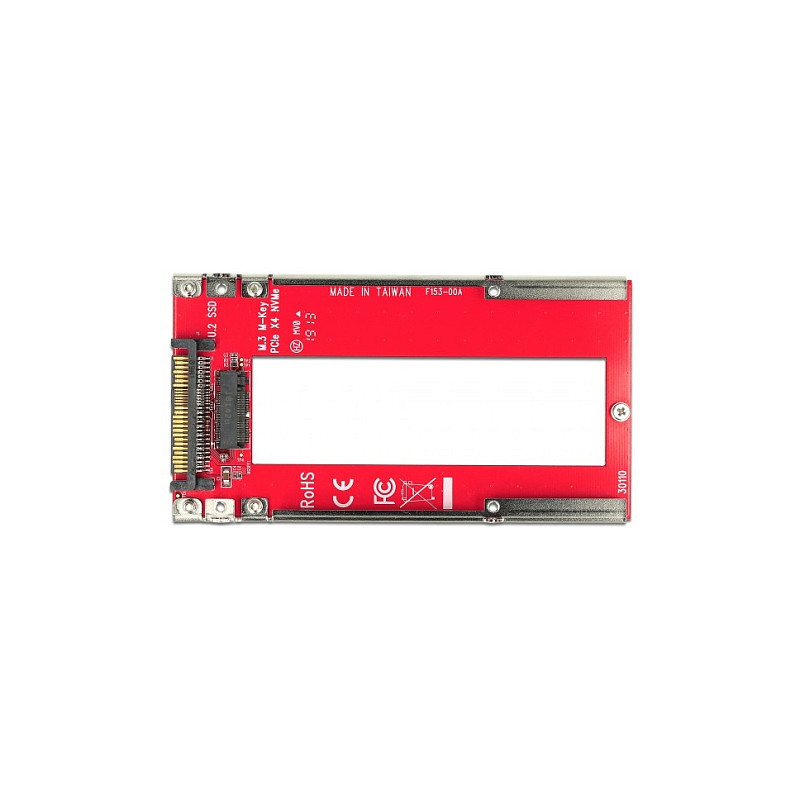

For better cooling, the PCB of the converter has a recess, which is located directly under the inserted SSD. Thus it is possible that an optional heat sink can be mounted on the bottom of the SSD.

Ports & interfaces

Host interface: U.2
Output interface: M.3
Feature: NVMe

Design

Feature: Internal
Product colour: Red, Silver
Purpose: PC
Cooling type: Passive

Features

Data transfer rate (max): 32 Gbit/s

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Weight & dimensions

Width: 70 mm
Depth: 130 mm
Height: 7 mm

Packaging data

Quantity: 1

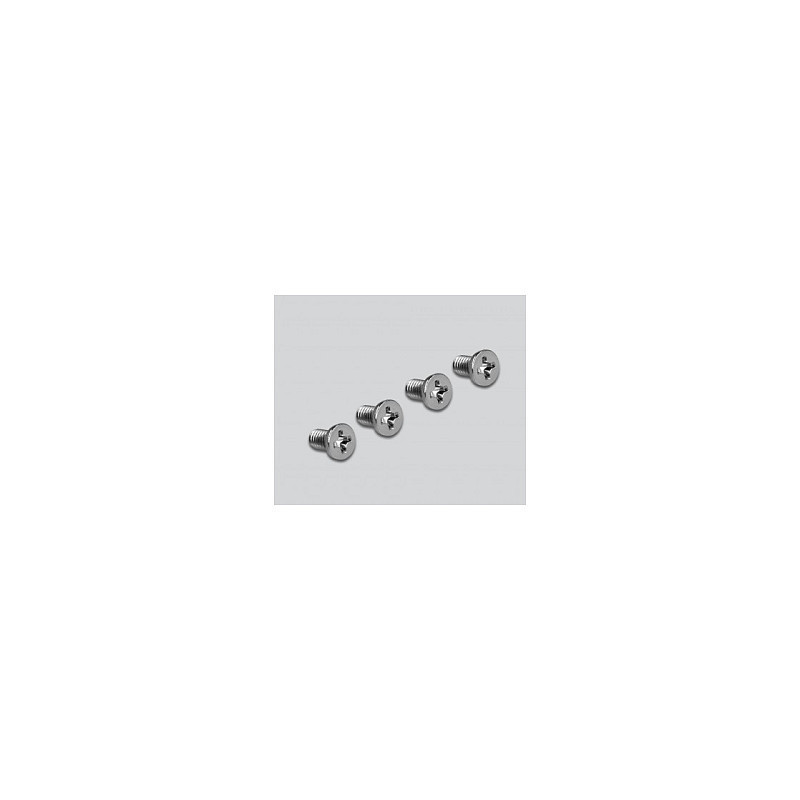

Feature: Mounting brackets included
Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
