DeLOCK 62996 interface cards / adapter

DeLOCK 62996. Host interface: PCIe, Expansion card standard: PCIe 1.0. Chipset: Sunix 2212, FIFO (First In, First Out): 128 B, Data bits: 4, 5, 6, 7, 8. Width: 88 mm, Depth: 65 mm, Height: 12 mm. Package type: Box

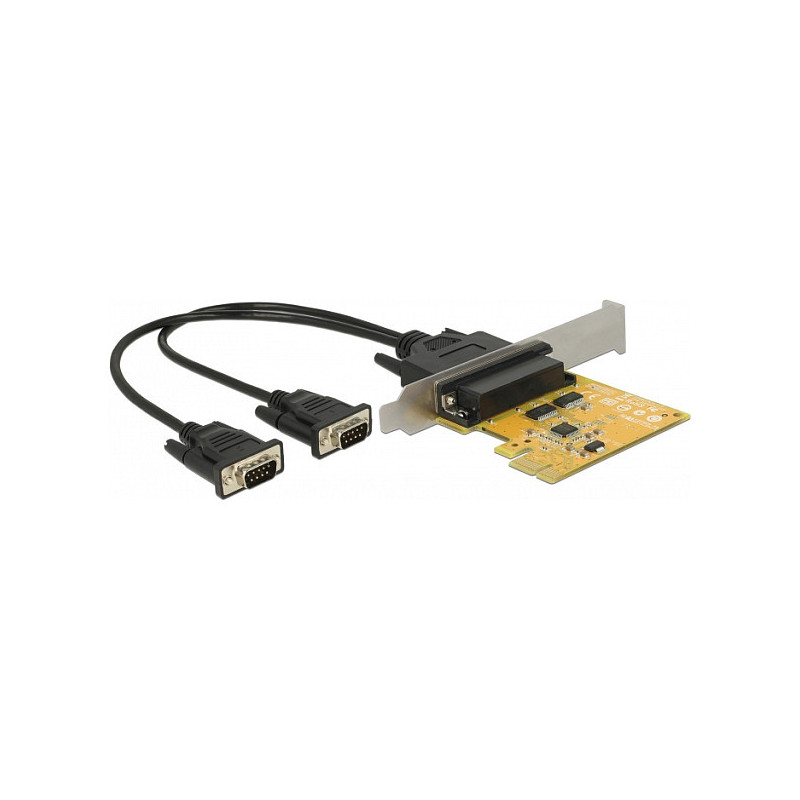

This PCI Express card by Delock expands the PC by two external serial RS-232 High-Speed ports. Different devices such as gateways, plotters, printers, line extender, dongles or embedded modules, field programmable gate arrays (FPGA), controllers etc. can be connected to this card. Included are thumbscrews for the individual serial ports, so either serial devices with screws or with nuts can be connected to the ports. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Ports & interfaces

Host interface: PCIe
Expansion card standard: PCIe 1.0

Design

Feature: Internal

Features

Chipset: Sunix 2212
FIFO (First In, First Out): 128 B
Data bits: 4, 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Feature: Flow control support
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 88 mm
Depth: 65 mm
Height: 12 mm

Packaging data

Feature: Mounting brackets included
Feature: Screws included
Feature: Drivers included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
