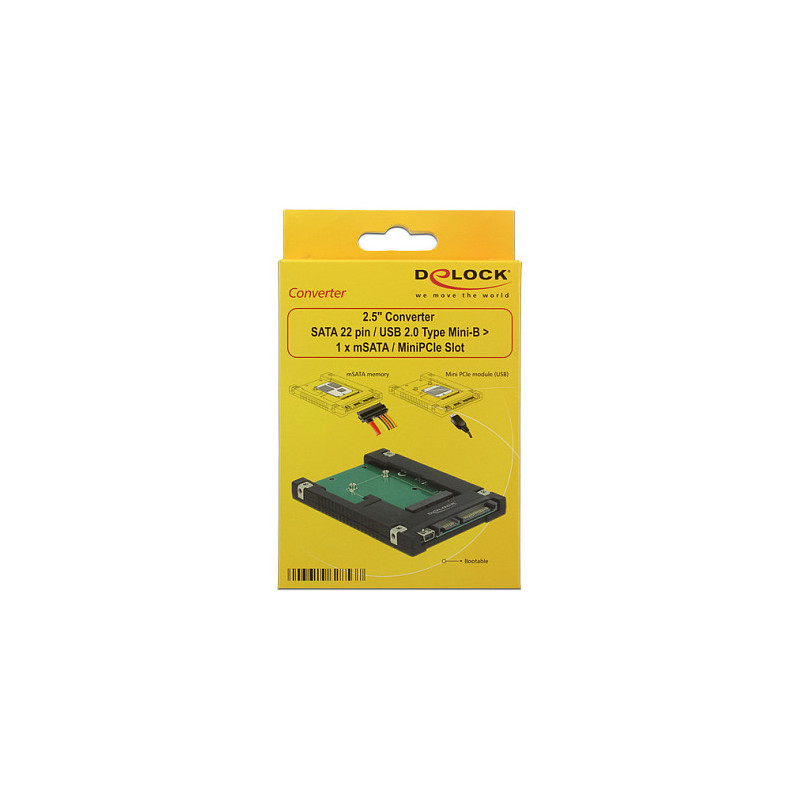

DeLOCK 62853 interface cards / adapter

DeLOCK 62853. Host interface: mSATA, Output interface: SATA, USB 2.0. Data transfer rate (max): 6 Gbit/s. Width: 70 mm, Depth: 100 mm, Height: 7 mm. Package type: Box

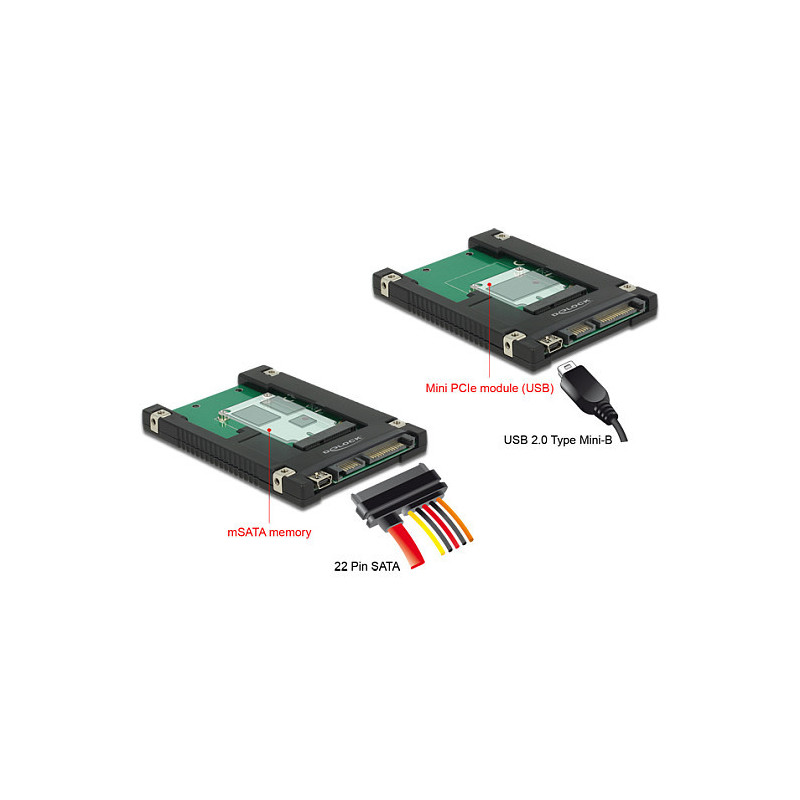

This converter by Delock enables the connection of an mSATA SSD in half size or full size format and it can be used as a replacement for 2.5″ HDD. Therefor the converter will be connected via the SATA 22 pin interface with your system, optional the power supply can be held by the USB port.
Further, instead of the mSATA SSD, a Mini PCIe module based on USB can be connected and will be integrated to the system via the USB Mini-B port.

Ports & interfaces

Host interface: mSATA
Output interface: SATA, USB 2.0
USB 2.0 ports quantity: 1

Design

Feature: Internal

Features

Data transfer rate (max): 6 Gbit/s

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 70 mm
Depth: 100 mm
Height: 7 mm

Packaging data

Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
