DeLOCK 42020 storage drive enclosure

DeLOCK USB Type-C Enclosure for 1 x M.2 NVMe SSD + 1 x 2.5″ SATA SSD / HDD with Clone Function. Product type: HDD/SSD enclosure. Number of storage drives supported: 2, Storage drive size: 2.5", Supported storage drive interfaces: M.2, Serial ATA. Data transfer rate: 10 Gbit/s. Installed storage drive type: HDD+SSD, Hot-swap. Product colour: Black. USB connector type: USB Type-C
This enclosure by Delock in gaming style with many ventilation slots enables the simultaneous operation of an M.2 NVMe SSD, in 2280, 2260 and 2242 format, and a 2.5″ SATA HDD or SSD through the USB-C™ interface.
Clone Function without PC
The built-in clone function allows to clone memory without using a PC. It is possible to clone from NVMe to SATA and SATA to NVMe.
Extensive connectivity
Due to the specially designed adapter, the Delock enclosure can be quickly and easily connected to the USB Type-A socket. Thus, it can be easily connected to new devices with USB Type-C™ female and older devices that only have a USB Type-A connector. The adapter is located directly on the cable and therefore it cannot be lost.
SSD installation

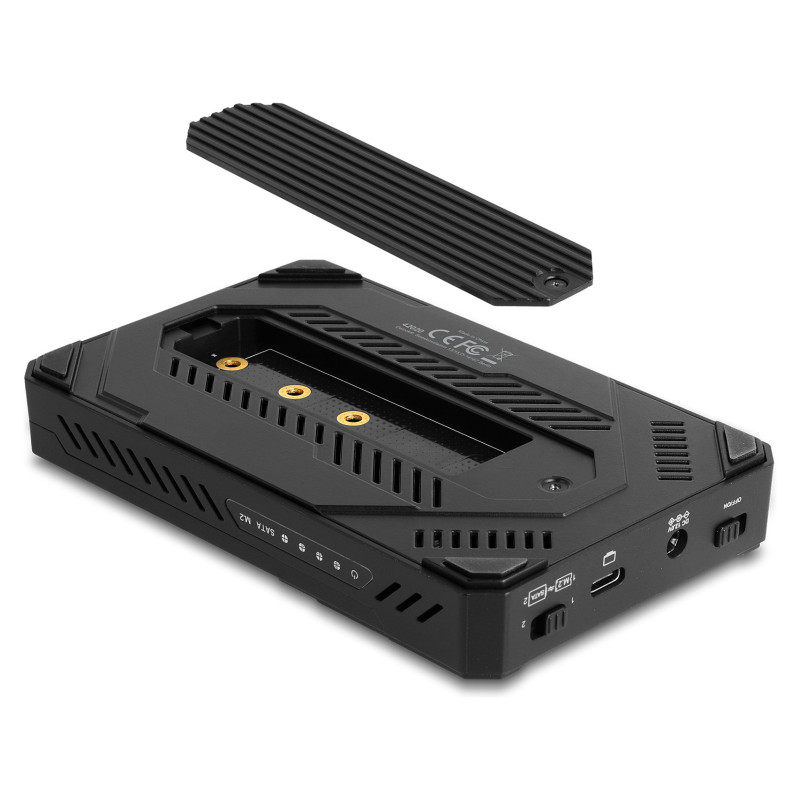

The M.2 SSD is installed on the bottom, only the attached heat sink has to be removed.

Storage

Number of storage drives supported: 2
Storage drive size: 2.5"
Supported storage drive interfaces: M.2, Serial ATA
Supported storage drive heights: 1.5 mm
Installed storage drive type: HDD+SSD
Installed storage drive interface: Serial ATA
NVMe: Yes
Hot-swap: Yes

Ports interfaces

USB connectivity: Yes
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1
DC-in jack: Yes

Design

Product type: HDD/SSD enclosure
Product colour: Black
Material: Plastic
LED indicators: Access, Power, Status
On/off switch: Yes

Performance

Data transfer rate: 10 Gbit/s
Chipset: JMicron JMS581D
UASP support: Yes
TRIM support: Yes
S.M.A.R.T. support: Yes
Plug and Play: Yes

Power

Power source type: DC
External power adapter: Yes
AC adapter input voltage: 100 - 240 V
AC adapter input current: 0.6 A
AC adapter frequency: 50/60 Hz
AC adapter output voltage: 12 V
AC adapter output current: 2 A

System requirements

Mobile operating systems supported: Android 11.0, Android 12.0, Android 13.0, iOS
Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Linux operating systems supported: Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Weight dimensions

Width: 87 mm
Depth: 140 mm
Height: 21 mm
Cable length: 0.3 m

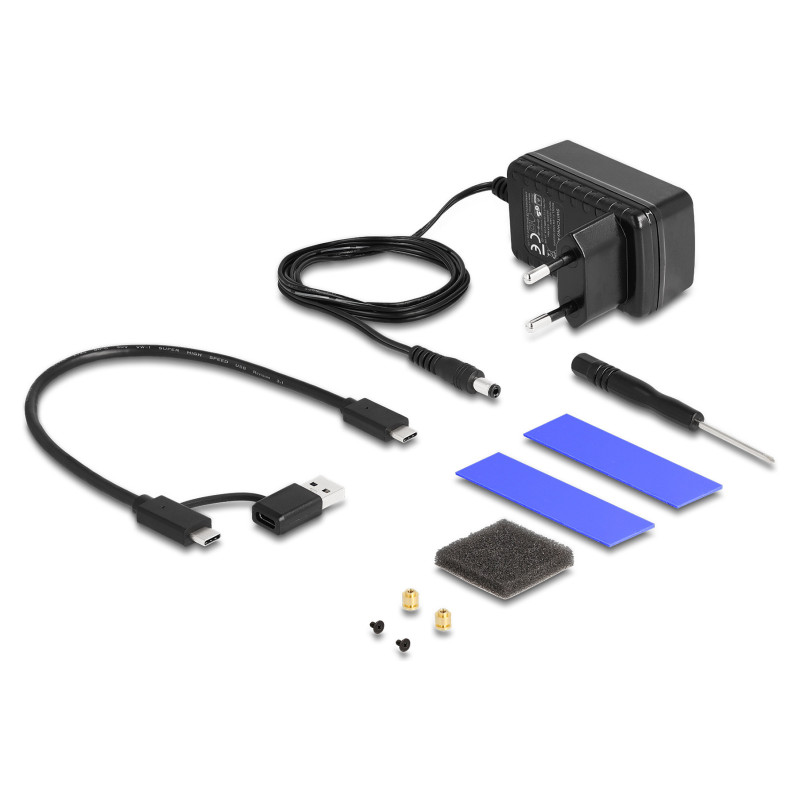

Packaging content

Package type: Box
AC adapter included: Yes
Cables included: USB Type-C to USB Type-C
Spacer included: Yes
Screws included: Yes
Screwdriver included: Yes
Manual: Yes

Technical details

Sustainability compliance: Yes
Compliance certificates: CE
