DeLOCK 42019 storage drive enclosure

DeLOCK External USB Type-C™ Combo Enclosure for M.2 NVMe PCIe or SATA SSD - tool free. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: Serial ATA III. Data transfer rate: 10 Gbit/s. Hot-swap. Product colour: Grey. USB connector type: USB Type-C

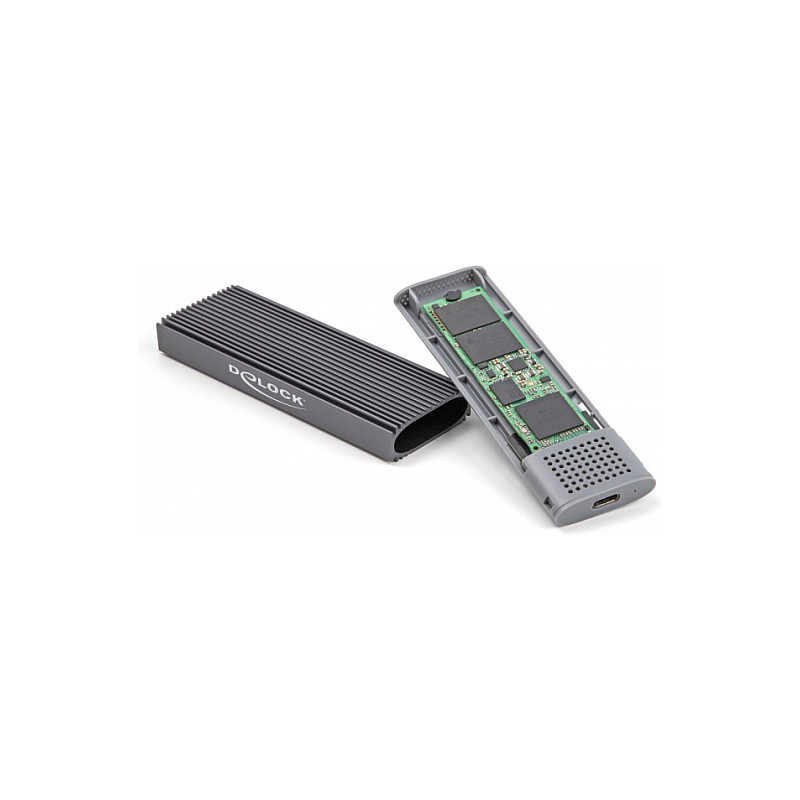

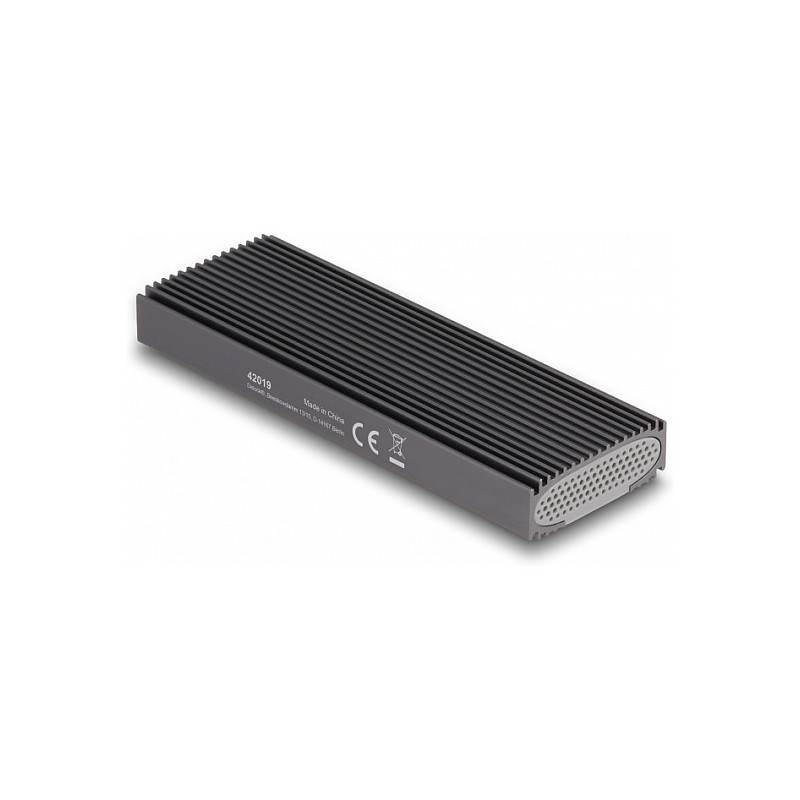

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop. The robust metal housing with cooling fins ensures an optimum temperature of the memory.

Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.

SSD installation without tools

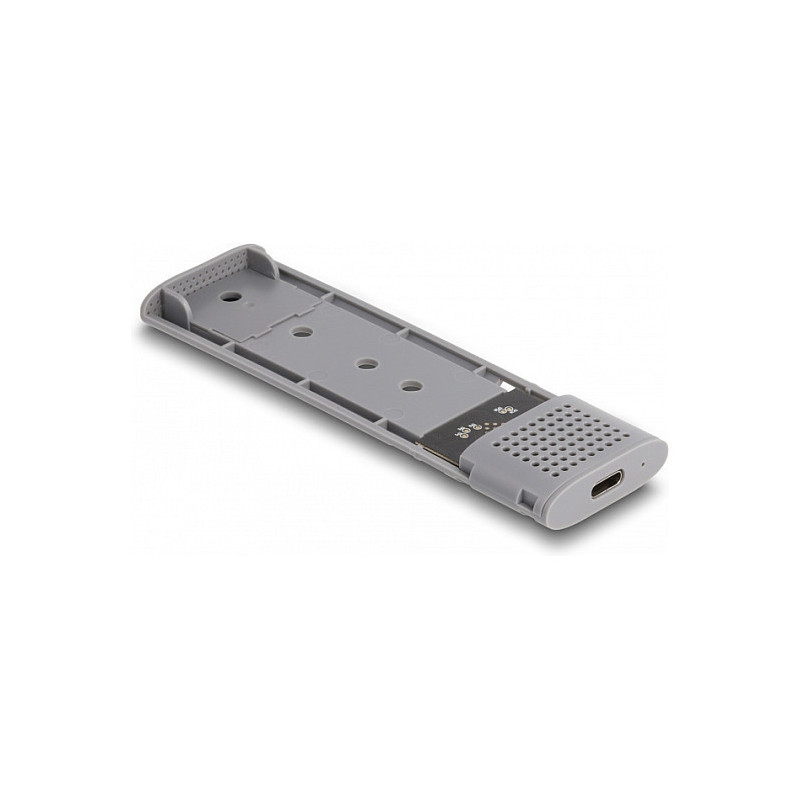

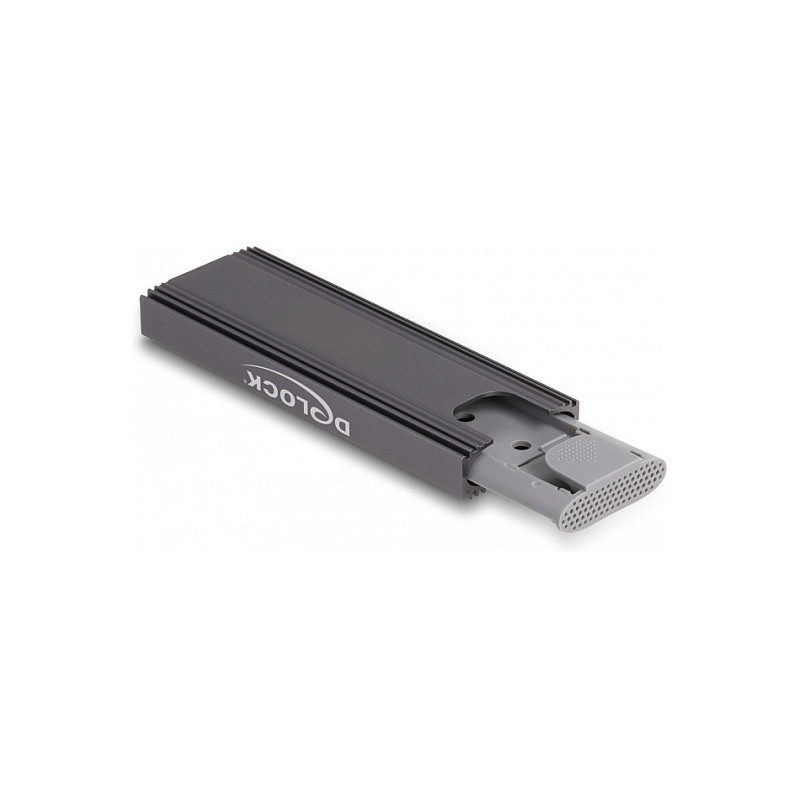

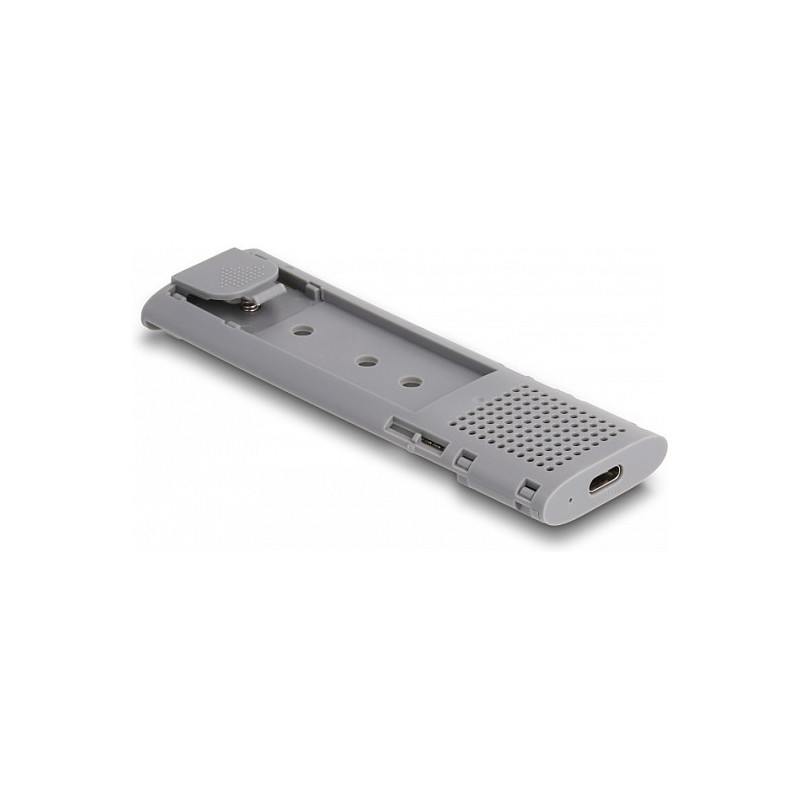

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The inner part can be pulled out by pushing the button, the SSD is inserted into the slot and attached to the board with a rubber nipple.

Storage

Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: Serial ATA III
Feature: NVMe
Feature: Hot-swap

Ports & interfaces

Feature: USB connectivity
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1

Design

Product type: SSD enclosure
Product colour: Grey
Material: Aluminium
LED indicators: Yes

Performance

Data transfer rate: 10 Gbit/s
Chipset: Realtek RTL9210B
Feature: Plug and Play
Country of origin: China

Power

Power source type: USB

System requirements

Mobile operating systems supported: Android 10, Android 10.0, Android 11.0, Android 12.0, Android 13.0, iPadOS
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
Mac operating systems supported: MacOS

Weight & dimensions

Width: 38 mm
Depth: 110 mm
Height: 13 mm
Cable length: 0.45 m

Packaging content

Package type: Hanging box
Feature: Manual

Technical details

Feature: Sustainability compliance
Compliance certificates: CE
