DeLOCK 41427 interface cards / adapter

DeLOCK 41427. Host interface: PCIe, Output interface: PCIe, USB 3.2 Gen 1 (3.1 Gen 1). Product colour: Black, Blue, Country of origin: China. Chipset: Asmedia ASM1184e, Data transfer rate (max): 0.8 Gbit/s. Width: 142 mm, Depth: 175 mm, Height: 14 mm. Cables included: SATA, USB, Package type: Box

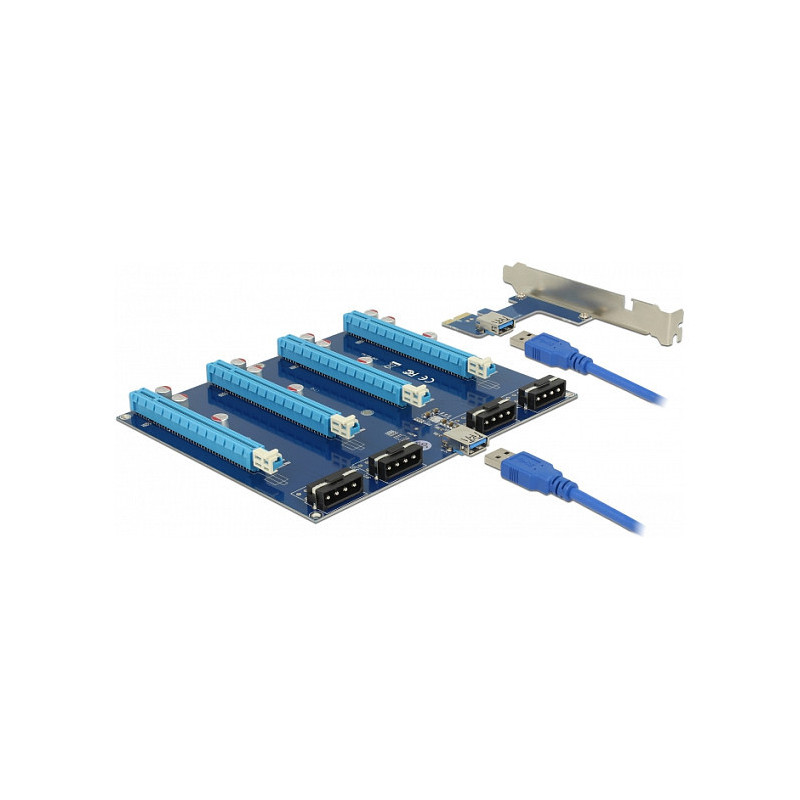

The PCI Express riser card by Delock can be plugged into any PCI Express x1 slot on the motherboard. The PCI Express board can be mounted in a different position in the case. This allows up to four graphics cards to be operated in each PCIe slot of a motherboard, even if the graphics cards are wider than a single slot. By using several riser cards, several graphics cards can be operated simultaneously on one motherboard, e.g. for mining crypto currencies such as Bitcoin, Ethereum or Zcash.

Ports & interfaces

Host interface: PCIe
Output interface: PCIe, USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Design

Feature: Internal
Product colour: Black, Blue
Country of origin: China

Features

Chipset: Asmedia ASM1184e
Data transfer rate (max): 0.8 Gbit/s

Weight & dimensions

Width: 142 mm
Depth: 175 mm
Height: 14 mm

Packaging data

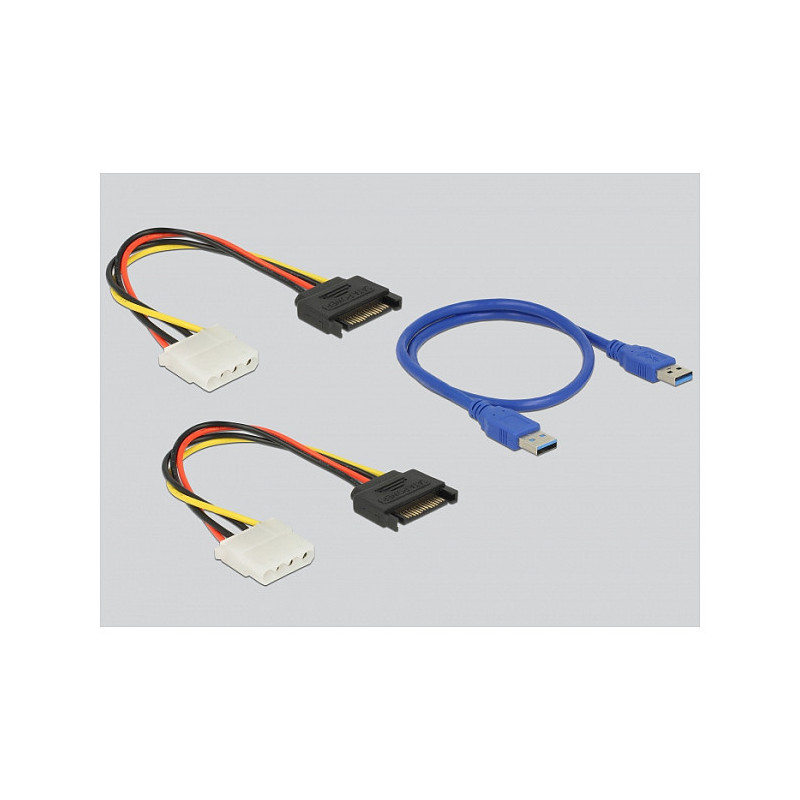

Cables included: SATA, USB
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020

Other features

Housing colour: Blue
