DeLOCK 2x 67-pin M.2 key B - 2x SATA 7-pin interface cards / adapter

DeLOCK 2x 67-pin M.2 key B - 2x SATA 7-pin. Host interface: PCIe, Output interface: SATA, Expansion card form factor: Low-profile. Purpose: PC, Maximum cable length: 0.5 m. Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10 Home, Windows 10 Home x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows.... Cables included: SATA, Package type: Box

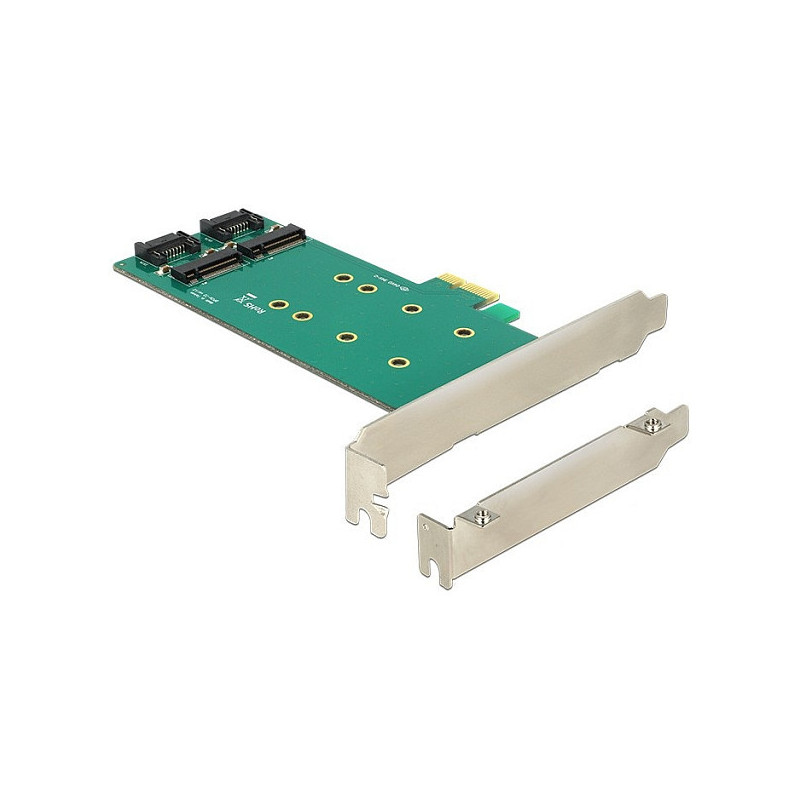

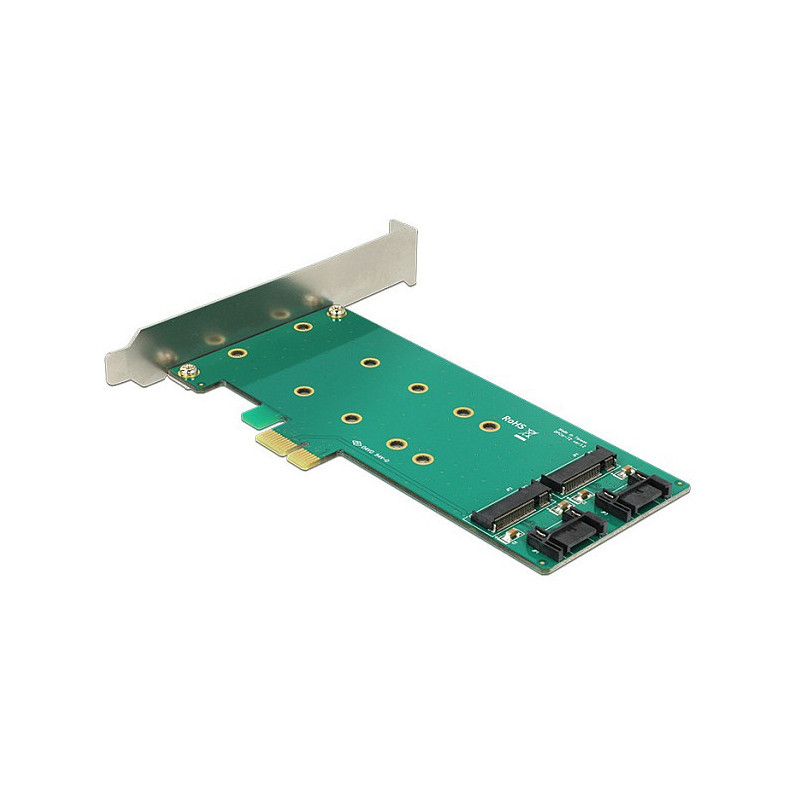

This PCI Express card by Delock expands the PC by two M.2 slots. It can be connect two M.2 SATA modules in format 22110, 2280, 2260, 2242, 2230 in the card and connect via SATA cables to the mainboard.

Ports & interfaces

Host interface: PCIe
Output interface: SATA
Expansion card form factor: Low-profile
Expansion card standard: PCIe 1.1
Internal SATA ports quantity: 2

Design

Feature: Internal
Purpose: PC
Maximum cable length: 0.5 m

Features

Data transfer rate (max): 6 Gbit/s

System requirements

Windows operating systems supported: Windows 10 Home, Windows 10 Home x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64
Linux operating systems supported: Yes

Technical details

Compliance certificates: RoHS

Packaging data

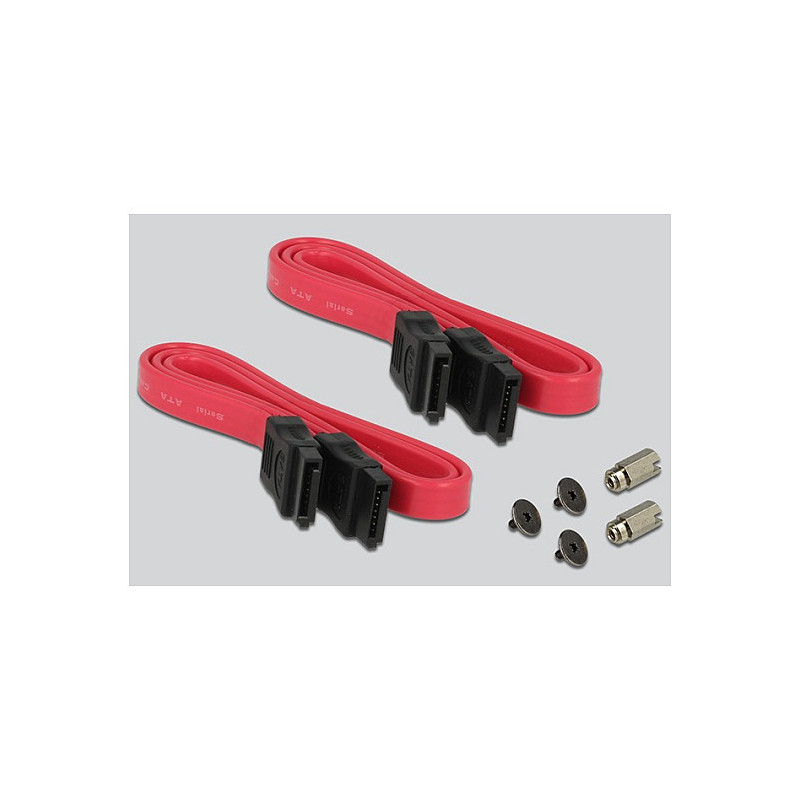

Cables included: SATA
Feature: Mounting brackets included
Feature: Manual
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
