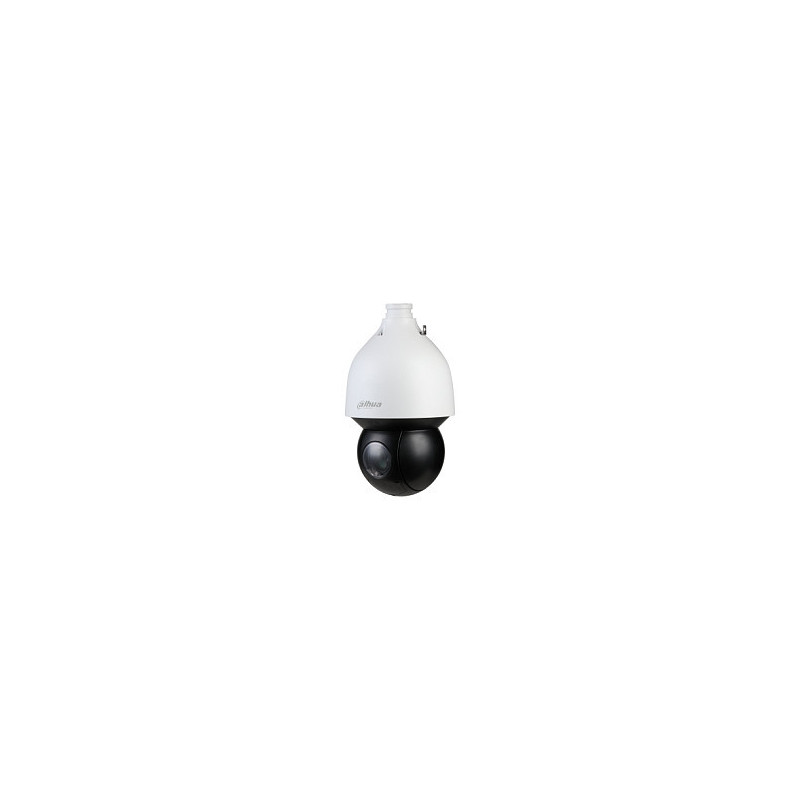

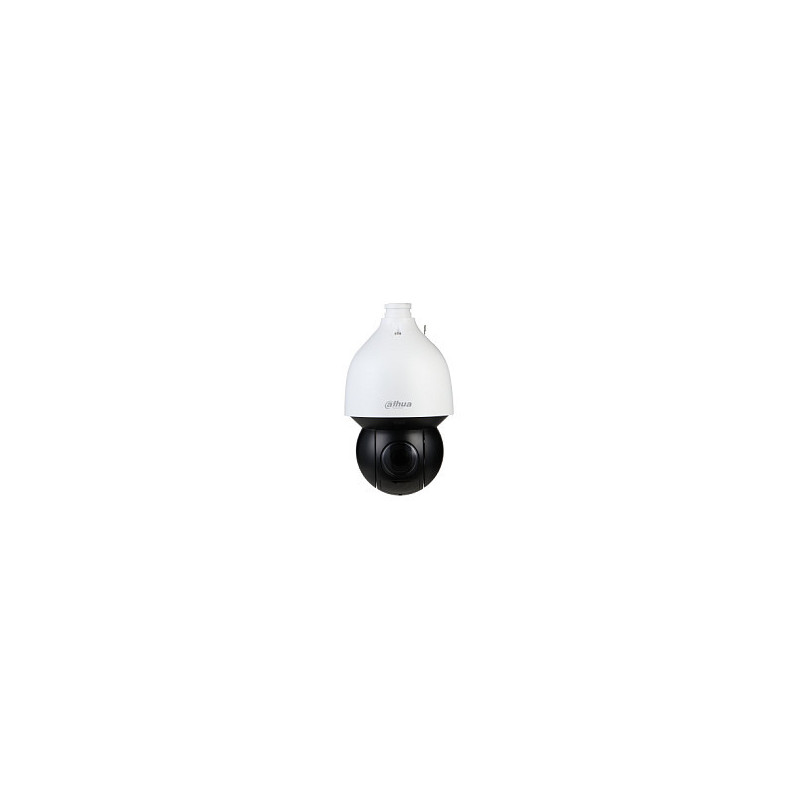

Dahua Technology WizSense DH-SD5A225GB-HNR security camera

Dahua Technology WizSense DH-SD5A225GB-HNR. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 58.5-2.8, Lens viewing angle, vertical: 33.2-1.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Digital zoom: 16x, Detect distance: 1614 m
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.
Auto-tracking
This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority
Smart H.265+ Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Starlight Technology
For challenging low-light conditions, Dahua's Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: 5 Pattern
Auto-tracking: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Alarm input/output: Yes
Certification: CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
International Protection (IP) code: IP67
IK code: IK10
Display diagonal: 2.54 cm (1")

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.0005 lx
Lens viewing angle, horizontal: 58.5-2.8
Lens viewing angle, vertical: 33.2-1.5°
Lens viewing angle, diagonal: 67.5-3.2
Tilt angle range: 15 - 90°
Tilt preset speed: 300 °/sec
Tilt manual speed: 0.1 - 200 °/sec
Pan range: 0 - 360°
Pan preset speed: 400 °/sec
Pan manual speed: 0.1 - 300 °/sec
White balance: Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes

Lens system

Zoom capability: Yes
Optical zoom: 25x
Digital zoom: 16x
Number of lenses: 1
Detect distance: 1614 m
Observe distance: 646 m
Recognize distance: 323 m
Focal length range: 4.8-120
Auto focus: Yes
Focus: Manual
Maximum aperture number: 3.5
Identify distance: 161 m
Minimum aperture number: 1.6
Closest focusing distance: 0.1 m

Night vision

Night vision: Yes
Night vision distance: 150 m
LED type: IR
Number of illumination LEDs: 4

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.264+, H.264B, H.264H, H.265, H.265+
Supported graphics resolutions: 352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Back Light Compensation (BLC): Yes
Digital Wide Dynamic Range (DWDR): Yes

Audio

Audio system full duplex: Yes
Audio input channels: 1.0 channels
Audio formats supported: G.711, G.722.1, G.723, G.726, G.729, PCM

Network

Ethernet LAN: Yes
Supported network protocols: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Internal memory: 1000 MB
ROM capacity: 4000 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1

Security

Alarm input channels: 2
Alarm output channels: 1

Management features

Web-based management: Yes
Web browser: Yes

Power

Power source type: DC, PoE
Power consumption (typical): 13 W
Power consumption (max): 22 W
DC output voltage: 24
DC output current: 2.5 A

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight dimensions

Height: 332 mm
Diameter: 19 cm
Weight: 4.7 kg

Packaging data

Package weight: 8 kg

Packaging content

Number of cameras: 1
