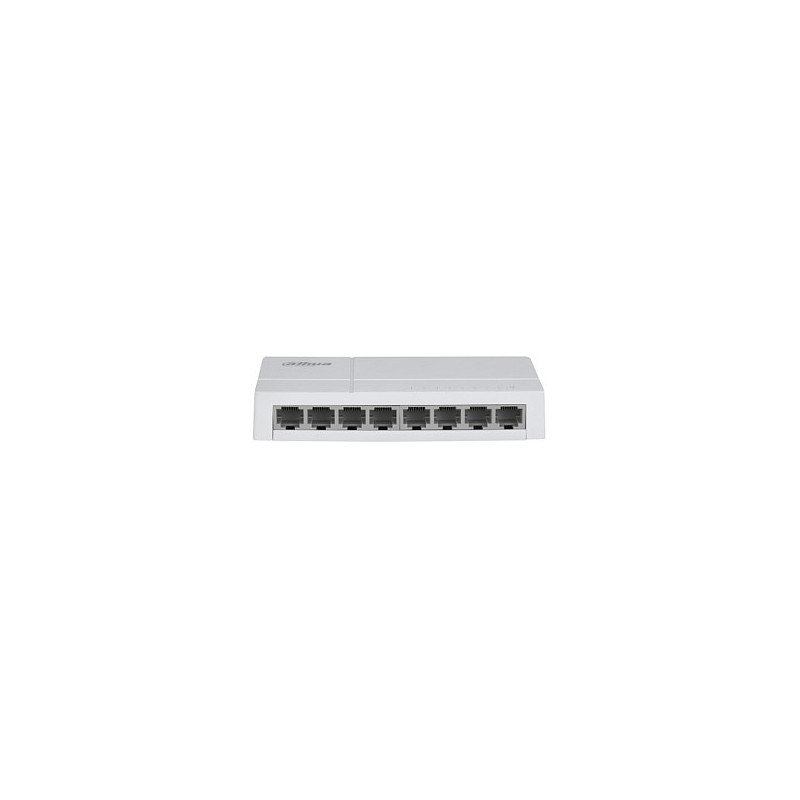

Dahua Technology PoE DH-SF1008L

Dahua Technology PoE DH-SF1008L. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. DC input voltage: 5 V. Power over Ethernet (PoE). Form factor: Desktop

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance
All ports can transmit streams at high speeds without delay.

Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Uplink ports quantity: 1

Network

Copper ethernet cabling technology: 10BASE-T
Cable types supported: Cat5e, Cat6
Feature: Flow control support
Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 1.6 Gbit/s
Forwarding rate: 0.744 Mpps
MAC address table: 2000 entries
Packet buffer memory: 0.768 MB

Design

Form factor: Desktop
Product colour: Light grey
LED indicators: Yes

Performance

Mean time between failures (MTBF): 952.5 h

Power

Power source: DC/PoE
DC input voltage: 5 V
Input current: 1 A
Power consumption (typical): 0.1 W
Power consumption (max): 0.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 132.9 mm
Depth: 62.4 mm
Height: 24 mm
Weight: 160 g

Packaging data

Package width: 138 mm
Package depth: 90 mm
Package height: 63.5 mm
Package weight: 290 g
