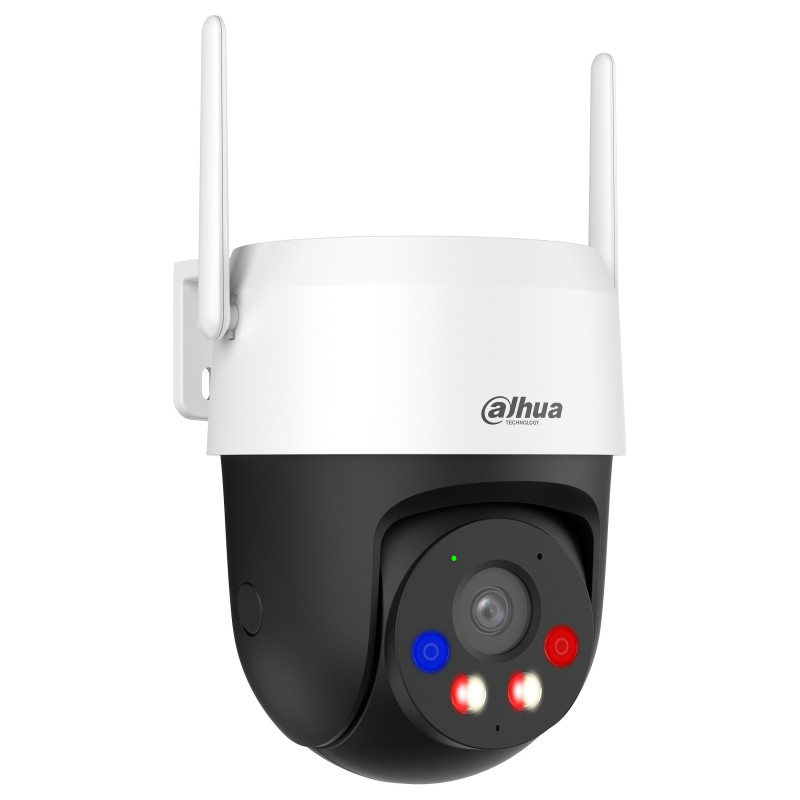

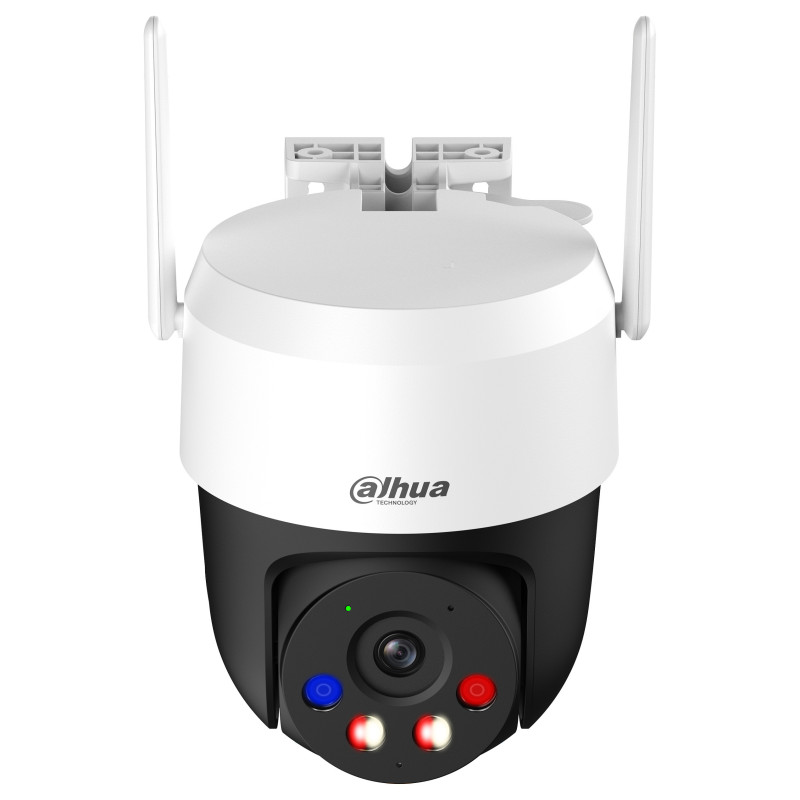

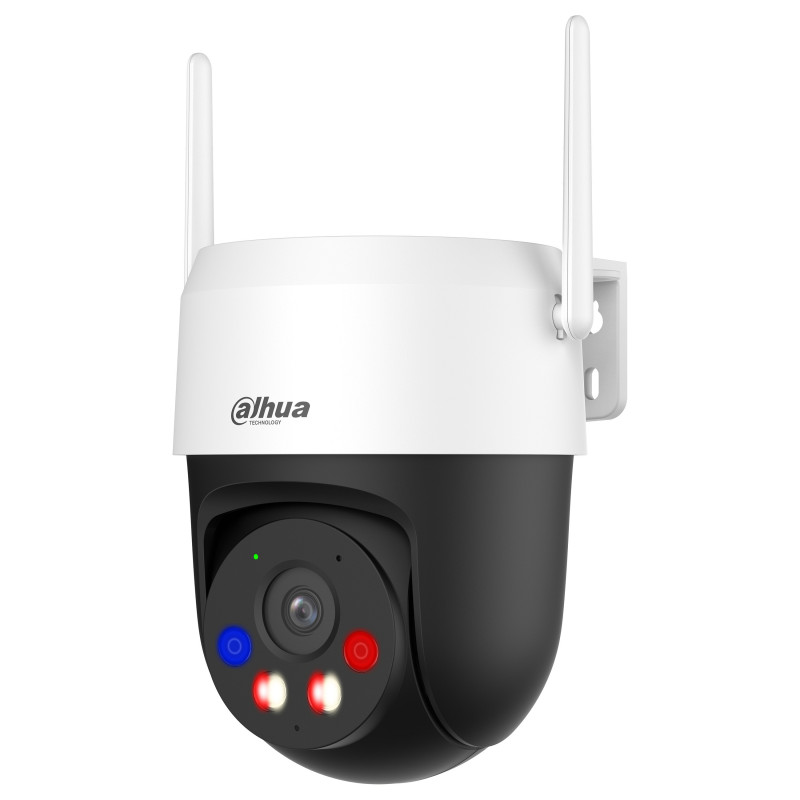

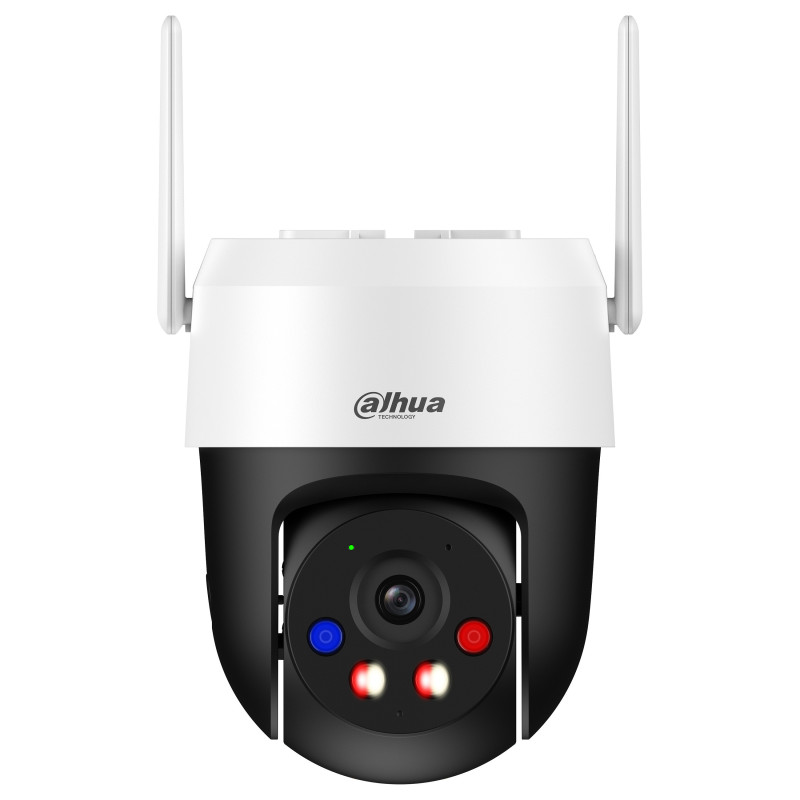

Dahua Technology P5AS-PV security camera

Dahua Technology 5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Angle of rotation: 180°, Lens viewing angle, horizontal: 78°, Lens viewing angle, vertical: 42°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 4 mm

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired & Wireless
Feature: Auto-tracking
Feature: Auto patrol mode
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode

Design

Form factor: Turret

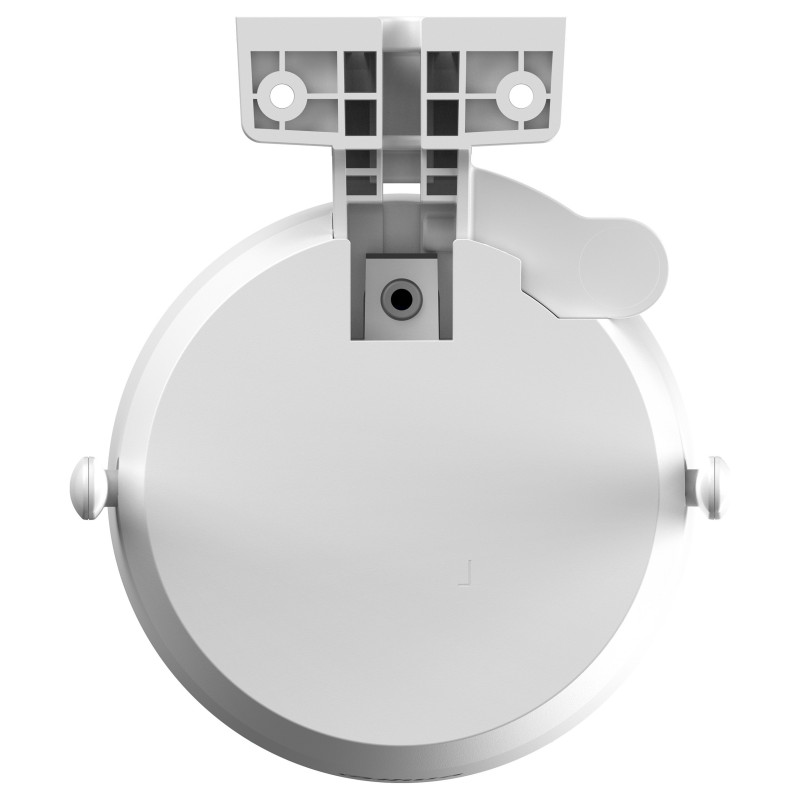

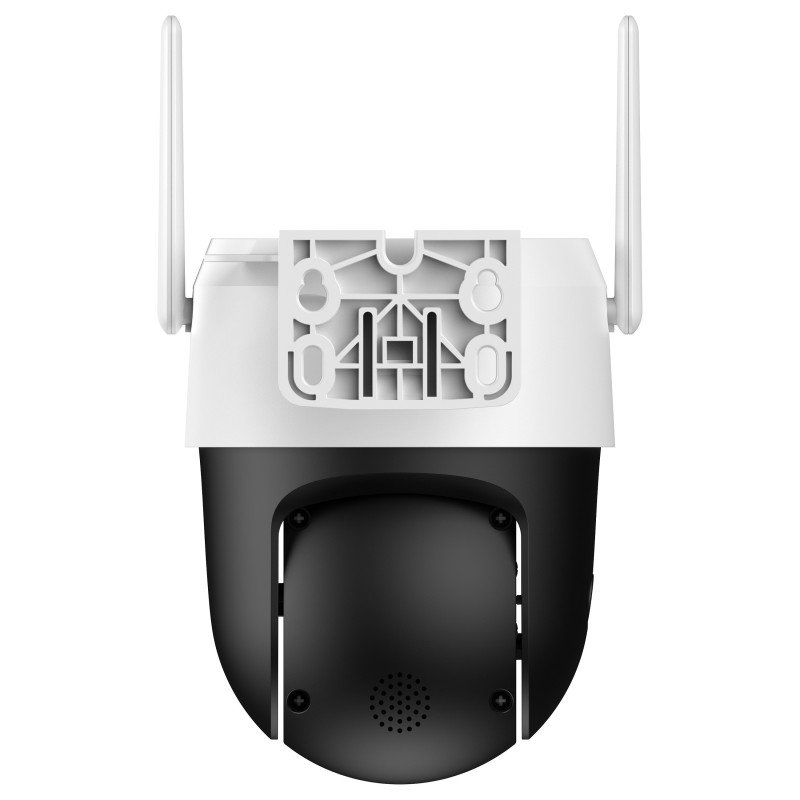

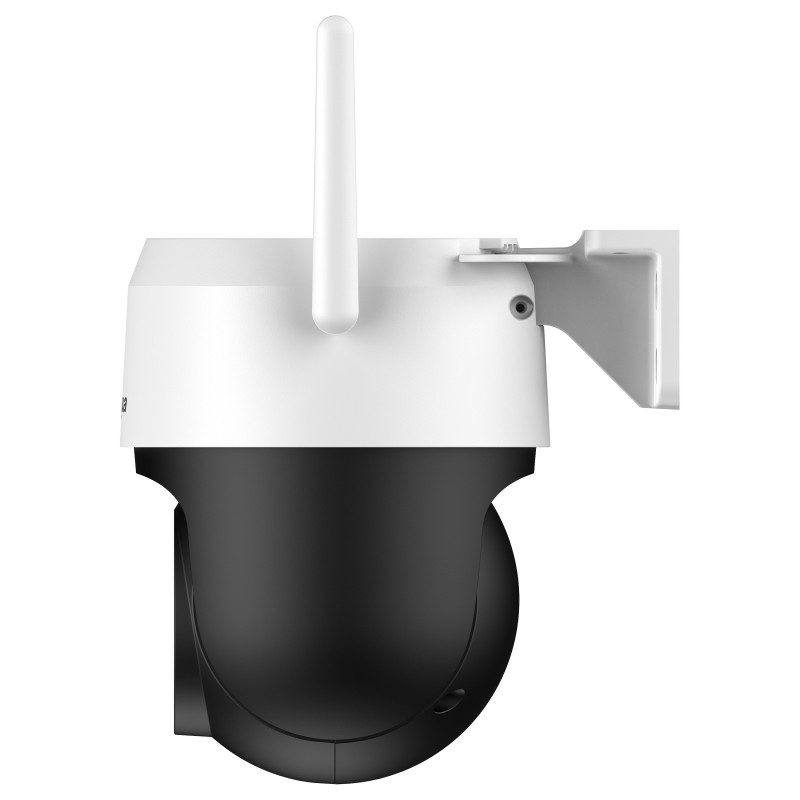

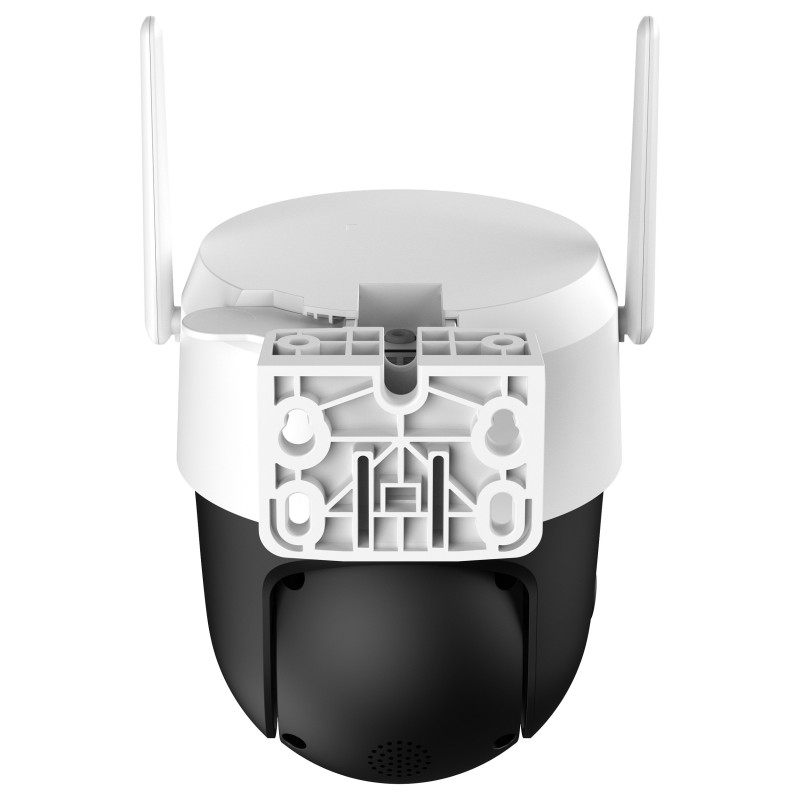

Mounting type: Ceiling/wall
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic
Protection features: Dustproof, Rain proof, Wind resistant
International Protection (IP) code: IP66
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0 lx
Angle of rotation: 180°
Lens viewing angle, horizontal: 78°
Lens viewing angle, vertical: 42°
Lens viewing angle, diagonal: 92°
Tilt angle range: 0 - 90°
Pan range: 0 - 345°

Image sensor

Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Panoramic camera

Feature: Digital Wide Dynamic Range (DWDR) (panoramic camera)

Lens system

Feature: Fixed focus
Maximum aperture number: 1.6
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR/White
Number of illumination LEDs: 2

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.264B, H.264H, H.265, M-JPEG
Feature: Video streaming
Bit rate: 32 kbps-6144 kbps

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone
Voice codecs: G.711Mu, G.711a, PCM

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Client interoperability: ONVIF; CGI
Feature: Live view

Storage

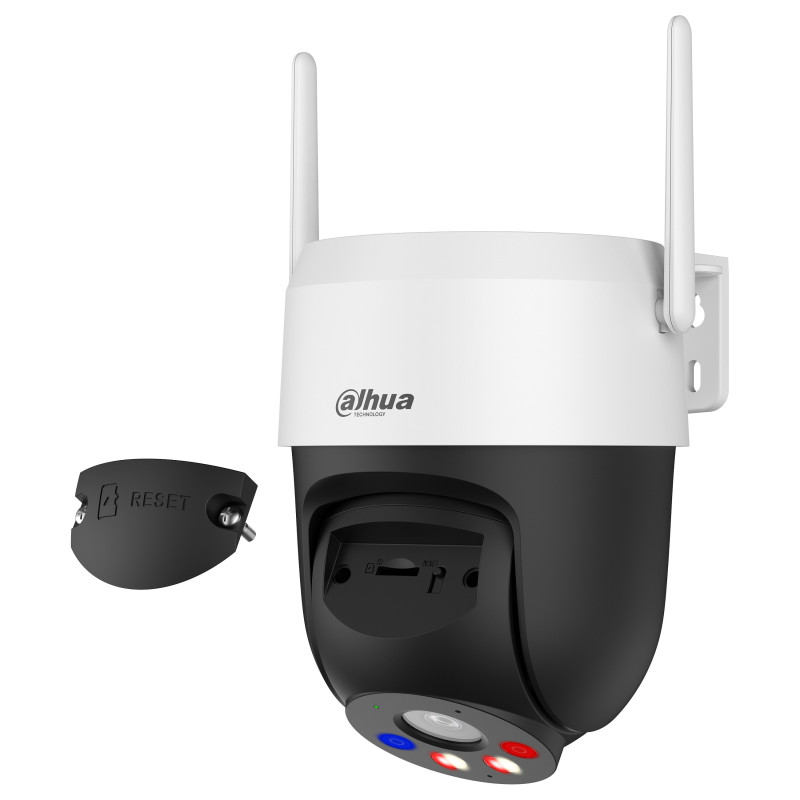

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Video motion detection
Intelligent Video Surveillance (IVS) system features: Abnormal sound detection, Human detection, Vehicle detection

Management features

Feature: Reset button
Management software: Smart PSS Lite; DSS; DMSS

Power

Power source type: DC
Power consumption (typical): 2 W
Power consumption (max): 14 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Width: 110 mm
Depth: 125.4 mm
Height: 140.3 mm
Weight: 400 g

Sustainability

Compliance certificates: CE

Packaging content

Number of cameras: 1
Feature: Mounting brackets included
Feature: AC adapter included
Feature: Quick start guide

Other features

Data transfer rate: 100 Mbit/s
