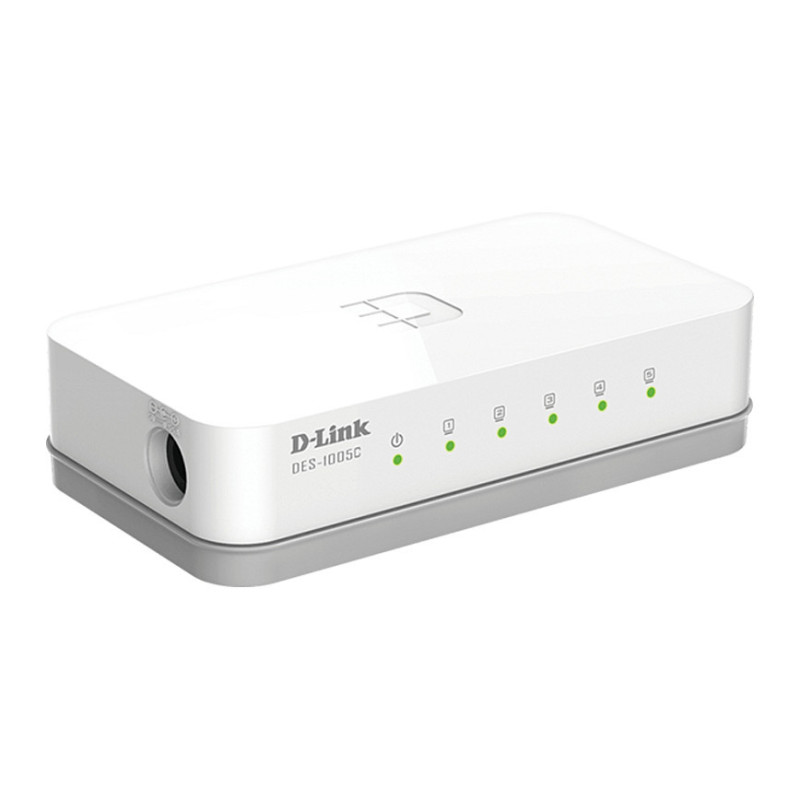

D-Link ES-1005C / E

D-Link ES-1005C/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack. Form factor: Desktop

Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you're ready to go.

Economical, Plug-and-play Networking Switch
The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Conserve Energy
The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation
The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Management features

Switch type: Unmanaged

Ports & interfaces

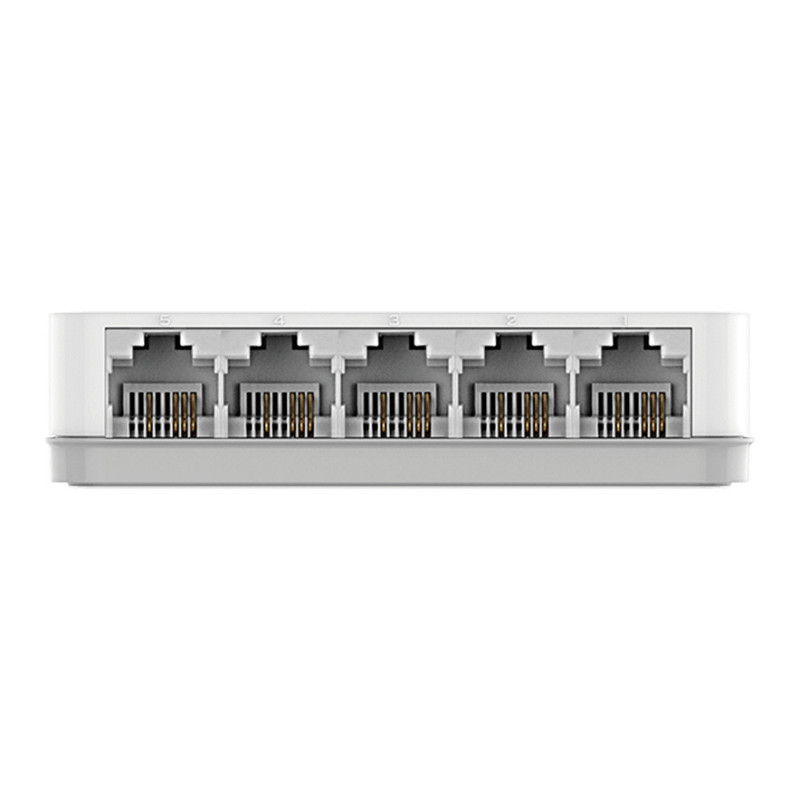

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

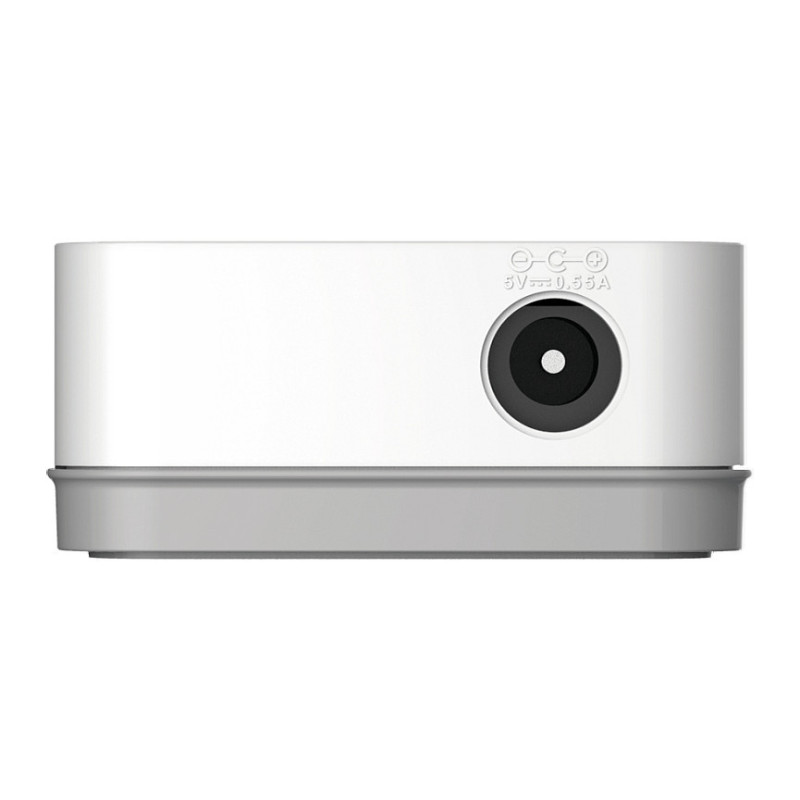

Power connector: DC-in jack

Network

Networking standards: IEEE 802.2, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto-negotiation

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.74 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 0.093 MB

Design

Form factor: Desktop
Product colour: White
LED indicators: Activity, Link, Power, Speed

Performance

Feature: Fanless
Mean time between failures (MTBF): 1785631 h

Power

Power source: DC
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (max): 0.784 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 0.406 BTU/h

Weight & dimensions

Width: 88 mm
Depth: 48 mm
Height: 21.4 mm
Weight: 43.4 g
