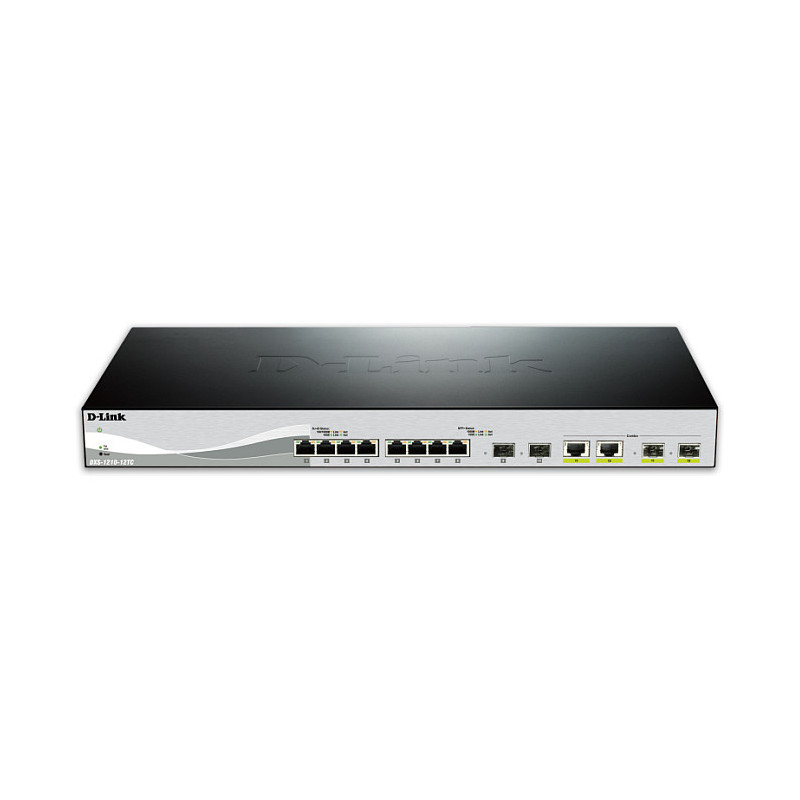

D-Link DXS-1210-12TC / E network switch

D-Link DXS-1210-12TC/E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Power connector: DC-in jack. Rack mounting, Form factor: 1U

10 Gigabit Ethernet For Everyone
10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link's DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.

Enterprise Functionality at Small Business Prices
Our DXS-1210 switches are a cost-effective solution capable of servicing a range of network needs in businesses of any size.

Flexibility without Compromise
Supporting 10 GBASE-T / SFP+ combo ports, they provide flexibility across a network allowing easier network integration, and with high-performance and low latency they fulfil the need for virtualisation, cloud services and server-to-server applications - perfect for small to medium sized businesses.

High Performance and Low Latency
D-Link's DXS-1210 Series specifically delivers up to 238* Mbps Maximum Packet Forwarding Rate enabling simultaneous traffic processing on all ports at line rate without any packet loss.

Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.

Advanced Green Technology
The DXS-1210 Switch Series offers advanced green technology without sacrificing performance or functionality. We take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2
Fiber optic connector: SFP+
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Feature: 10G support
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support

Data transmission

Switching capacity: 240 Gbit/s
Throughput: 178.56 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support

Security

Feature: IGMP snooping

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black, Silver
LED indicators: Yes
Safety: cUL, CB, CE, CCC, BSMI

Power

AC input voltage: 100 - 240 V
Power consumption (typical): 90.81 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 210 mm
Depth: 440 mm
Height: 44 mm
Weight: 3.15 kg

Packaging data

Package width: 349 mm
Package depth: 546 mm
Package height: 96 mm
Package weight: 4.48 kg

Sustainability

Sustainability certificates: ENERGY STAR

Technical details

Shipping (inner) case height: 38.3 cm
Shipping (inner) case width: 31.4 cm
Shipping (inner) case length: 56.2 cm
Shipping (inner) case net weight: 13.4 kg
Products per shipping (inner) case: 3 pc(s)
Pallet gross weight (air): 278.2 kg
Master (outer) cases per pallet (air): 18 pc(s)
Products per pallet (air): 54 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 128.4 cm
Pallet gross weight (sea): 451.2 kg
Master (outer) cases per pallet (sea): 30 pc(s)
Products per pallet (sea): 90 pc(s)
Pallet height (sea): 2.05 m
Shipping (inner) case gross weight: 14.4 kg

Certificates

Certification: CE, FCC, C-Ticket, VCCI, BSMI, CCC

Logistics data

Harmonized System (HS) code: 85176990
