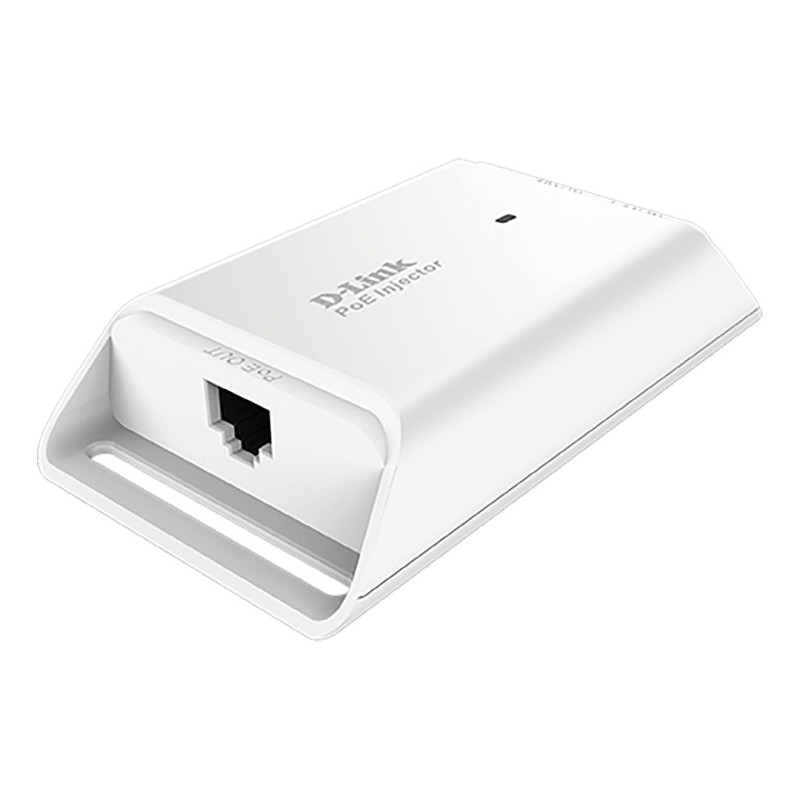

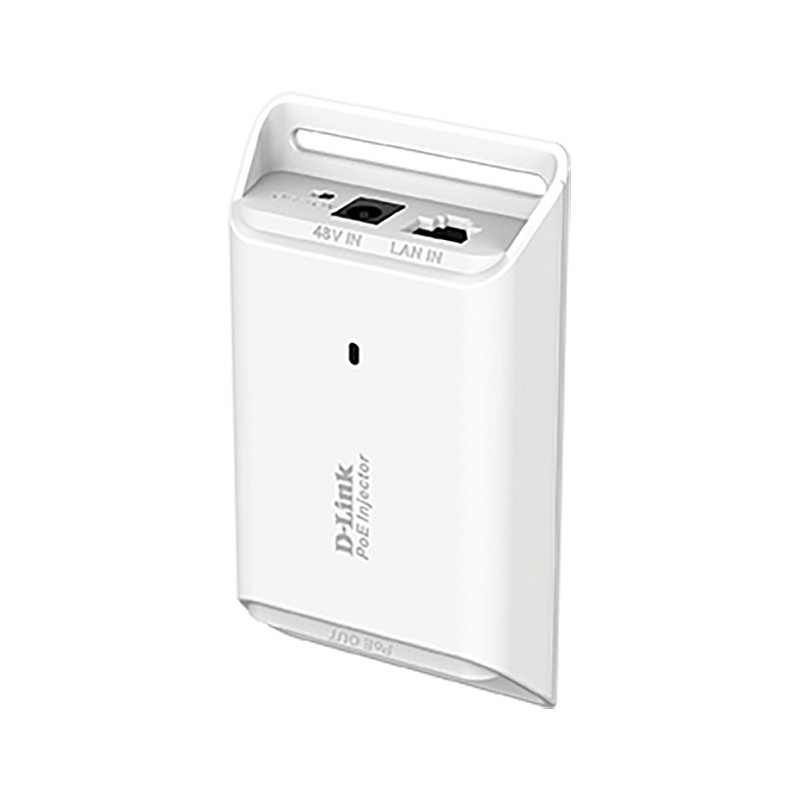

D-Link DPE-101GI PoE adapter

D-Link 15.4w Gigabit PoE Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: White, Maximum operating distance: 100 m. Output current: 0.4 A, Power consumption (max): 19.2 W. Certification: CE FCC VCCI C-Tick IC. Width: 62.2 mm, Depth: 109.8 mm, Height: 24.5 mm

The DPE-101GI Gigabit PoE Injector is designed to supply a power and data connection to PoE devices such as an IP Camera or Wireless Access Point. The IEEE 802.3af compliant DPE-101GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet and attached power supply. D-Link's DPE-101GI combines electrical power with a Gigabit network connection and produces a Gigabit Power over Ethernet (PoE) signal, allowing a single Ethernet cable to carry both data and power to a device.

Cost Efficient Flexibility Deploying the DPE-101GI saves both installation costs and equipment costs, allowing a single RJ-45 Ethernet cable to carry both power and data to each device. This reduces cables, eliminates the need for dedicated electrical outlets on the wall, ceiling, or other unreachable place, and most of all, reduces installation time. The Power over Ethernet solution frees IP surveillance cameras and wireless AP deployments from the restrictions of power outlet locations.

High Speed Connectivity The DPE-101GI Gigabit PoE Injector is designed to be deployed in situations where high bandwidth is demanded. Examples where the DPE-101GI is ideal include powering network devices such as wall mounted PTZ (Pan, Tilt & Zoom) network cameras, ceiling mounted PTZ dome network cameras, video and voice over IP (VoIP) telephones, and wireless LAN access points.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

Features

Product colour: White
Feature: Wall mountable
Feature: Easy to install
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Yes

Ports & interfaces

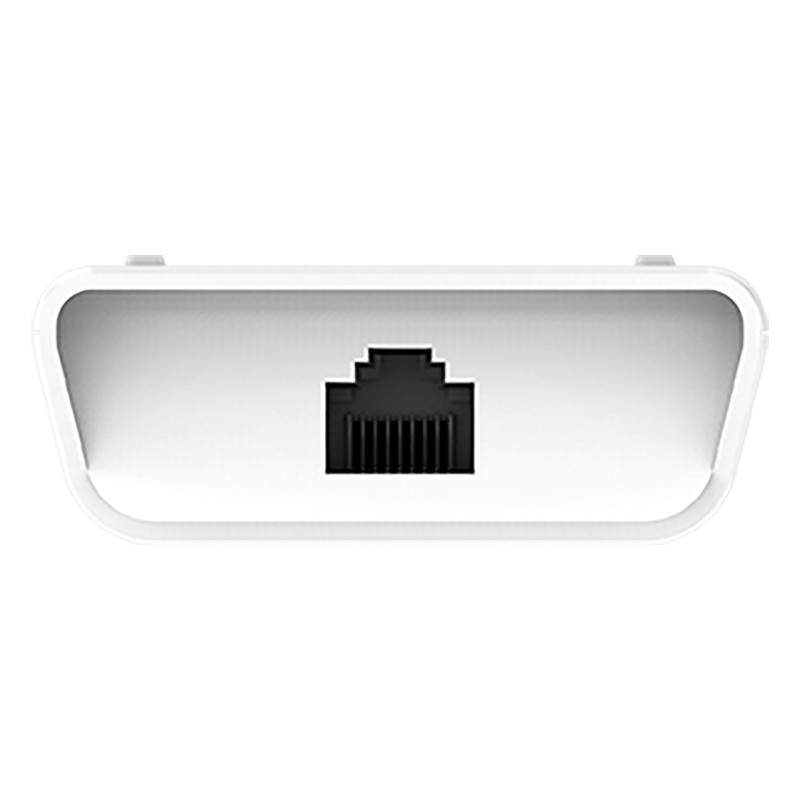

Ethernet LAN (RJ-45) ports: 2

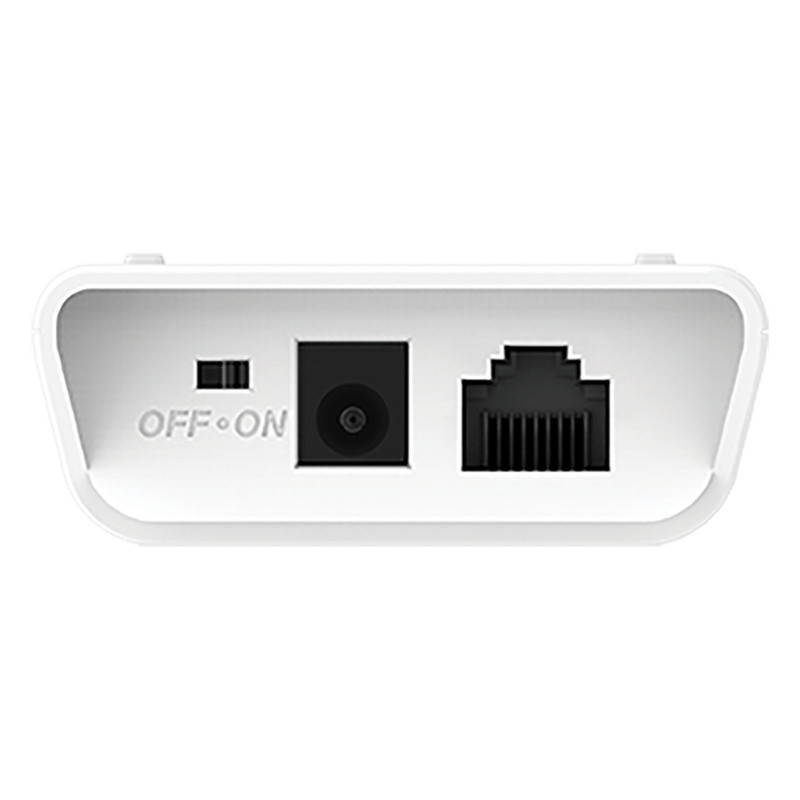

Feature: DC-in jack

Power

Output current: 0.4 A
Power consumption (max): 19.2 W

Certificates

Certification: CEFCCVCCIC-TickIC

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 62.2 mm
Depth: 109.8 mm
Height: 24.5 mm
Weight: 65 g

Packaging content

Number of products included: 1 pc(s)

Packaging data

Package width: 153 mm
Package depth: 213 mm
Package height: 68 mm
Package weight: 420 g

Logistics data

Shipping (inner) case length: 32.6 cm
Shipping (inner) case width: 23.3 cm
Shipping (inner) case height: 36 cm
Shipping (inner) case net weight: 4.26 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 316.4 kg
Master (outer) cases per pallet (air): 60 pc(s)
Products per pallet (air): 600 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 110 cm
Pallet height (air): 194 cm
Pallet gross weight (sea): 316.4 kg
Master (outer) cases per pallet (sea): 60 pc(s)
Products per pallet (sea): 600 pc(s)
Pallet height (sea): 194 cm
Shipping (inner) case gross weight: 4.94 kg
Harmonized System (HS) code: 85044095
