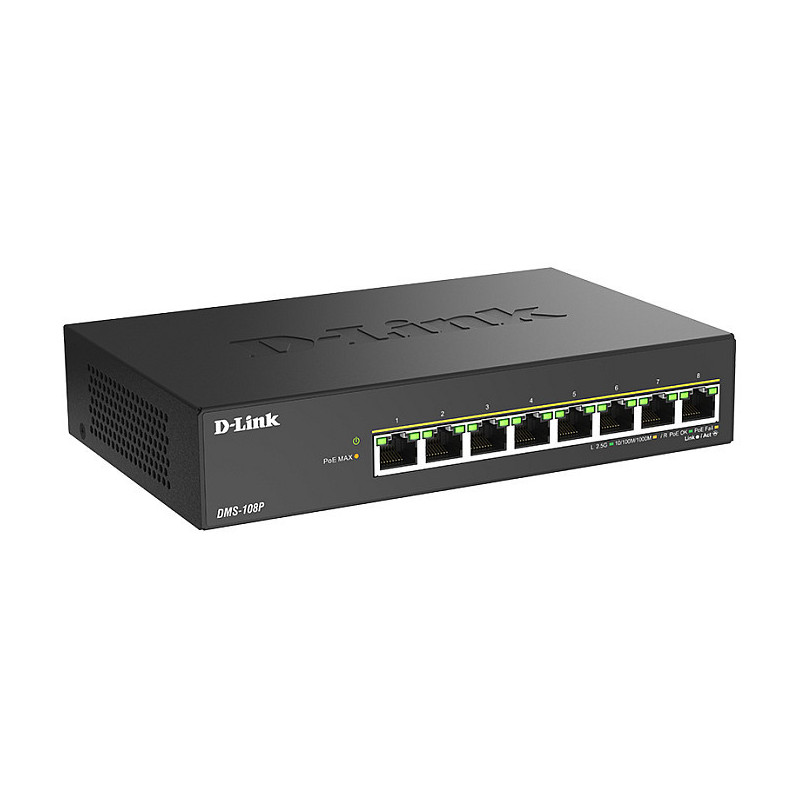

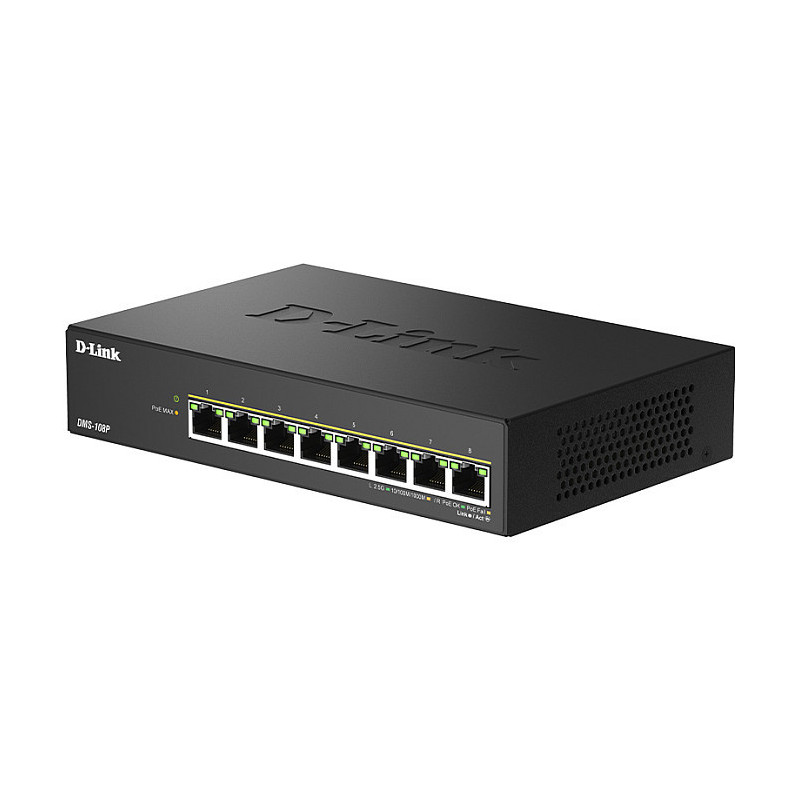

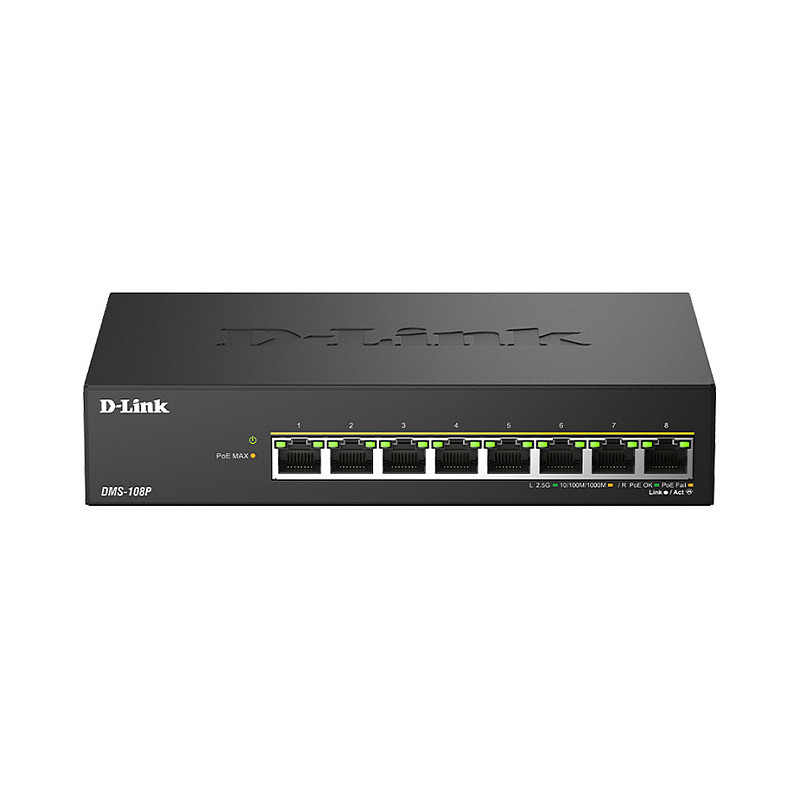

D-Link DMS-108P / E network switch

D-Link 8-Port 2.5G Multi-Gigabit PoE++ Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u,.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE)

Plug & Play
No complex configurations required for fast and easy network connectivity

Multi-Gigabit
Multi-Gigabit ports for high data rate transmission

High Power Budget
230W PoE total budget to power more devices

IEEE802.3bt
Up to 90W per port enables high-power devices (PD)

Multicast Optimization
IGMP snooping feature prevents network flooding

Silent Operation
Fanless design for a noise-free working environment

Unleash Wi-Fi 6 via 2.5G Ports
As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

Small Size, Big Power
The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.

Smarter Multicast, Smoother Performance
The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

Prioritize Traffic for Optimized Performance
With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support
Feature: Traffic classification

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

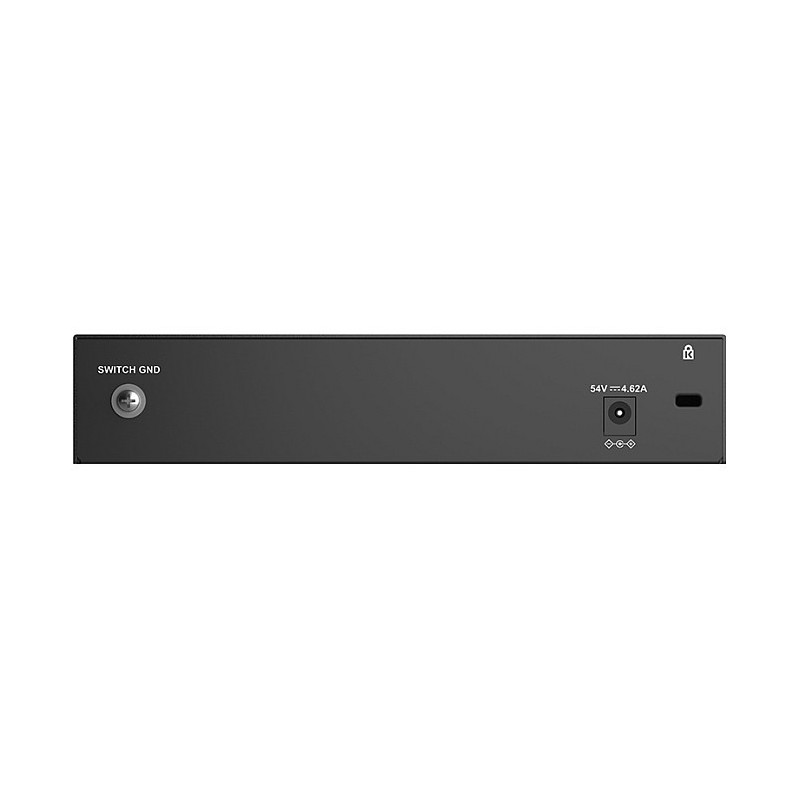

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward

Design

Feature: Stackable
Product colour: Black
LED indicators: Yes

Performance

Mean time between failures (MTBF): 140688261 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 54 V
Input current: 4.62 A
Power consumption (max): 261.02 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE) power per port: 90 W
Total Power over Ethernet (PoE) budget: 290 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 890.6 BTU/h

Weight & dimensions

Width: 190 mm
Depth: 120 mm
Height: 38 mm
Weight: 753 g

Certificates

Certification: CB; UL; LVD; FCC; VCCI; IC; BSMI
