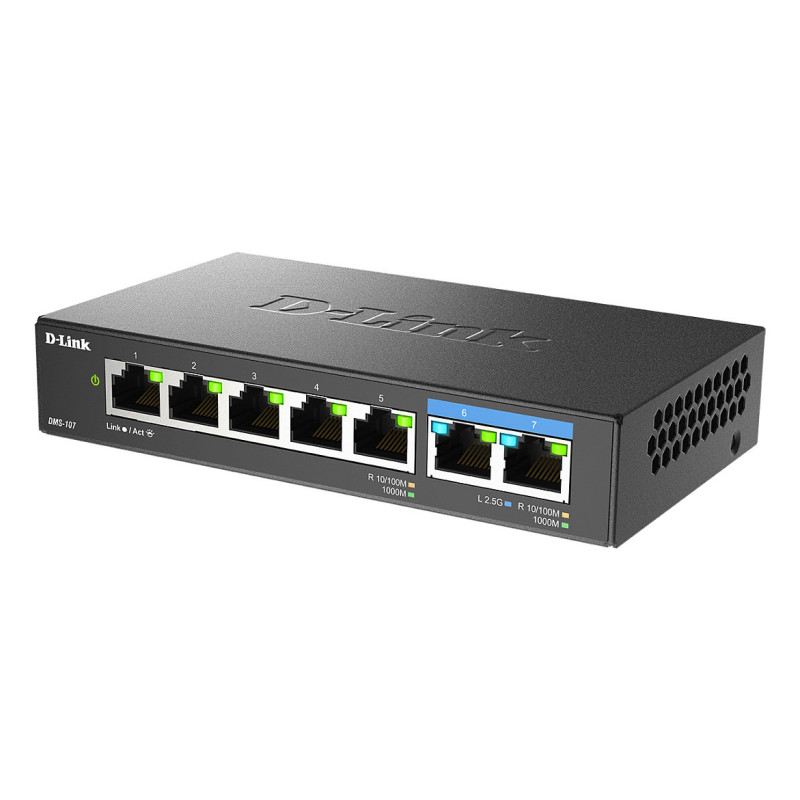

D-Link DMS-107 / E network switch

D-Link 7-Port Multi-Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

Experience multi-Gigabit Ethernet speeds.
The DMS-107 is a multi-Gigabit Ethernet plug-and-play switch that provides ultra-fast connectivity to your network core or network-attached storage (NAS) device. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity

Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network

Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation

Energy Efficient Design
Automatic power saving features to reduce power usage

Ready for Wi-Fi 6.

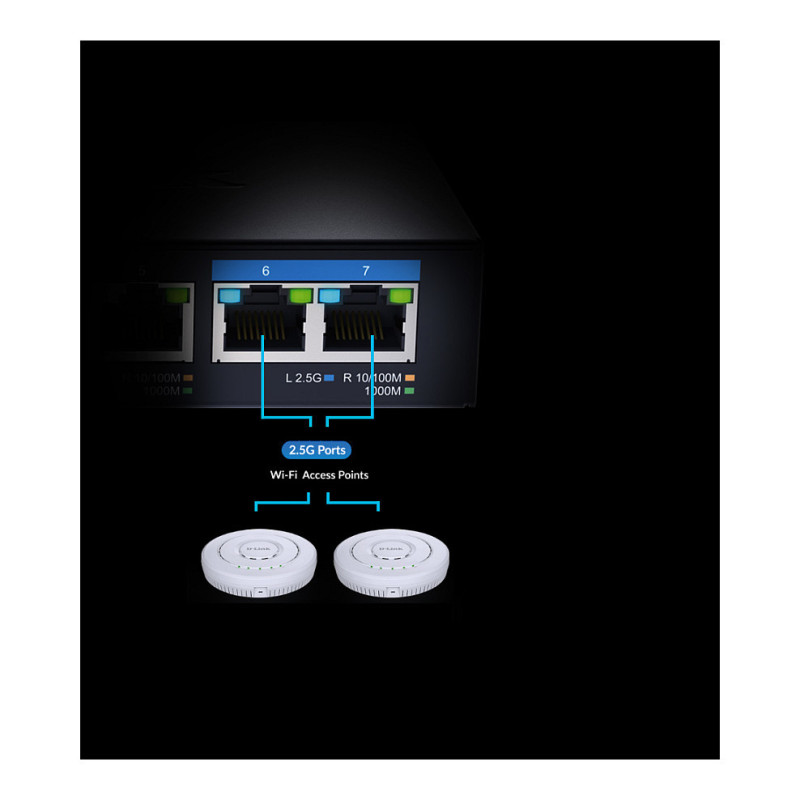

It comes with multi-Gigabit ports for maximum throughput and performance - ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations. The multi-Gigabit ports eliminate potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds on uplink ports, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The switch's 802.1p Quality of Service (QoS) functionality on Gigabit ports automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Plug-and-pay convenience.
The DMS-107 is a plug-and-play device that requires no advanced technical configuration. Plug-and-play makes it easy to instantly create a network connected to the internet.

Designed for life, built to last.
The DMS-107 features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DMS-107 is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
2.5G Ethernet (copper) ports quantity: 2

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: MAC address auto-learning supported

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Number of queues: 8
Packet buffer memory: 2 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, Power

Performance

Feature: Fanless
Mean time between failures (MTBF): 944277.78 h

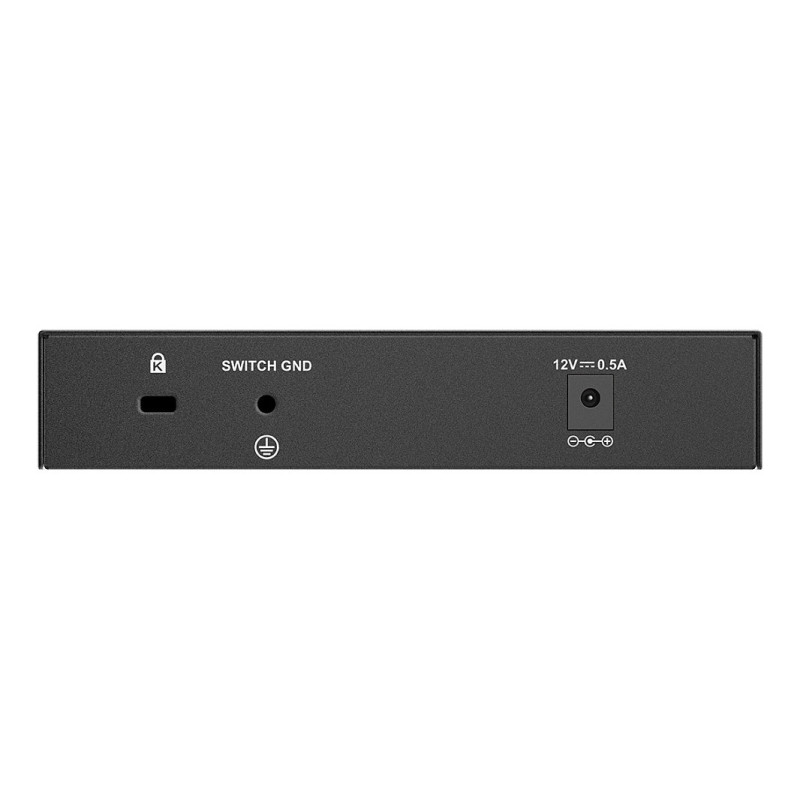

Power

Power source: DC
DC input voltage: 12 V
Input current: 0.5 A
Power consumption (typical): 3.37 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 14.28 BTU/h

Weight & dimensions

Width: 145 mm
Depth: 28 mm
Height: 82 mm
Weight: 295.2 g

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: BSMI, CE, Low Voltage Directive (LVD), RoHS
