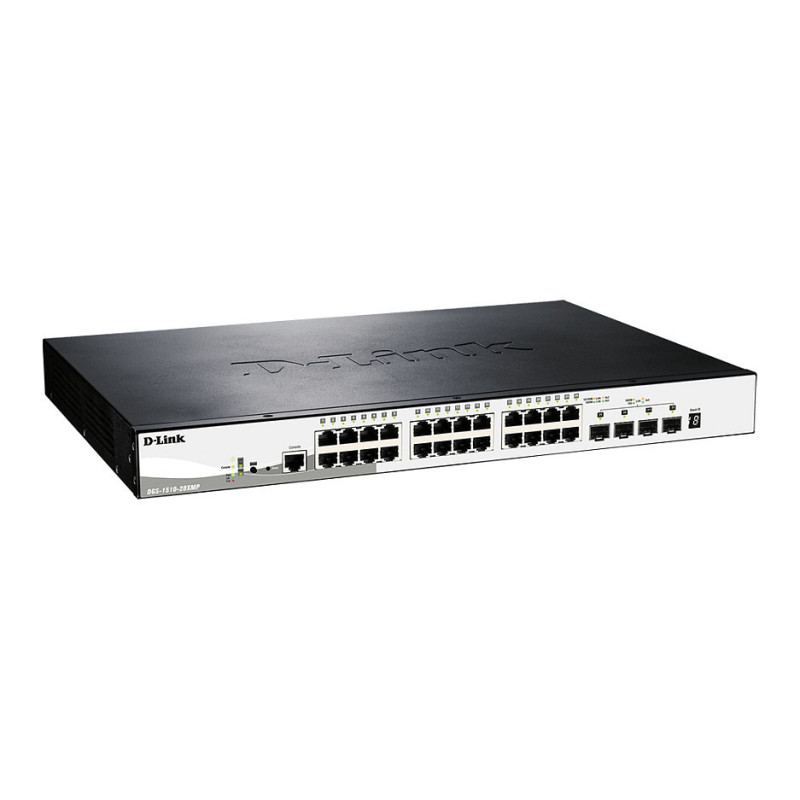

D-Link DGS-1510-28XMP

D-Link DGS-1510-28XMP. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16384 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

Industry Standard CLI with 10G SFP+ stacking
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.

Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.

10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1

With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.

Powerful Network Design and Management Software
The DGS-1510 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.

Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Traffic classification
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Fiber optic connector: SFP+

Network

Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: VLAN support
Virtual LAN features: Tagged VLAN, Protocol-based VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 128 Gbit/s
Throughput: 95.24 Mpps
MAC address table: 16384 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP server, DHCP client
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 768
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS, EAP, SNMP, SSH, SSH-2, SSL/TLS
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Authentication: MAC-based authentication, Port-based authentication

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black, Grey
LED indicators: Activity, Link, PoE, Power, Speed
Number of fans: 2 fan(s)
Safety: cUL, CB

Performance

Feature: Built-in processor
Processor frequency: 400 MHz
Internal memory: 256 MB
Flash memory: 32 MB
Mean time between failures (MTBF): 274796 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (max): 436.3 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 1487.78 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 308.5 mm
Height: 44 mm
Weight: 4.25 kg

Packaging data

Package width: 450 mm
Package depth: 510 mm
Package height: 121 mm
Package weight: 7.06 kg

Technical details

Shipping (inner) case height: 48.5 cm
Shipping (inner) case width: 38.5 cm
Shipping (inner) case length: 53 cm
Shipping (inner) case net weight: 14.3 kg
Products per shipping (inner) case: 3 pc(s)
Pallet gross weight (air): 561.6 kg
Master (outer) cases per pallet (air): 24 pc(s)
Products per pallet (air): 72 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 2.08 m
Pallet gross weight (sea): 561.6 kg
Master (outer) cases per pallet (sea): 24 pc(s)
Products per pallet (sea): 72 pc(s)
Pallet height (sea): 2.08 m
Shipping (inner) case gross weight: 22.6 kg

Logistics data

Harmonized System (HS) code: 85176990
