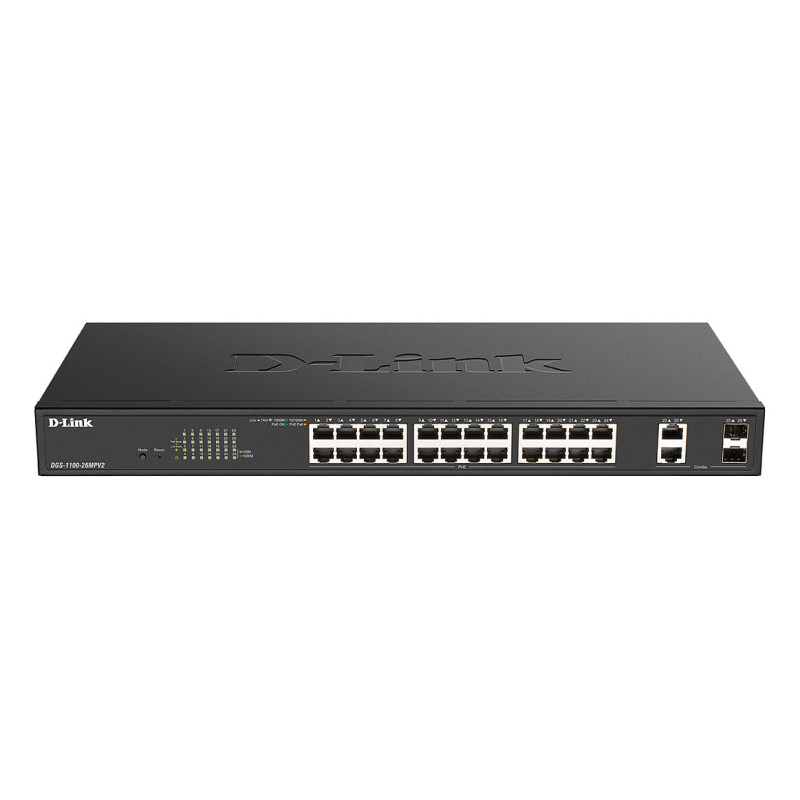

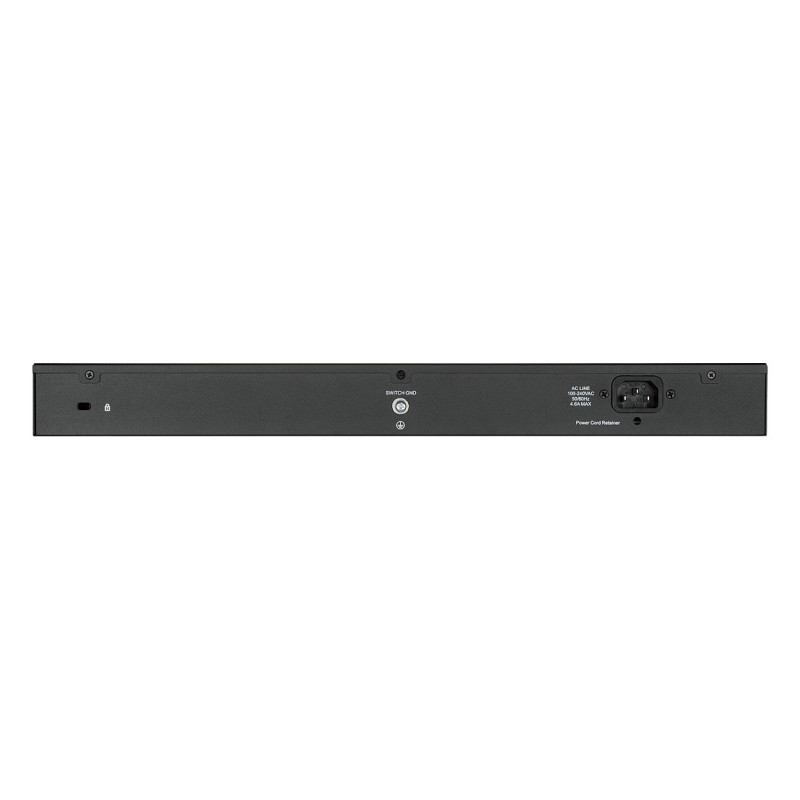

D-Link DGS-1100-26MPV2 / E network switch

D-Link DGS-1100-26MPV2/E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Easy to Deploy and Manage
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

PoE and Poe+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology: 10GBASE-T, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Voice VLAN

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 38.69 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support

Security

DHCP features: DHCP client
Feature: IGMP snooping
Security algorithms: SSL/TLS
Feature: MAC address filtering
Feature: Static port security

Multicast features

Feature: Multicast support
IPv4 multicast entries: 1
IPv6 multicast entries: 1
Number of multicast groups filtered: 1

Protocols

IPv4 & IPv6 features: IPv4 FIB

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal

Performance

Flash memory: 16 MB
Noise level: 50.5 dB
Feature: Fanless
MTBF (PoE): 317.777 h

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
Power consumption (max): 454.1 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Heat dissipation: 287 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 208 mm
Height: 44 mm
Weight: 2.8 kg

Logistics data

Harmonized System (HS) code: 85176990
