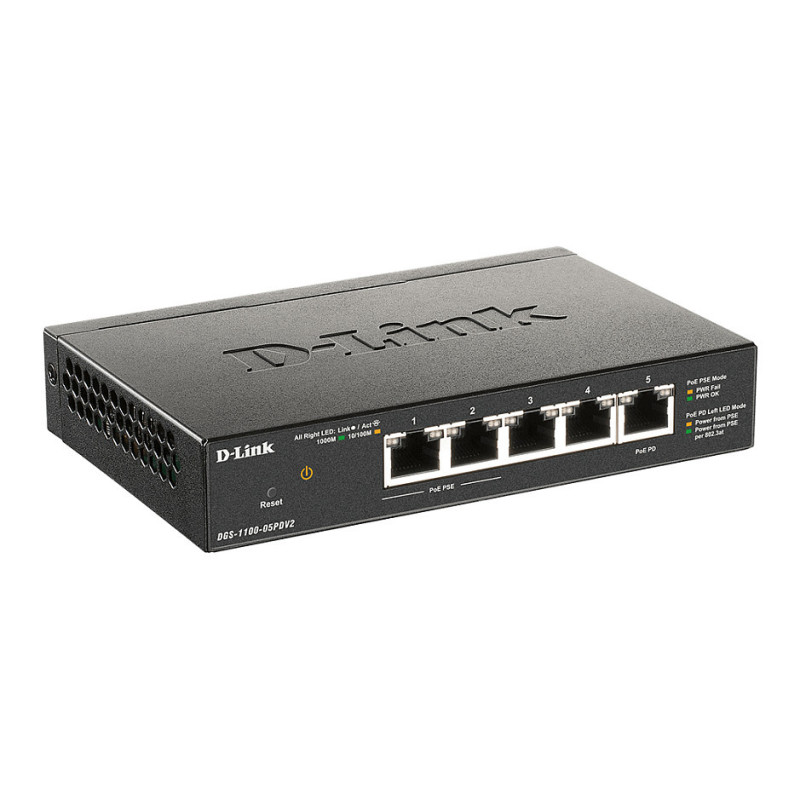

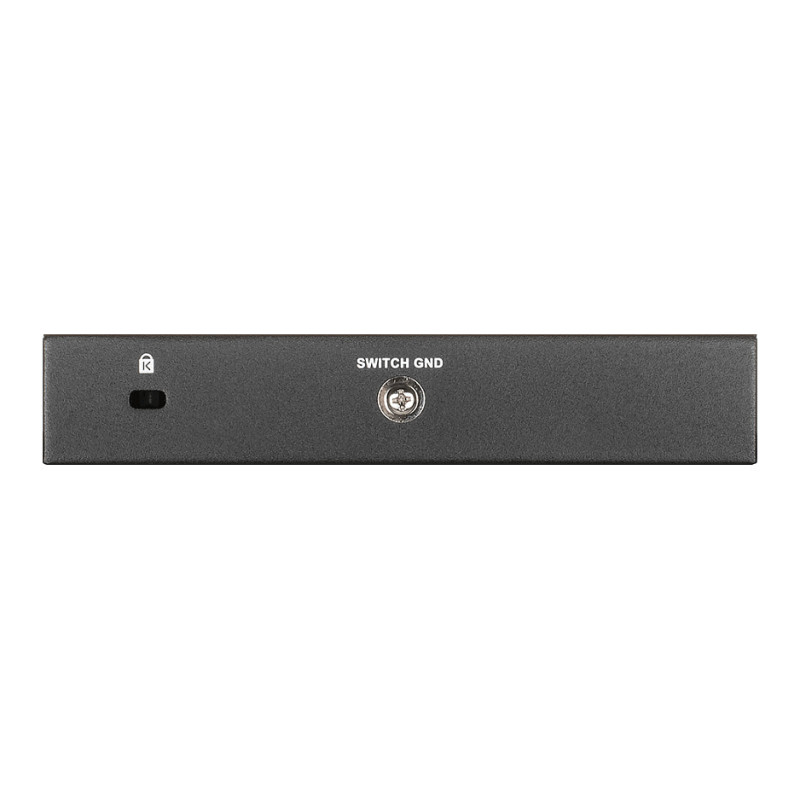

D-Link DGS-1100-05PDV2 network switch

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Advanced Security Features
The DGS-1100 series' web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities

Simplify Network Management
D-Link's free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 10000 Mbit/s
Feature: Auto-negotiation
Feature: VLAN support
Virtual LAN features: Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Number of trunks: 1
Number of queues: 4
Jumbo frames: 9216
Packet buffer memory: 1 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
IGMP entries: 128
Feature: Static port security
Feature: SSH/SSL support
Queue scheduling algorithms: Weighted Round Robin (WRR)
MAC address entries: Static MAC address entries

Design

Product colour: Black

Performance

Flash memory: 2 MB
Noise level: 0 dB
Feature: Fanless
Mean time between failures (MTBF): 2357475 h

Power

Power source: PoE
Power consumption (typical): 3.24 W
Power consumption (max): 24.08 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 2
Power over Ethernet (PoE) power per port: 18 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 150 mm
Depth: 97 mm
Height: 28 mm
Weight: 380 g

Certificates

Compliance certificates: BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Logistics data

Harmonized System (HS) code: 85176990
