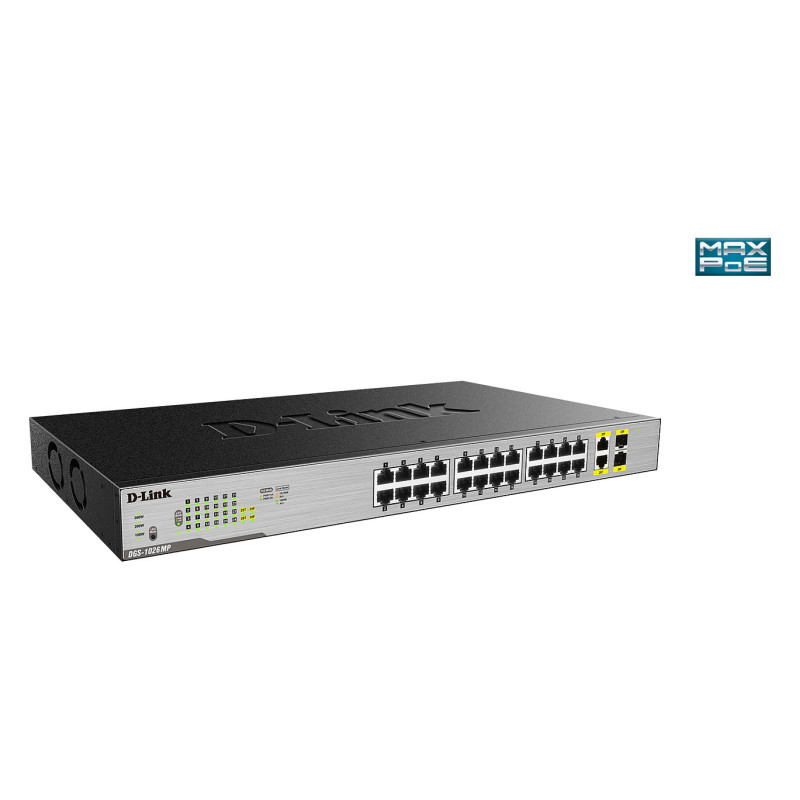

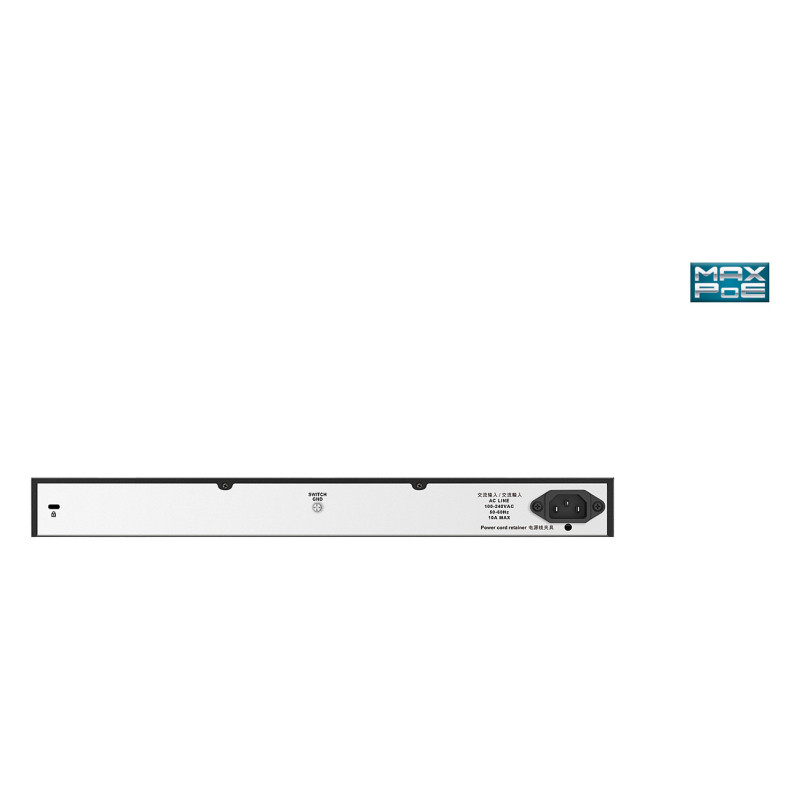

D-Link DGS-1026MP network switch

D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting

26 Port Gigabit Max PoE Switch

DGS-1026MP

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 52 Gbit/s
Throughput: 38.69 Mpps
Forwarding rate: 38.69 Mpps
MAC address table: 8192 entries
Feature: Store-and-forward
Packet buffer memory: 0.512 MB

Design

Feature: Rack mounting
Product colour: Black, Grey
LED indicators: Activity, Link, PoE, Power, Power fail, Speed
Number of fans: 2 fan(s)
Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1

Performance

Buffer size: 512 KB
Mean time between failures (MTBF): 205975 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 444.1 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1515 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 250.4 mm
Height: 44 mm
Weight: 3.1 kg

Packaging data

Package width: 388 mm
Package depth: 506 mm
Package height: 90 mm
Package weight: 3.7 kg

Technical details

Shipping (inner) case height: 41 cm
Shipping (inner) case width: 20.5 cm
Shipping (inner) case length: 52 cm
Shipping (inner) case net weight: 8.39 kg
Products per shipping (inner) case: 2 pc(s)
Pallet gross weight (air): 281.8 kg
Master (outer) cases per pallet (air): 30 pc(s)
Products per pallet (air): 60 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 136.5 cm
Pallet gross weight (sea): 369.8 kg
Master (outer) cases per pallet (sea): 40 pc(s)
Products per pallet (sea): 80 pc(s)
Pallet height (sea): 177.5 cm
Shipping (inner) case gross weight: 8.79 kg

Certificates

Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
Certification: FCC Class ACECCCRoHSVCCIBSMIRCM

Logistics data

Harmonized System (HS) code: 85176990
