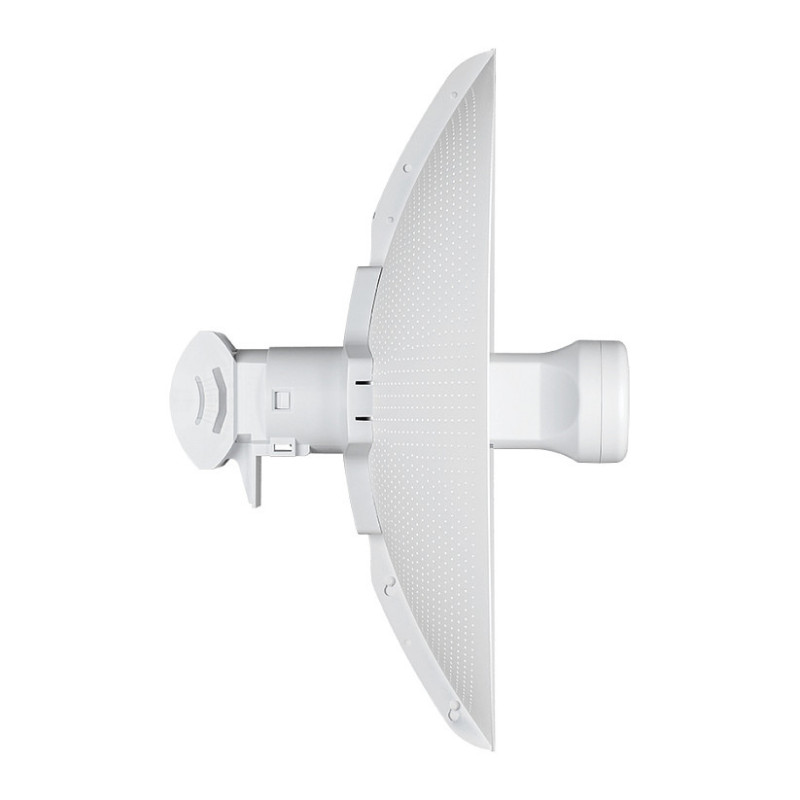

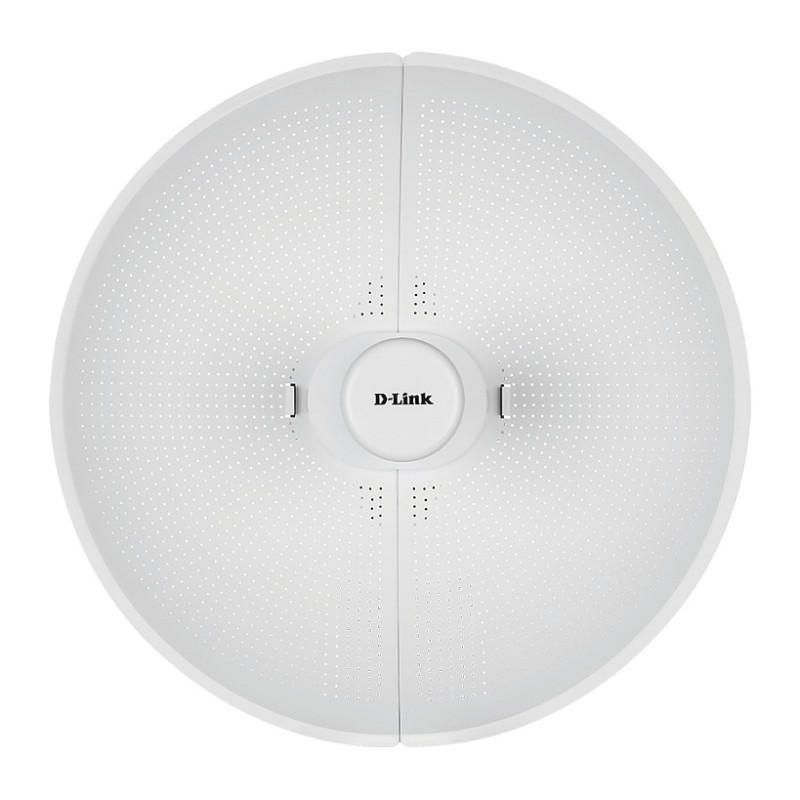

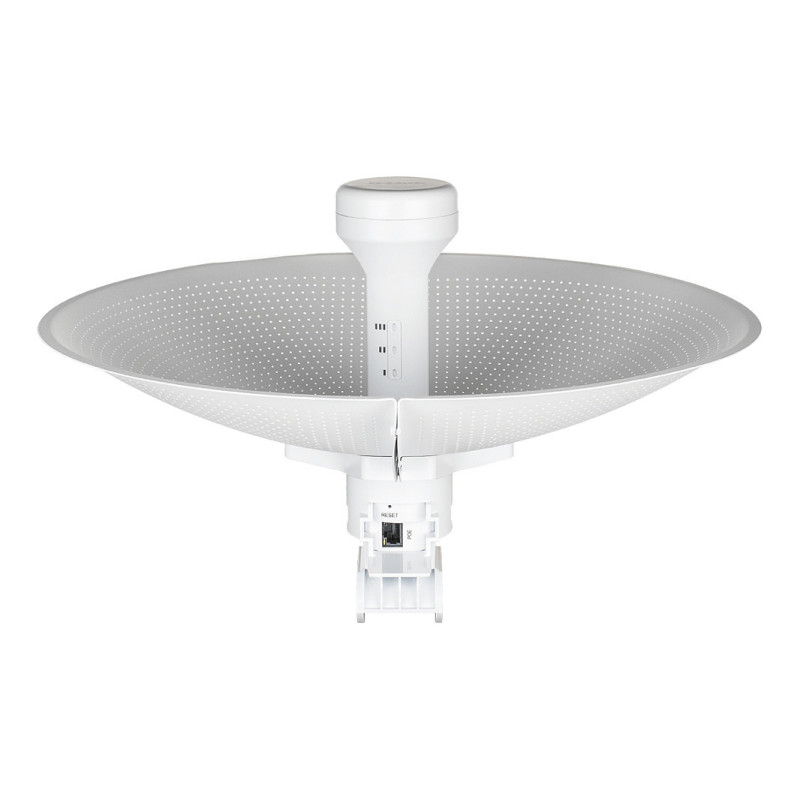

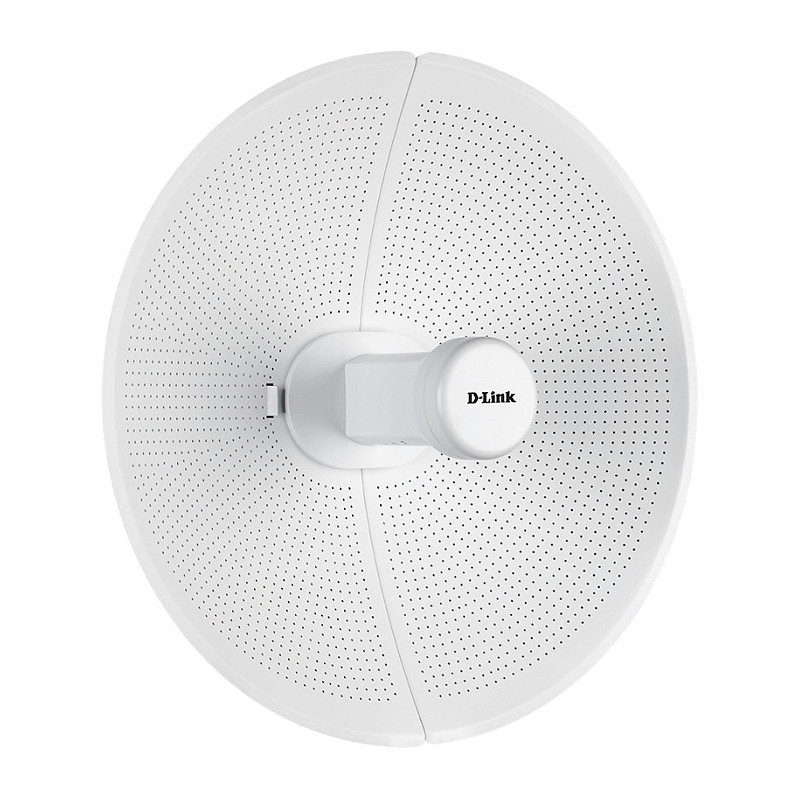

D-Link DAP-3712 bridge / repeater

D-Link 20km Long Range Wireless AC Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 20000 m. Antenna design: External, Antenna gain level (max): 23 dBi. Wi-Fi band: Single-band (5 GHz), WLAN data transfer rate (max): 867 Mbit/s, Frequency band: 5.180 - 5.825 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired Wireless
The power to deliver connectivity over an even longer distance.
The DAP-3712 is the essential infrastructure wireless solution in providing high-speed connectivity to what was previously believed to be impossible-to-reach rural areas and challenging terrain.
High-Gain Directional Antenna
Fast, stable, and long-range wireless coverage for up to 20 km
TDMA Technology
High speeds and consistent coverage that filters out interference
IP66 Rated
Water-resistant and dust-tight housing boasts a longer product life
Point-to-Point and Point-to-Multipoint
Distribute connectivity to single or multiple locations wirelessly over long distances
8 kV Surge Protection
Your device and network are protected against unexpected surges, such as lightning
High-Speed Wi-Fi
Blazing speeds of up to 867 Mbps
Wi-Fi Security
128-bit personal and enterprise wireless encryption
PoE Ready
Power over Ethernet makes for an easier installation with a single cable
Designed for Wireless ISPs
Rapid and cost-effective Internet distribution to get customers connected
The power to withstand tough weather
The DAP-3712 is enclosed in an unobtrusive IP66-rated housing, protecting it from rain and dirt. With built-in 8 kV surge protection, the DAP-3712 has protection against unexpected surges (such as lightning strikes), enabling it to be deployed where it's needed, even in harsh environments and tough conditions.
Bring connectivity to areas with limited or no access to fixed internet.
The DAP-3712 features state-of-the-art hardware, including powerful high-gain 23 dBi directional antennas that effortlessly extend the coverage of 5GHz wireless AC speeds of up to 867Mbps to distances of up to 20 km away.
Consistent coverage that filters out interference
The DAP-3712 supports TDMA technology, creating a schedule for the bridge's access point and the client. The sender and receiver are allocated a time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving the transfer rate.
Simple installation with Power over Ethernet (PoE)
The DAP-3712 comes with a PoE injector included. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.

Data transmission

Maximum data transfer rate: 867 Mbit/s
Maximum transfer distance: 20000 m

Antenna

Antenna design: External
Antenna gain level (max): 23 dBi
Antennas quantity: 1

Wireless LAN features

Wi-Fi: Yes
Wi-Fi band: Single-band (5 GHz)
WLAN data transfer rate (max): 867 Mbit/s
Frequency band: 5.180 - 5.825 GHz
Signal strength: 27 dBm
Channels quantity: 2 channels

Network

Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Static IP: Yes

Ports interfaces

Connectivity technology: Wired Wireless
Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: 128-bit AES
MAC address filtering: Yes

Management features

Web-based management: Yes
DHCP client: Yes

Features

Product type: Network bridge
Material: Acrylonitrile butadiene styrene (ABS)
Mounting type: Pole
Product colour: White
LED indicators: Signal strength
Automatic Transmit Power Control (ATPC): Yes
Reset button: Yes
International Protection (IP) code: IP66
Surge protection: Yes

Power

Power source type: PoE
Power consumption (typical): 15 W
Power consumption (max): 15 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) voltage: 48 V

Operational conditions

Operating temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 90%
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)
Certification: CE, FCC

Weight dimensions

Width: 372 mm
Depth: 241 mm
Height: 372 mm
Weight: 900 g

Packaging data

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85176990
