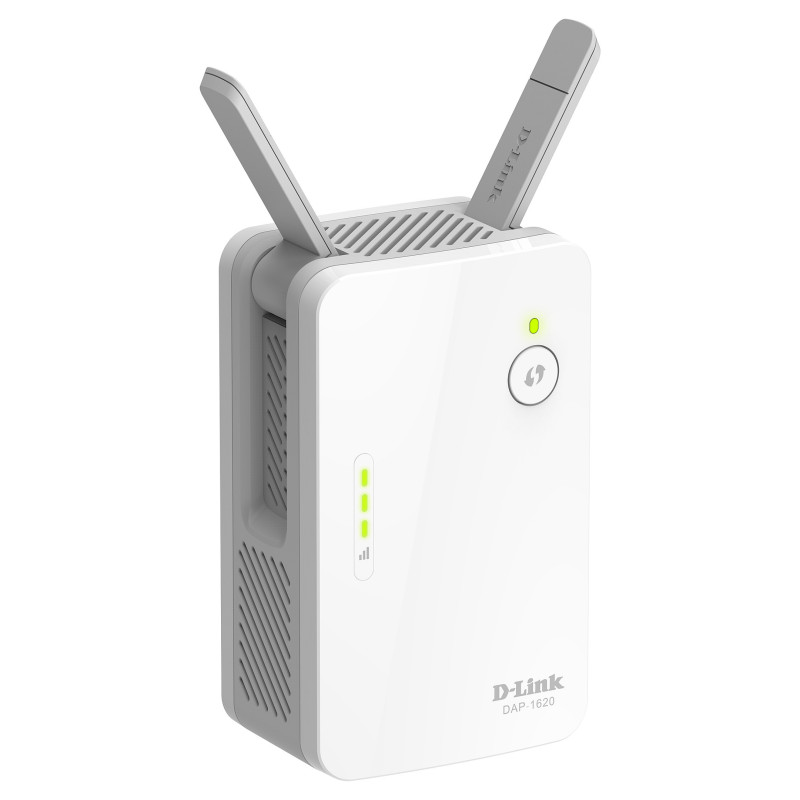

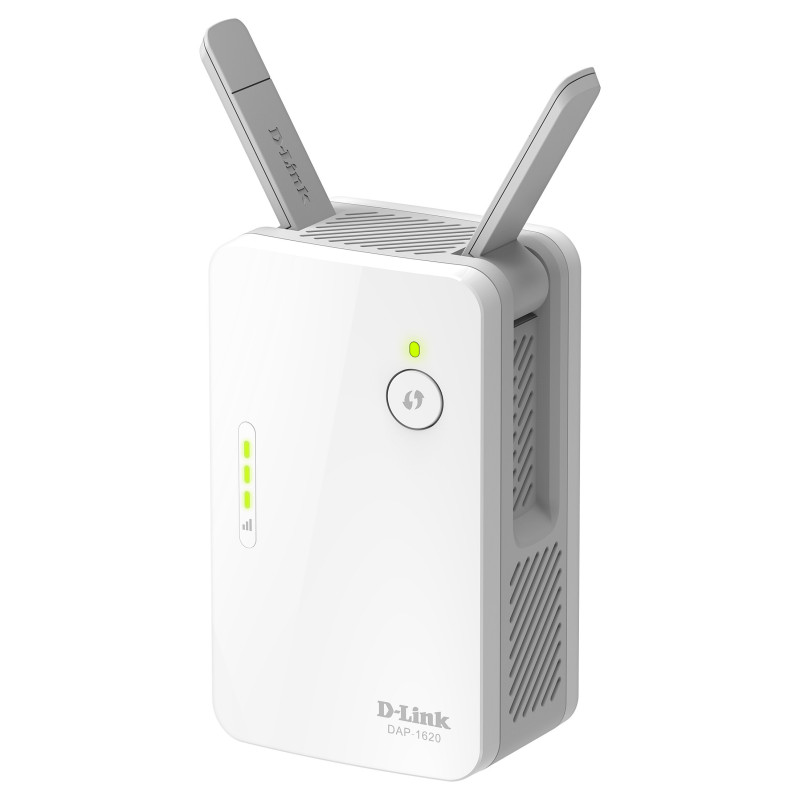

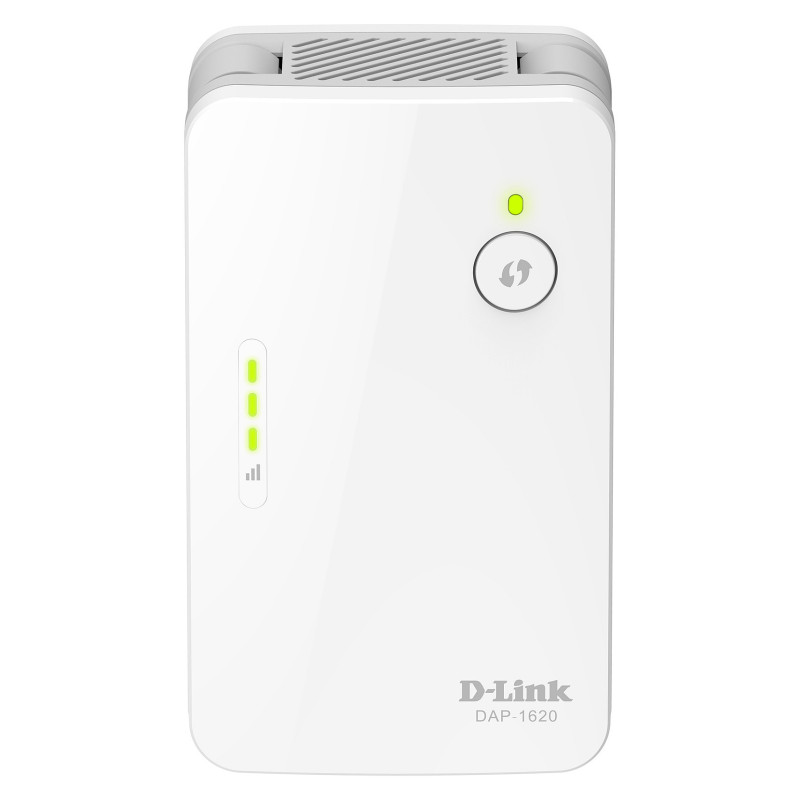

D-Link DAP-1620 / E network extender

D-Link DAP-1620/E. Type: Network repeater. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac, Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n). Product colour: White, Certification: FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified. AC input voltage: 110-240 V, AC input frequency: 50 - 60 Hz. Width: 120 mm, Depth: 59 mm, Height: 42 mm

The DAP-1620 AC1200 Wi-Fi Range Extender is a portable plug-in repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 1200 Mbps, yet fits in the palm of your hand.

Easy to Set Up, Easy to Use
Set up is simple. There is no need for a computer as you can use the supported QRS Mobile app on your iPhone, iPad, or iPod touch or Android mobile device to set up the DAP-1620 easily. Alternatively, you can use one-touch configuration by pushing the WPS push-button on the DAP-1620 and on the router or AP you want to extend, and the DAP-1620 will automatically configure itself for you. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

Extend Your Wireless Network
Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a blazing-fast, reliable wireless connection. Alternatively, use the built-in Gigabit Ethernet port and your home's existing wired Ethernet cabling to extend wireless coverage without worrying about signal strength.

Compact, Convenient Design
This compact device is ideal for use at home or a small office, as it does not take up much space and is ready to use by simply plugging it in. The bright Signal Indicator LED makes finding a suitable location a cinch. Its diminutive wall-plug design easily saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.

Performance

Type: Network repeater
Feature: WPS push button

Antenna

Antennas quantity: 2

Network

Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac
Feature: Wi-Fi
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max): 1200 Mbit/s
Security algorithms: WPA, WPA2, WPS

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: White
LED indicators: Yes
Feature: Reset button
Certification: FCC, IC, CE, C-Tick, CB, UL, Wi-Fi Certified

Power

AC input voltage: 110-240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 120 mm
Depth: 59 mm
Height: 42 mm
Weight: 139 g

Packaging data

Package width: 104 mm
Package depth: 161 mm
Package height: 94 mm
Package weight: 300 g

Logistics data

Shipping (inner) case height: 19.2 cm
Shipping (inner) case width: 22.9 cm
Shipping (inner) case length: 49.7 cm
Shipping (inner) case net weight: 3 kg
Products per shipping (inner) case: 10 pc(s)
Pallet gross weight (air): 267.6 kg
Master (outer) cases per pallet (air): 70 pc(s)
Products per pallet (air): 700 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 110 cm
Pallet height (air): 147.9 cm
Pallet gross weight (sea): 371.9 kg
Master (outer) cases per pallet (sea): 100 pc(s)
Products per pallet (sea): 1000 pc(s)
Pallet height (sea): 2.06 m
Shipping (inner) case gross weight: 3.46 kg
Harmonized System (HS) code: 85176990
