Cudy WE3000 network card

Cudy WE3000. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2402 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

Bluetooth 5.2 Technology
Equipped with Bluetooth 5.2 technology, offering twice the speed and four times the range of Bluetooth 4.2. Experience stable, multi-device connectivity for game controllers, headphones, and keyboards with minimal latency.

Windows 10/11 64-bit Compatible
The device is usually driver-free on newer Windows 10/11 64-bit systems, while the driver is available for download on the Cudy official website.

Latest Wi-Fi Encryption
With WPA3, the latest Wi-Fi encryption protocol, your network is better protected against brute-force attacks for safer connections.

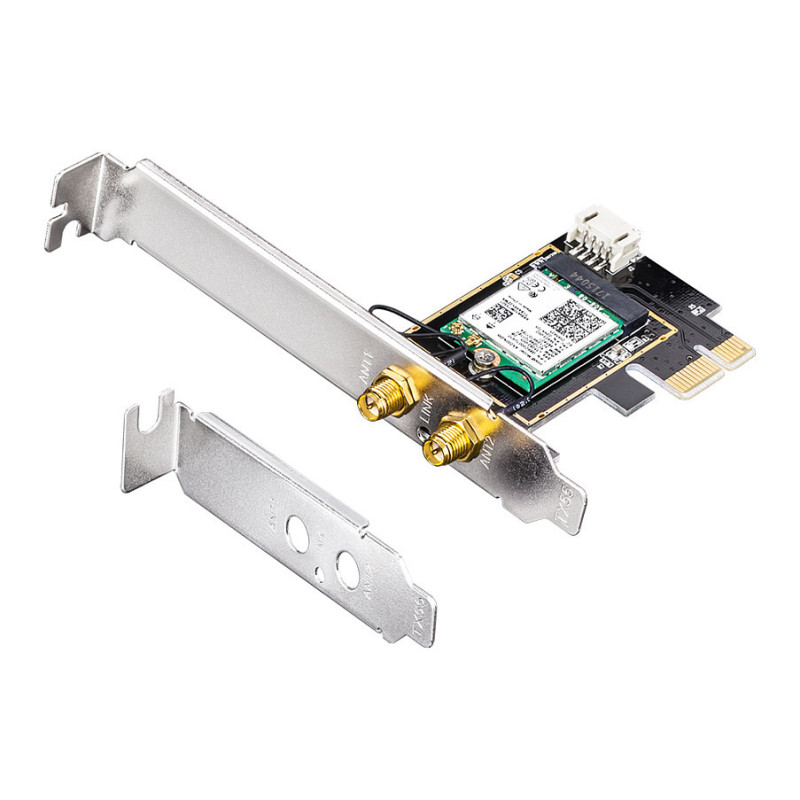

Standard and Lower Brakets Included

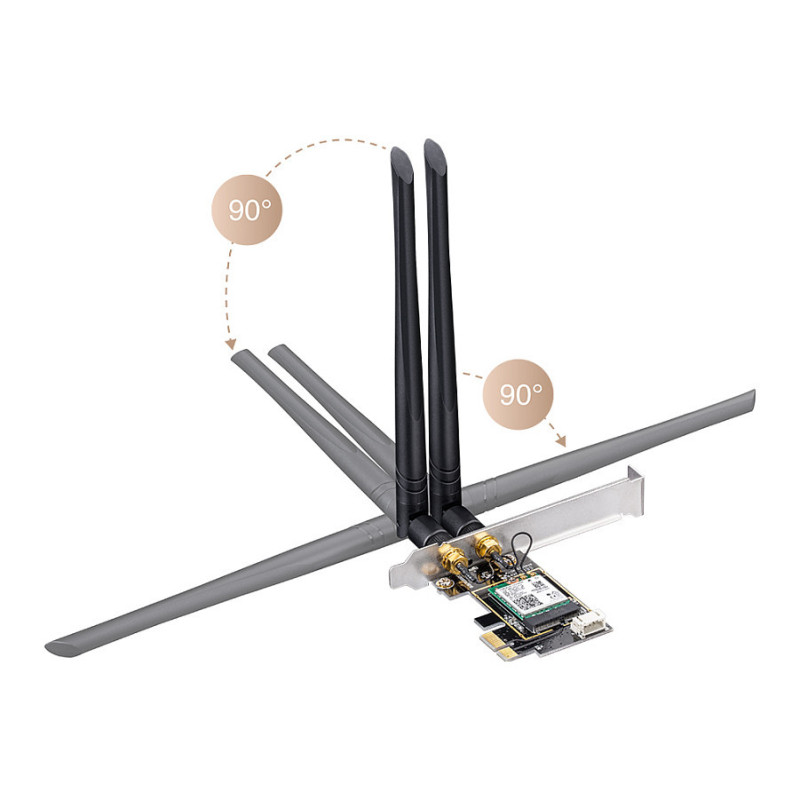

Suitable for both standard tower PCs and low-profile HTPC builds. Install the antennas and position them vertically facing your router for the optimal signal quality.

Compatible with Mainstream Motherboards
The Wi-Fi and powering requires a PCI-E 1x, 4x, 8x, or 16x slot on the motherboard. The Bluetooth function requires a USB 9-Pin connector on the motherboard.

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth
PCI Card form factor: Full-height (low-profile)

Network

Maximum data transfer rate: 2402 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported: 574,2402 Mbit/s
Mobile network generation: Not supported
Spread spectrum method: OFDMA
Security algorithms: WPA3, WPA2, WPA
Feature: Bluetooth
Bluetooth version: 5.2
LAN controller: Intel AX210

Design

Component for: PC
Product colour: Black
Feature: Internal
Antenna: Yes
Antenna design: External
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: No

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 65 mm
Depth: 45.5 mm
Height: 16 mm
Weight: 71 g

Packaging data

Package width: 230 mm
Package depth: 105 mm
Package height: 35 mm
Package weight: 197 g

Packaging content

Feature: Mounting brackets included
Feature: Bluetooth header cable
Feature: Quick installation guide
Feature: Manual

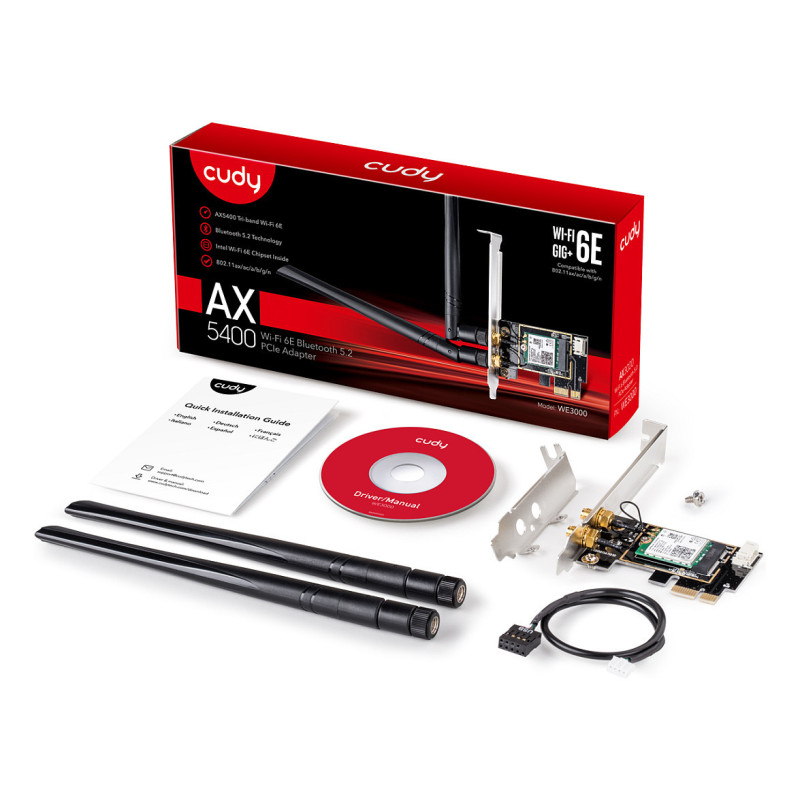

Packaging content: WE3000Detachable AntennasBluetooth to 9-PIN USB CableLow-Profile BracketInstallation Guide
Manual languages: Multi

Features

Product languages: Multi

Technical details

Warranty period: 1 year(s)

Logistics data

Products per shipping (inner) case: 50 pc(s)

Other features

Bracket height: Low-Profile (LP) / Full-Height (FH)
