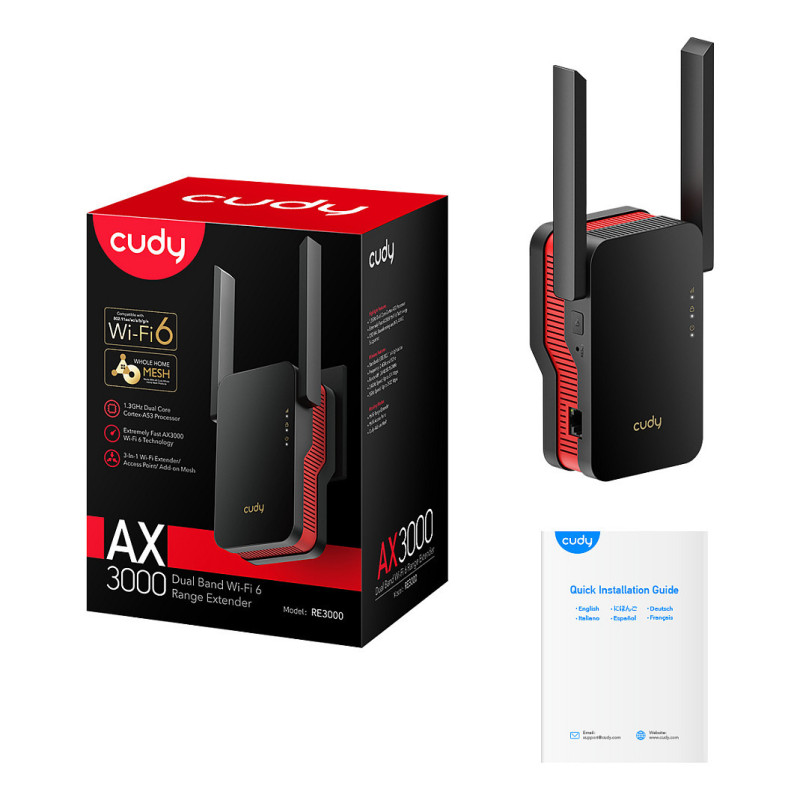

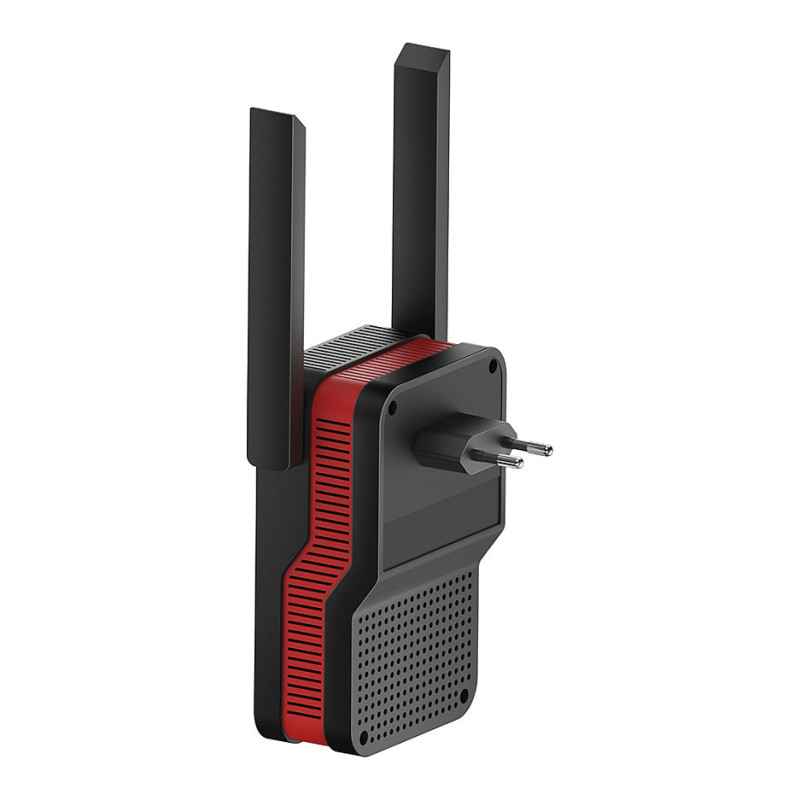

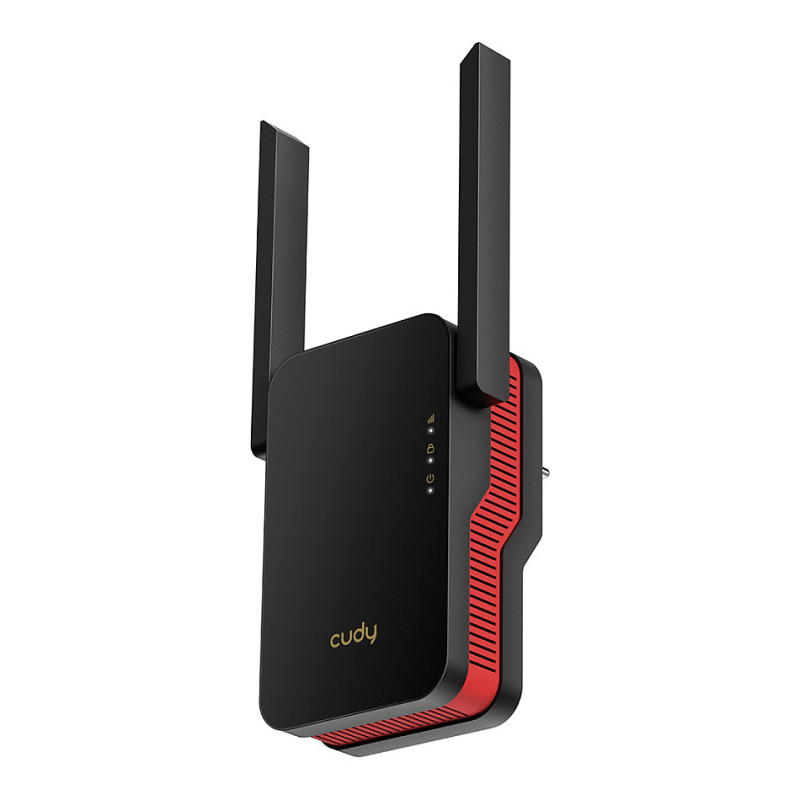

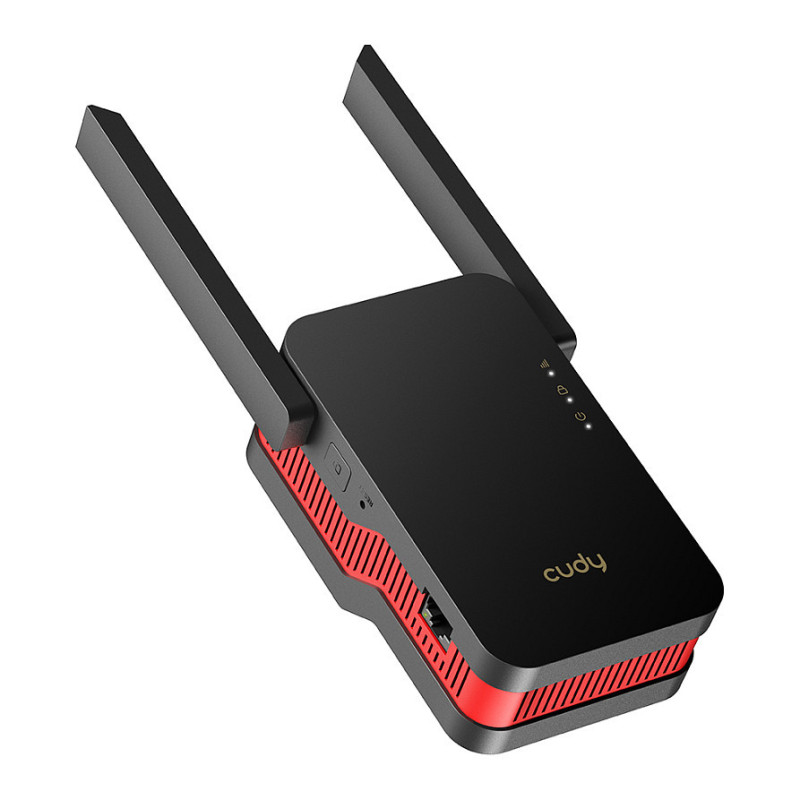

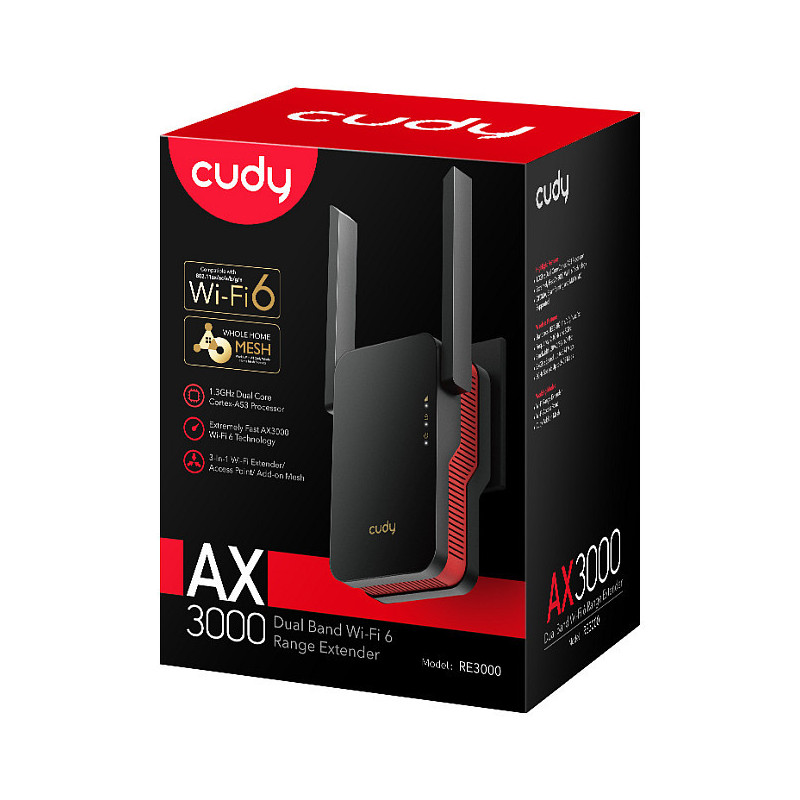

Cudy RE3000 network extender

Cudy RE3000. Type: Network repeater, Maximum transfer distance: 150 m, Data transfer rate: 2402 Mbit/s. Antenna type: Internal & external. Ethernet LAN interface type: Gigabit Ethernet, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Product colour: Black, Red, LED indicators: Power, WPS, Wi-Fi. AC input voltage: 100 - 240 V

Direction Detected, Signal Boosted
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.

Connect More, Stay Fast
The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, transmitting a massive amount of data for multiple devices in no time. This reduces the latency and enhances Wi-Fi capacity, enabling more immersive online gaming and smoother video calling.

A range extender featuring high-capacity AX3000 WiFi 6 and a Gigabit Ethernet port. Press WPS buttons to expand existing Wi-Fi instantly.

Performance

Type: Network repeater
Maximum transfer distance: 150 m
Data transfer rate: 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: BeamForming
Feature: WPS push button

Antenna

Antennas quantity: 3
Antenna type: Internal & external

Network

Ethernet LAN interface type: Gigabit Ethernet
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
WLAN data transfer rates supported: 574,2402 Mbit/s
Feature: MU-MIMO technology
Security algorithms: WPA, WPA2, WPA3
Feature: Web-based management

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: Black, Red
LED indicators: Power, WPS, Wi-Fi
Feature: Reset button

Power

AC input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 129.6 mm
Depth: 48.6 mm
Height: 80 mm
Weight: 279 g

Packaging data

Package width: 161 mm
Package depth: 120 mm
Package height: 96 mm
