Cudy POE400 PoE adapter

Cudy POE400. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 56 V, Output power: 90 W, AC adapter input voltage: 100 - 240 V. Width: 178.5 mm, Depth: 80 mm, Height: 46 mm. Number of products included: 1 pc(s)
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af/bt. Max 90W Output.
The generous 90W power budget easily supports a wide range of devices, including high-power clients like PTZ cameras with heaters, multi-screen kiosks, and advanced access control terminals.
10/100/1000 Mbps Speeds
Stream data at full speed for bandwidth-intensive clients such as access points and AV encorders/decoders with no performance loss.
Exceptional Built-Quality for Stable Operation
Protect Clients with Outstanding EMC
Robust EMC design protects itself and clients from power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 4kV, CM 4kV; RJ45 CM 4kV
Built to Last Longer with High-Quality Capacitors
Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.
Easy to Use. Plug and Play.
Auto Negotiating the Power Needed
Connect the power, switches/routers, and clients—the adapter will automatically detect the required power wattage and deliver it accordingly.
Wallmount Ready
Featuring two mounting holes on the back to allow you mount it on the walls.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cable types supported: Cat5e

Features

Product colour: Black
Feature: Wall mountable
Feature: Plug and Play
Feature: Surge protection
Maximum operating distance: 100 m
LED indicators: PoE, Power
Pin assignment polarity: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
Power protection features: Over current, Over voltage, Overload

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Power

Power over Ethernet (PoE) voltage: 56 V
Output power: 90 W

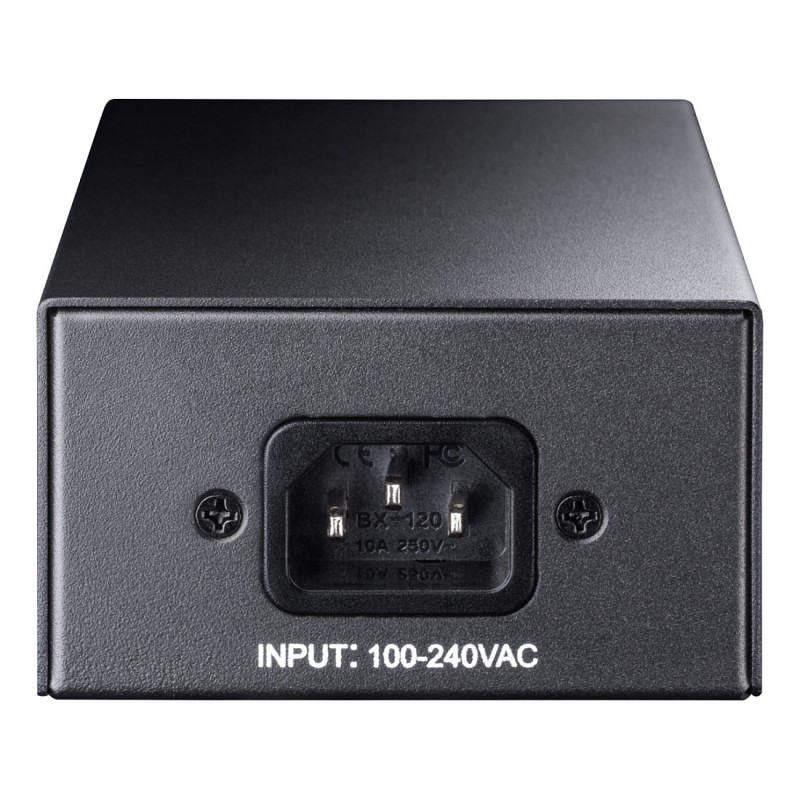

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50 - 60 Hz
Input current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Operating temperature (T-T): 14 - 113 °F
Operating relative humidity (H-H): 10 - 80%
Storage temperature (T-T): -20 - 70 °C
Storage relative humidity (H-H): 5 - 80%

Weight dimensions

Width: 178.5 mm
Depth: 80 mm
Height: 46 mm

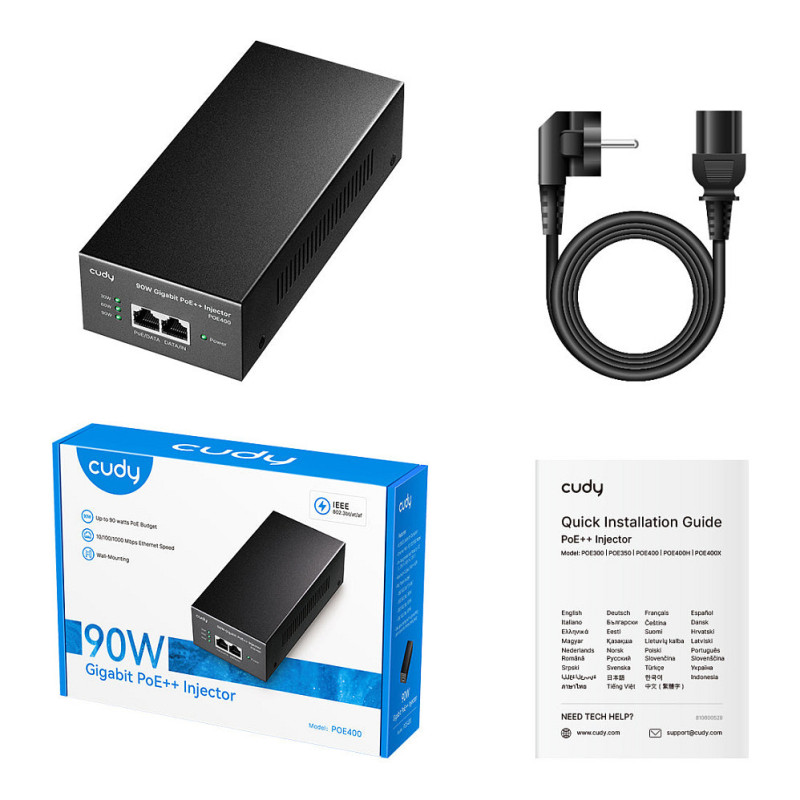

Packaging content

Number of products included: 1 pc(s)

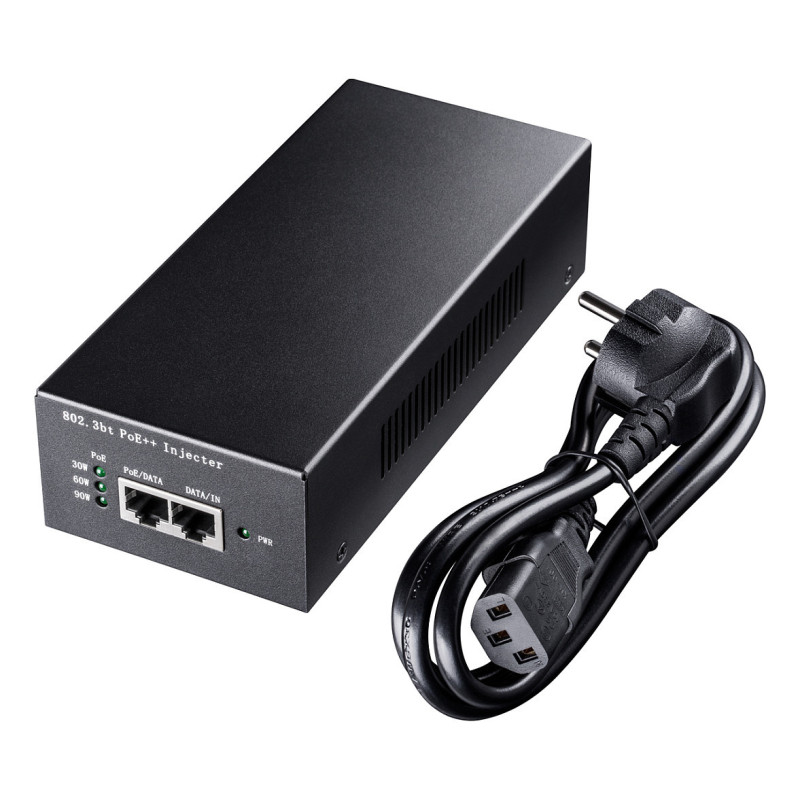

Feature: Power cord included

Packaging data

Package width: 195 mm
Package depth: 138 mm
Package height: 57 mm
