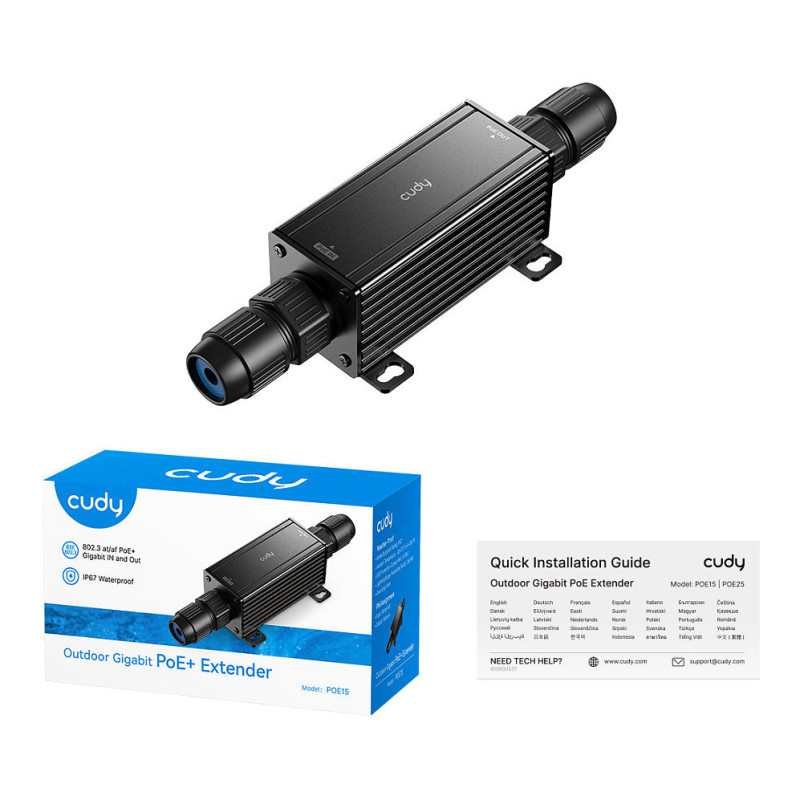

Cudy POE15 PoE adapter

Cudy POE15. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Activity, Link, PoE. Output power: 30 W, Power consumption (max): 2 W. Width: 185 mm, Depth: 45 mm, Height: 45 mm. Package width: 152 mm, Package depth: 76 mm, Package height: 54 mm

Designed for Harsh Outdoor Environment

Level 3+ EMC Protection
Keep your connection online with robust protection. Additionally featuring Polarity / Overvoltage / Short-Circuit / Automatic Voltage Regulation protection.

Works in Extreme Temperatures
Works in 70 °C (158° F) and cold (-20°C / -4° F), making it suitable for outdoor installations such as parking lots, cruise decks, national parks, and more.

High-Speed. Plug and Play.

Gigabit Speed
Provides super-fast bandwidth suitable for connecting multiple cameras, high-speed access points, speakers down the line. *Connecting mulitple clients requries additional network switch at its end.

Wall-Mount Ready

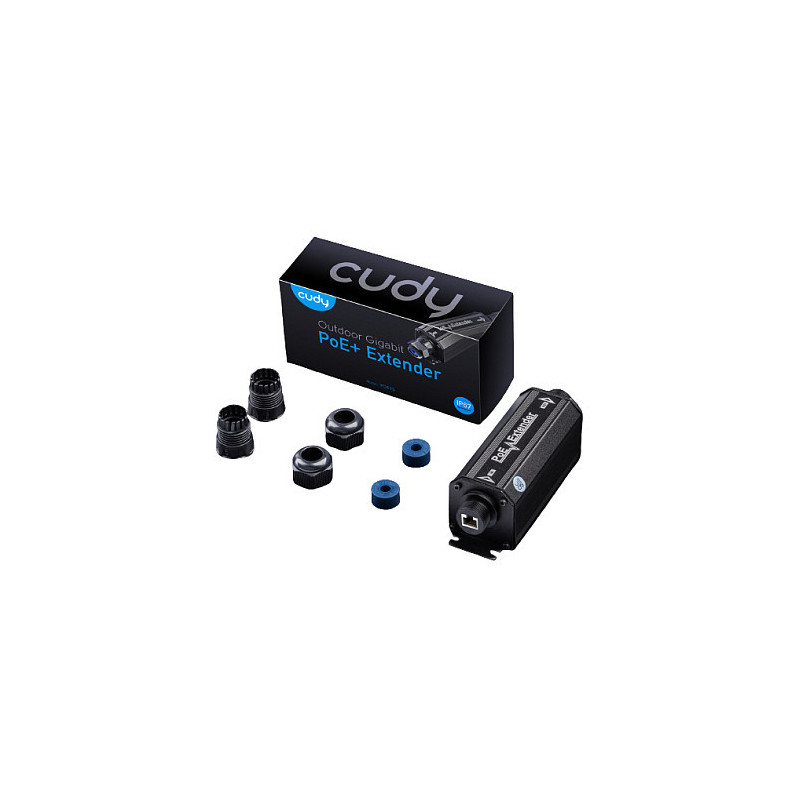

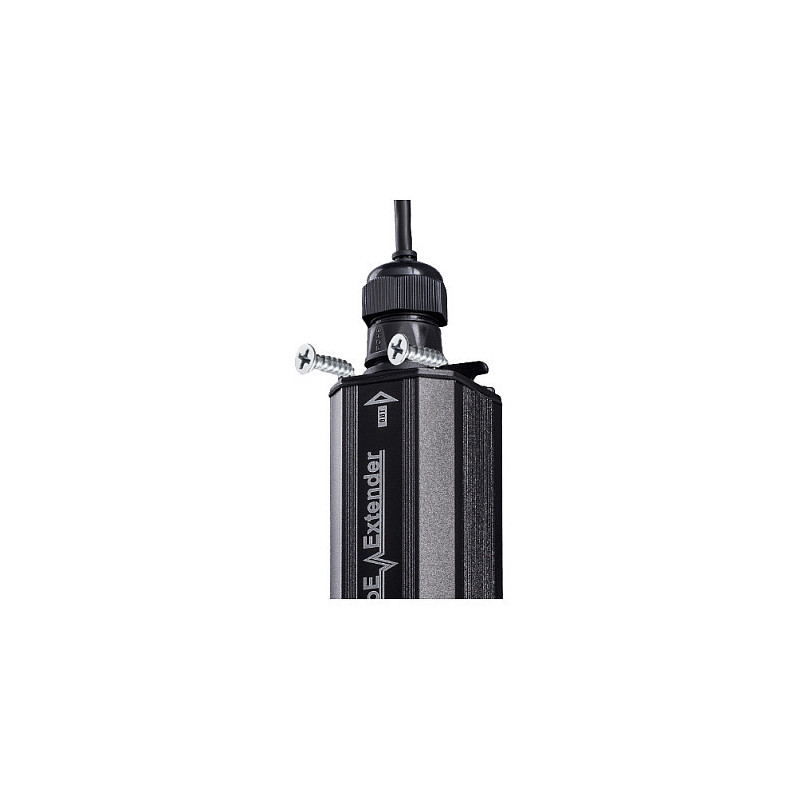

Installation is straightforward with no configuration required. Mounting screws are included in the box.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3x
Duplex system: Full, Half
Cable types supported: Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1

Features

Product colour: Black
Feature: Wall mountable
Feature: Easy to install
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Activity, Link, PoE
Pin assignment & polarity: 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
International Protection (IP) code: IP67

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Power

Output power: 30 W
Power consumption (max): 2 W

Operational conditions

Operating temperature (T-T): -22 - 55 °C
Operating temperature (T-T): -13 - 131 °F
Operating relative humidity (H-H): 10 - 100%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 185 mm
Depth: 45 mm
Height: 45 mm
Weight: 250 g

Packaging data

Package width: 152 mm
Package depth: 76 mm
Package height: 54 mm
Package weight: 307 g
Package type: Box
