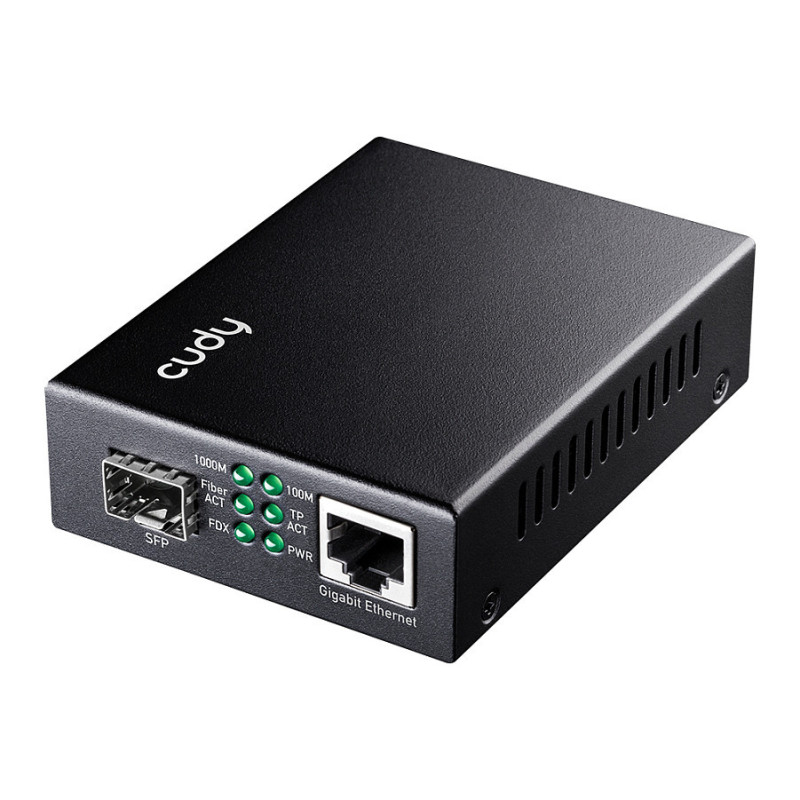

Cudy MC220 network media converter

Cudy MC220. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-TX, 1000Base-FX, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 90 - 240 V, AC input frequency: 50 - 60 Hz, Output voltage: 5 V

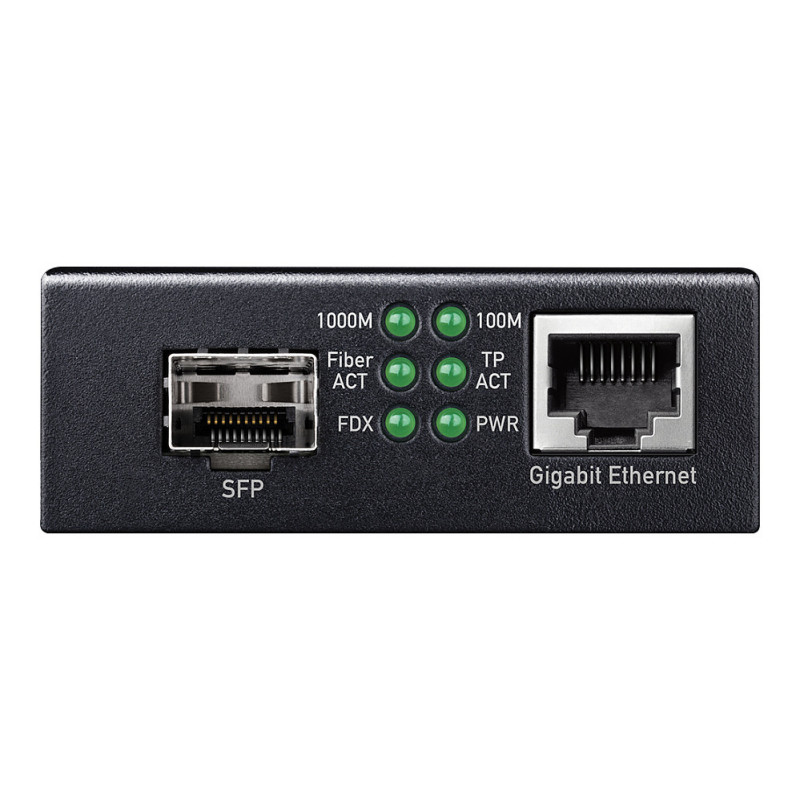

Instant Network Monitoring with Built-in LED Indicators
With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Reliable, High-Speed Transmission with No Speed Loss
The all-in-one module delivers exceptional optical and electrical performance, ensuring long-term data transmission stability.

Plug and Play, No Setup Required
Simply plug in the port, and it's ready to go—instant connection with no configuration needed. Easy to use, with fast and responsive performance.

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 1000Base-TX, 1000Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 100BASE-TX, 100BASE-FX, 1000BASE-TX
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Cable types supported: Cat5, Cat5e

Performance

Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Sensitivity: 24 dBmW
Buffer size: 9 KB
Mean time between failures (MTBF): 50000 h

Features

Feature: Plug and Play
LED indicators: Yes
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP

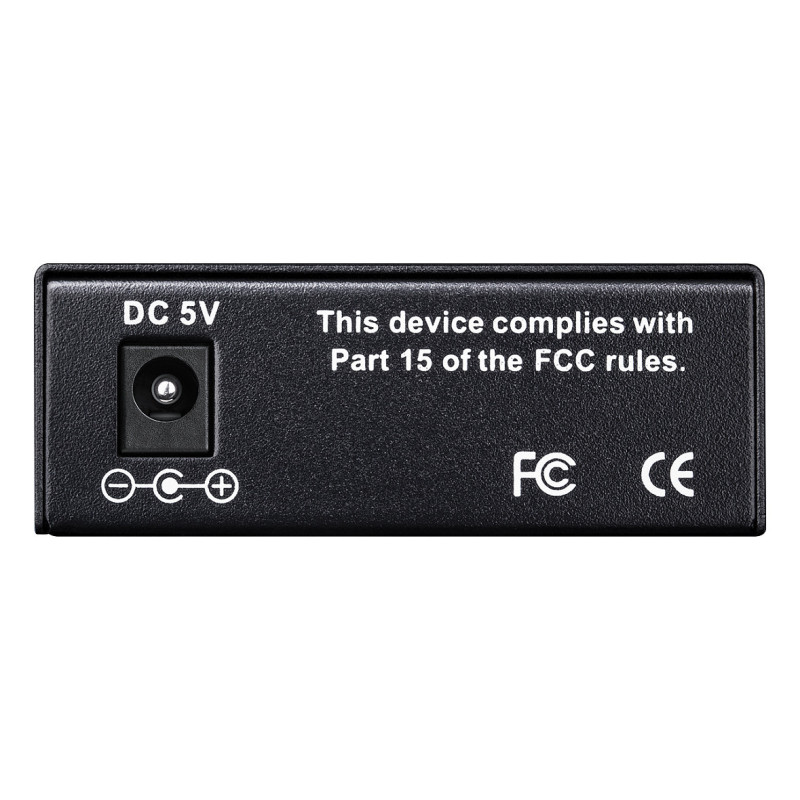

Power

Input voltage: 90 - 240 V
AC input frequency: 50 - 60 Hz
Output voltage: 5 V
Power consumption (typical): 4 W

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Operating relative humidity (H-H): 5 - 90%
