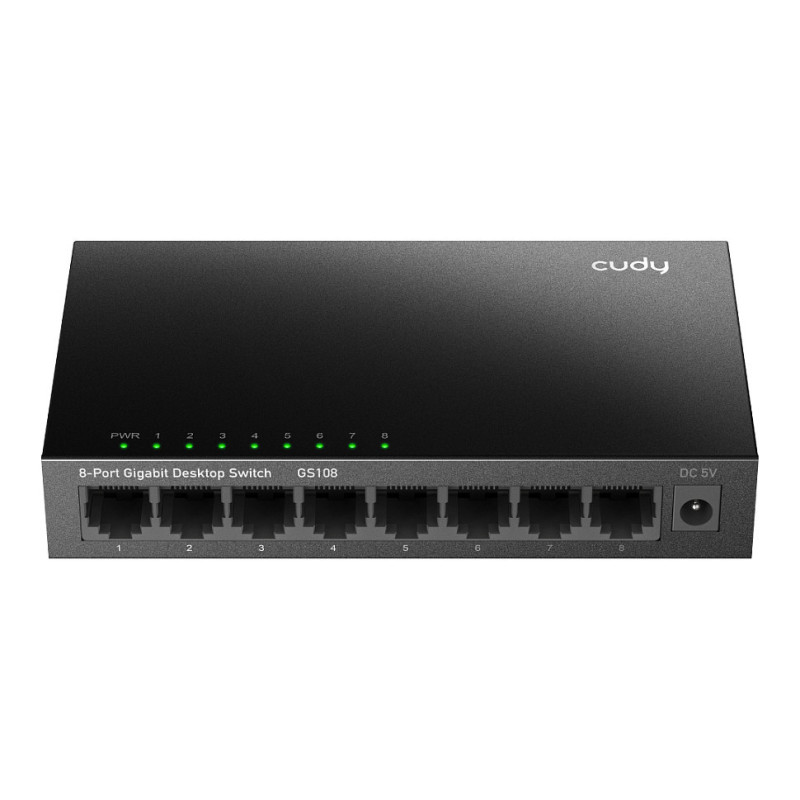

Cudy GS108 network switch

Cudy GS108. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

A Long-Distance Switch with Power Saving

Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

A Plug and Play Network Hub

Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

Robust Metal. Compact Size.
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4096 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.18 MB

Design

Product colour: Black
LED indicators: Loop, Link, Power

Performance

Mean time between failures (MTBF): 100000 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 100%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

Weight & dimensions

Width: 138 mm
Depth: 78 mm
Height: 25 mm
Weight: 300 g

Packaging content

Cables included: DC
Feature: Quick start guide

Packaging data

Package type: Box
Package width: 175 mm
Package depth: 120 mm
Package height: 63 mm
Package weight: 500 g

Logistics data

Master (outer) case width: 505 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 21 kg
Products per master (outer) case: 40 pc(s)
