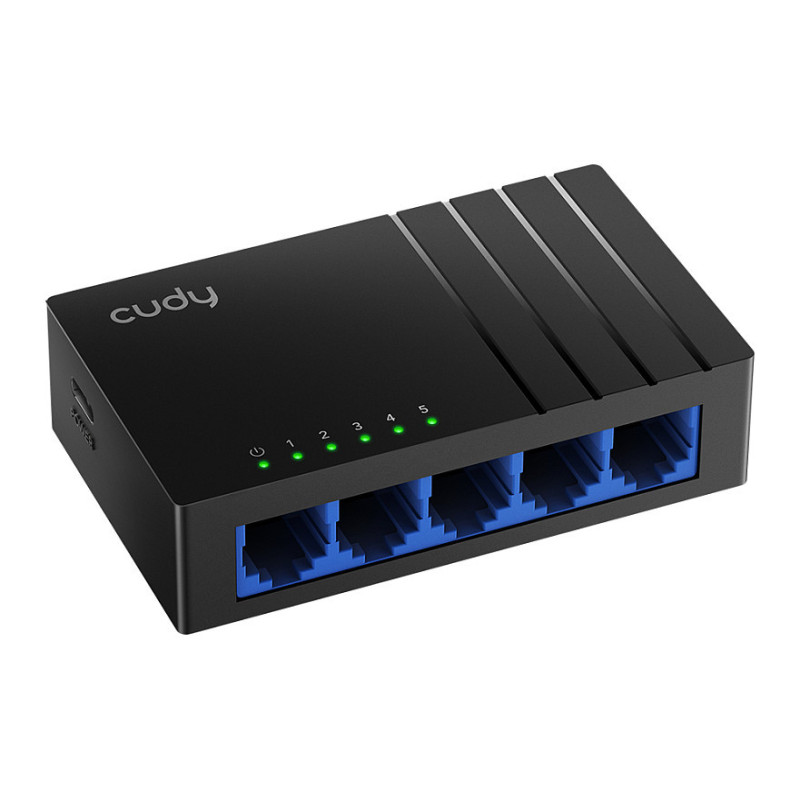

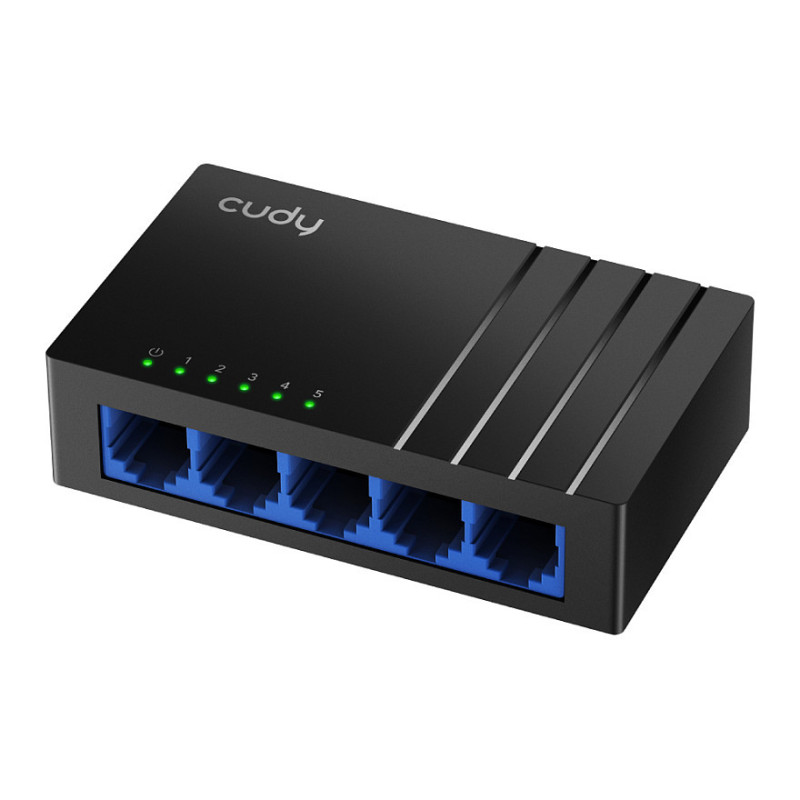

Cudy GS105D network switch

Cudy GS105D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i. DC input voltage: 5 V. Power connector: DC-in jack

No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.

A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.

A Long-Distance Switch with Power Saving

Super-Fast Gigabit
Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Compact Size. Modern Design.

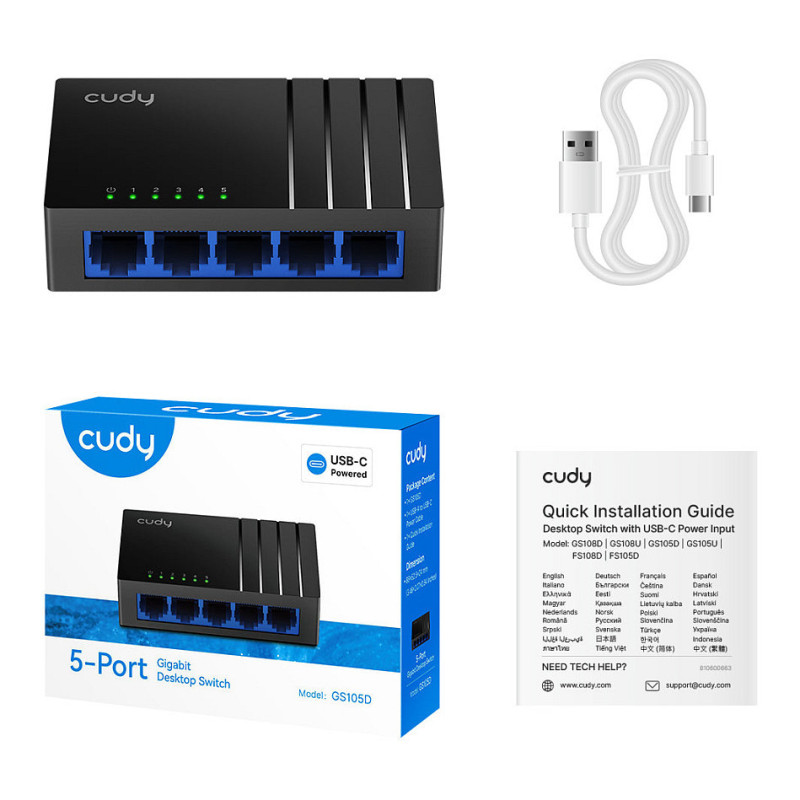

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.

Expand Network for More Devices
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

A 5-GbE long-distance switch with USB-C power input and a modern design, supporting full Gigabit speeds on all five ports over distances up to 140 m, and featuring a super-efficient chipset with idle power consumption of just 0.2 W.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
Cable types supported: Cat5, Cat5e, Cat3
Feature: Full duplex
Feature: Half duplex
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2048 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 0.375 MB

Design

Product colour: Black
LED indicators: Activity, Link, Power

Performance

Feature: Plug and Play

Power

Power source: DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 5 V
Input current: 0.55 A

Other features

Bandwidth: 1 Gbit/s

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 88 mm
Depth: 52.5 mm
Height: 24 mm
Weight: 52 g

Packaging content

Cables included: DC
Feature: Manual

Packaging data

Package type: Box
Package width: 92 mm
Package depth: 88 mm
Package height: 57 mm
Package weight: 137 g
