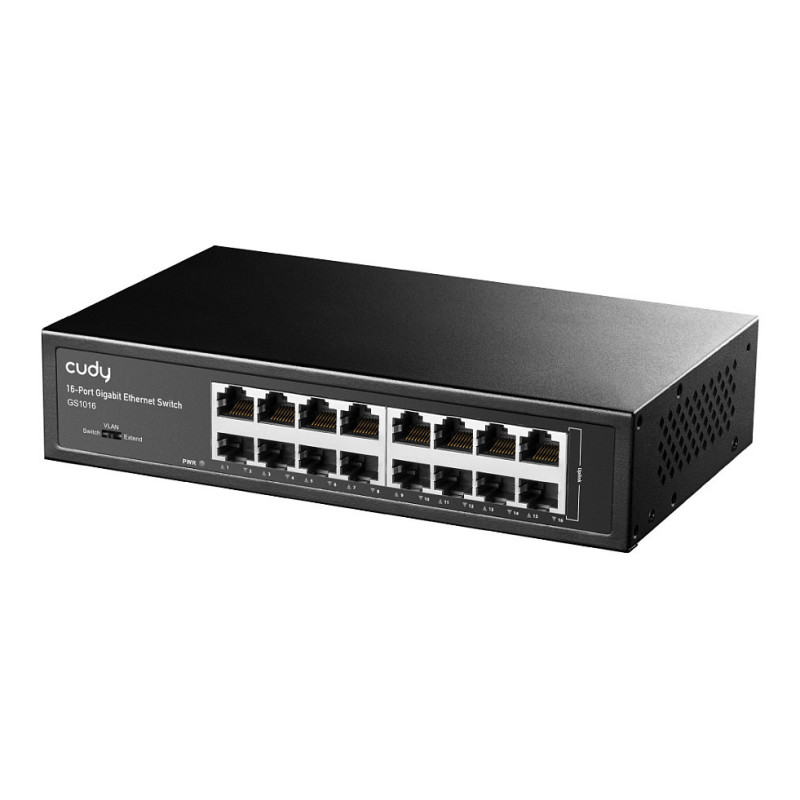

Cudy GS1016 network switch

Cudy GS1016. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

Default/VLAN/Extend Multi-Mode

VLAN Mode
Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.

Extend Mode
Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports' speed will be capped at 10 Mbps)

DSCP/802.1p QoS
Itentify the packets with DSCP headers and forward those with higher priority first.

IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention
Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation.

Fanless Cooling
Low heat generation and fanless design cater to noise-sensitive enironments.

Installation and Dimension

Mounting Brackets Included
Standard 1U Rackmount

Versatile Scenarios

Office Network
Mall Wi-Fi
Surveillance
ISP FTTB

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16

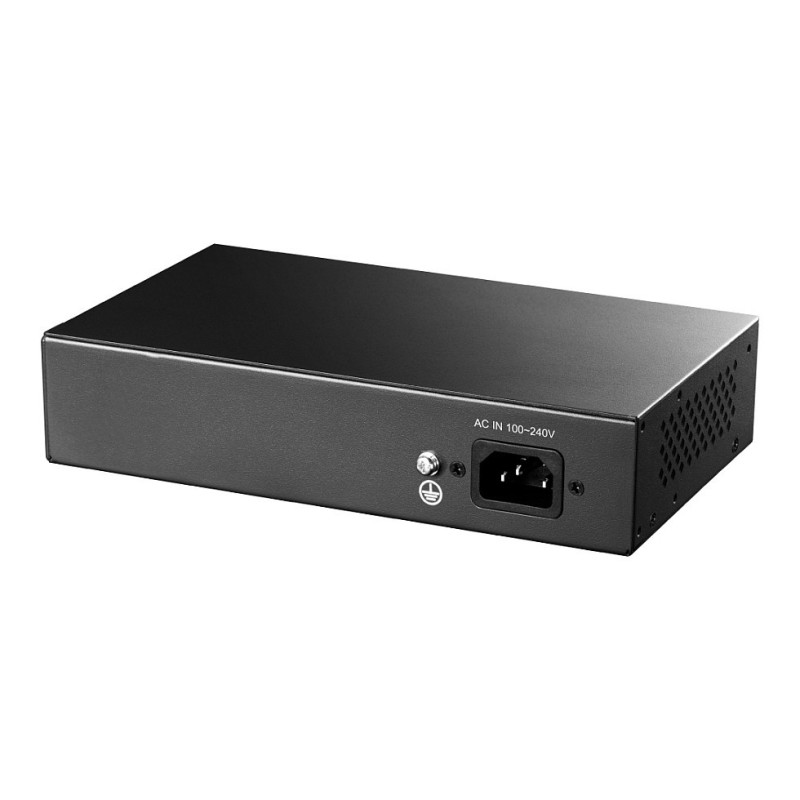

Power connector: AC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.808 Mpps
MAC address table: 8192 entries
Feature: Store-and-forward

Design

Feature: Rack mounting
Product colour: Black

Power

Power source: AC
Feature: Power supply included
AC input voltage: 90 - 260 V
AC input frequency: 50/60 Hz
Power consumption (max): 15 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 118 mm
Depth: 200 mm
Height: 44 mm

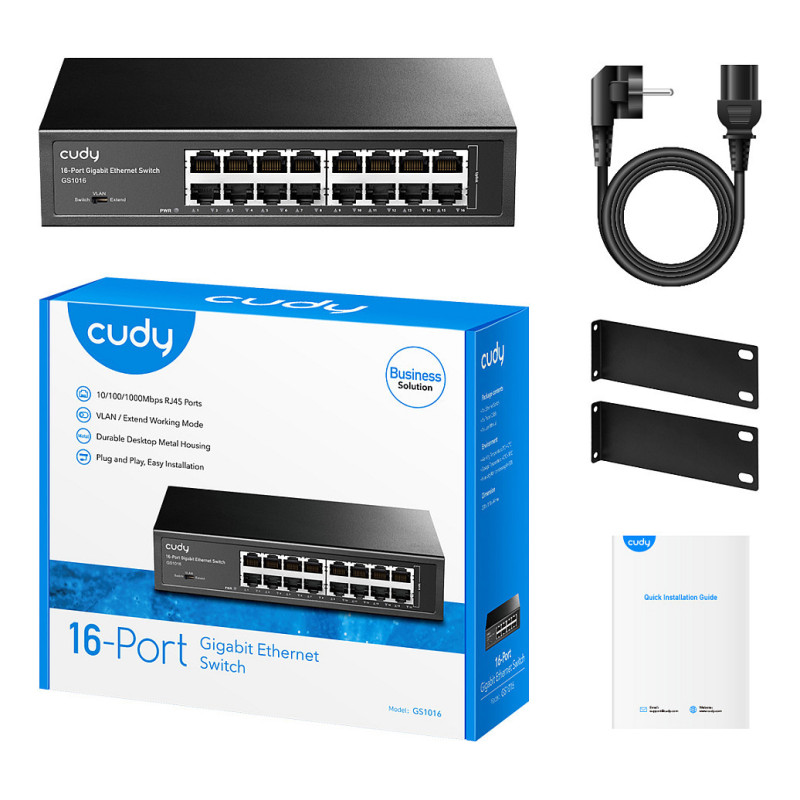

Packaging content

Cables included: AC
Feature: Manual

Packaging data

Package width: 230 mm
Package depth: 202 mm
Package height: 78 mm
