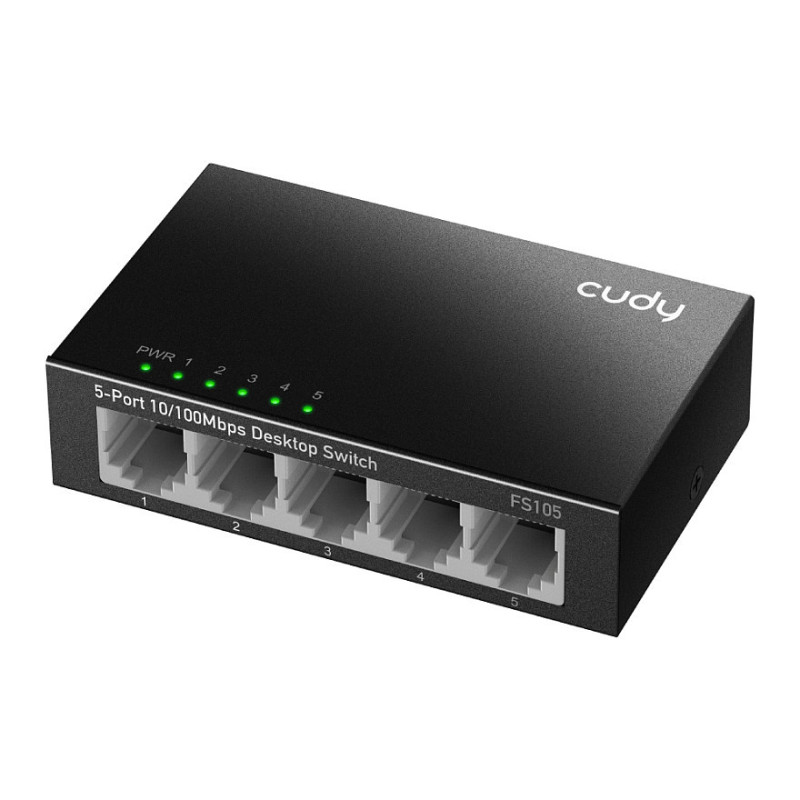

Cudy FS105 network switch

Cudy FS105. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 512 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u. DC input voltage: 5 V. Power connector: DC-in jack

A 5-FE switch with metal casing ideal for wired network expansion in home and office environments.

Reliable Transimitting
A packet buffer prevents packet loss and improves the reliability of your network.

Compact Design
Place it in a telecommunications box or cable box without assigning extra space.

Power-Efficient Chipset
Super power-efficient with 0.9W maximum and 0.25W standby power consumptions.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to the wall-mounting scenario.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat5
Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.744 Mpps
MAC address table: 512 entries
Feature: Store-and-forward
Packet buffer memory: 0.448 MB

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes

Power

Power source: DC

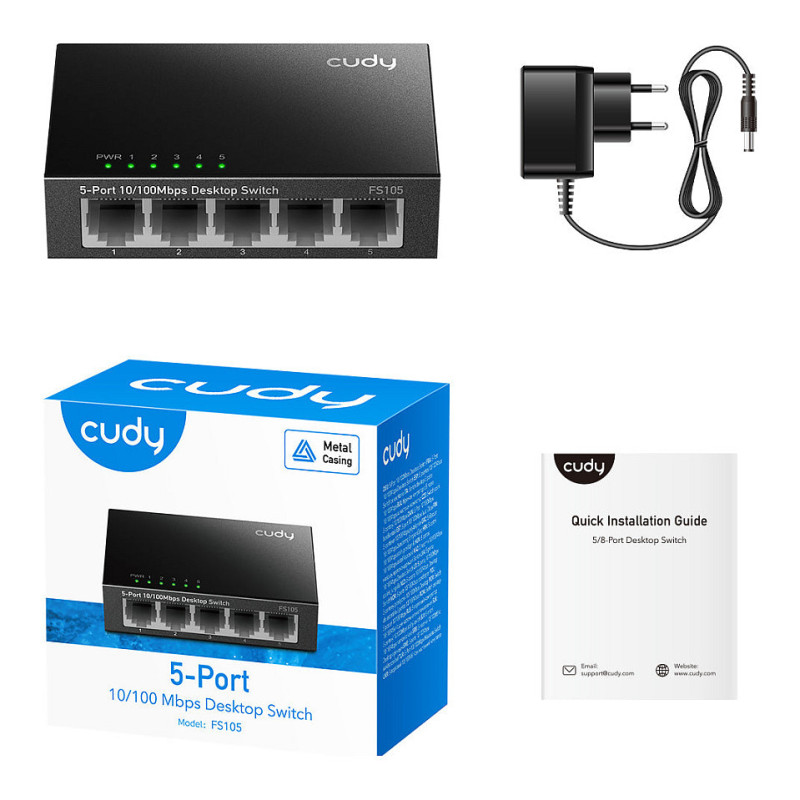

Feature: Power supply included
DC input voltage: 5 V
Input current: 0.55 A
Power consumption (max): 0.9 W

Other features

Warranty period: 1 year(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 86.5 mm
Depth: 53 mm
Height: 23 mm
Weight: 106 g

Packaging data

Package width: 92 mm
Package depth: 88 mm
Package height: 57 mm
Package weight: 188 g

Logistics data

Country of origin: China
