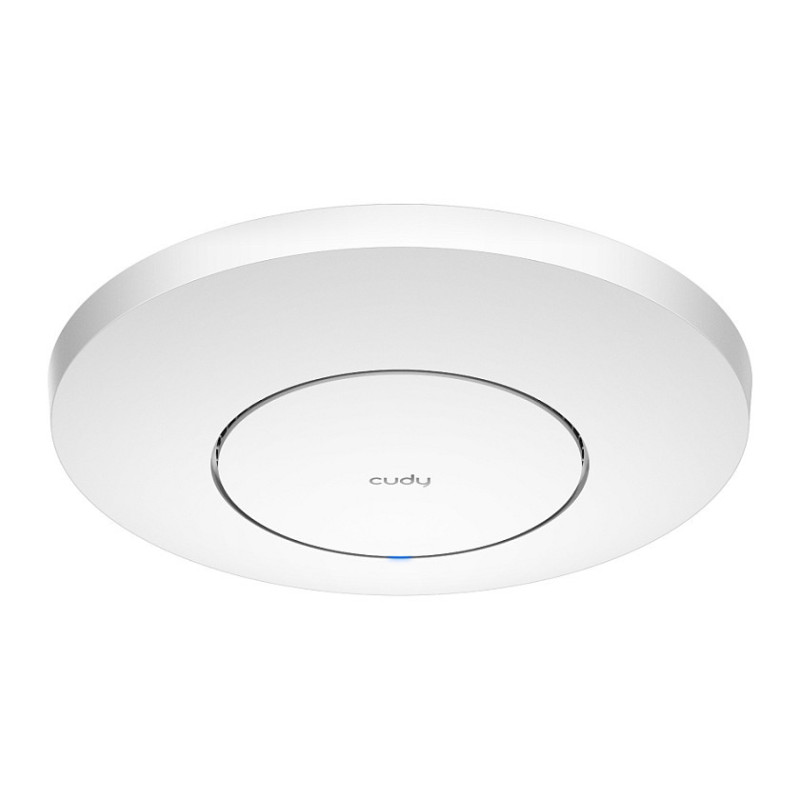

Cudy AP3600 wireless access point

Cudy AP3600. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3570 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10 W

A wall/ceiling-mounted WiFi 7 AP designed for malls, offices, campuses, and other high-density scenarios, featuring a 2.5G PoE IN port and a PoE Out port.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 3570 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 2882 Mbit/s
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Feature: Quality of Service (QoS) support

Security

Security algorithms: WPA, WPA2, WPA3
Number of SSID supported: 8
Feature: Guest access
Feature: IGMP snooping

Protocols

Feature: DHCP server

Management features

Feature: Syslog
Feature: Cloud-managed

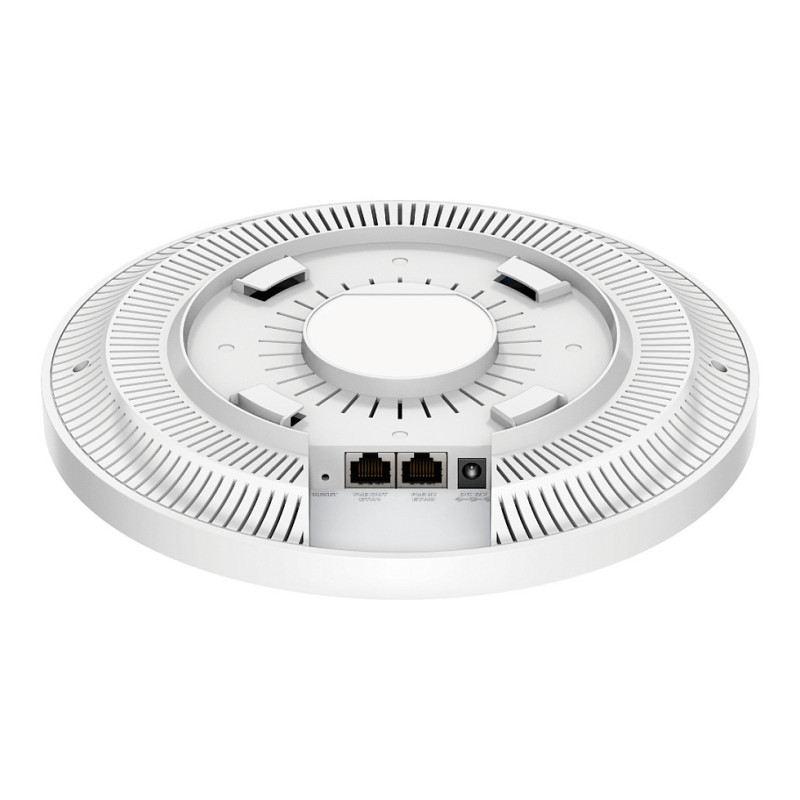

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
DC voltage range: 48-57 V
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 10 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: System

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 5.5 dBi

Performance

Feature: Built-in processor
Processor frequency: 2000 MHz
Flash memory: 128 MB
Internal memory: 512 MB

Technical details

Products per shipping (inner) case: 10 pc(s)

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 231.9 mm
Depth: 231.9 mm
Height: 57.1 mm
Weight: 435 g

Packaging data

Package width: 310 mm
Package depth: 238 mm
Package height: 73 mm
Package weight: 843 g

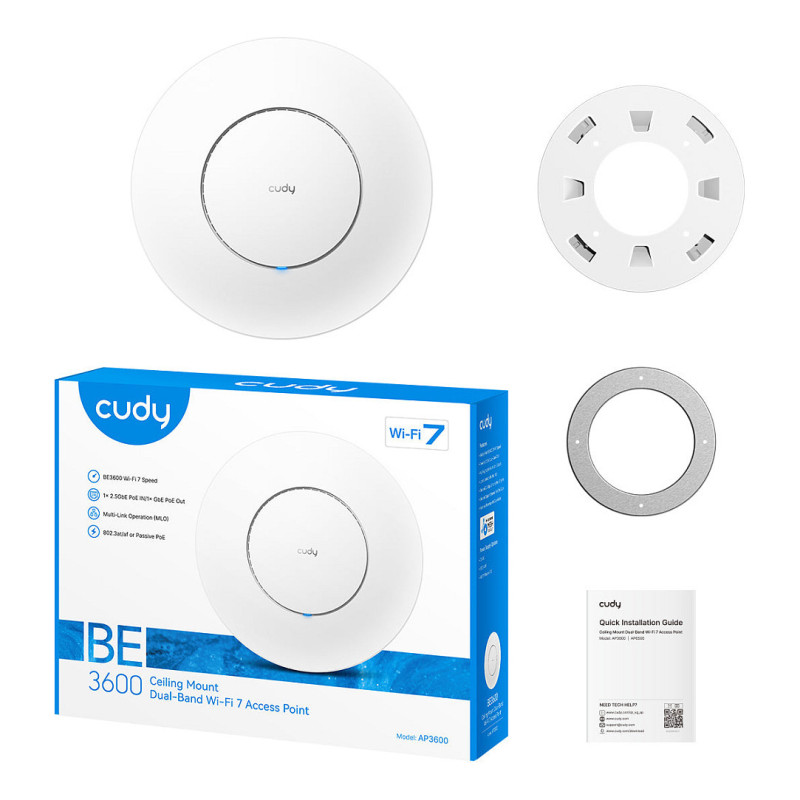

Packaging content

Cables included: LAN (RJ-45)

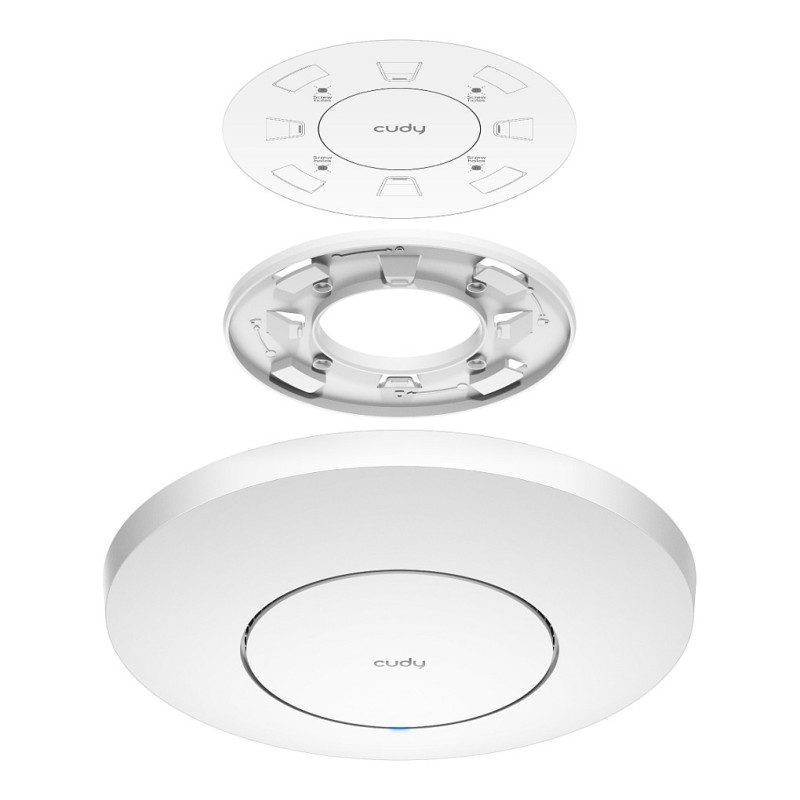

Feature: Mounting kit
Feature: Quick start guide
Bundled software: Cudy Software

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Country of origin: China
