Cudy AP3000 Outdoor

Cudy Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,10 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 18 W

Super-Fast, Super-Efficient AX3000 Wi-Fi 6
Wi-Fi 6 with the highest 160 MHz channel width and 1024-QAM modulation provide up to 3 Gbps total throughput. OFDMA and MU-MIMO work on uplink plug download directions allowing it to connect over 100 devices while minimizing latency. (Max 512 devices)

High-Power Wi-Fi Coverage with Five PA
Equipped with five power amplifiers and a 3+2 antenna structure, this AP delivers top-notch capabilities to navigate its signal through physical obstacles.

Works in Rain, Thunder, Dust, Heat, Cold
The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 6 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 158 °F (-40 to 70 ).

Mesh Networks

Seamless Roaming for Smooth Wi-Fi Experience
Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Plug-and-Play Mesh Installation

Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or continue using the Ethernet backhaul after pairing.

Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. The system will automatically switch to a better path once the original backhaul path is congested.

Guide to Wiring and Physical Installation

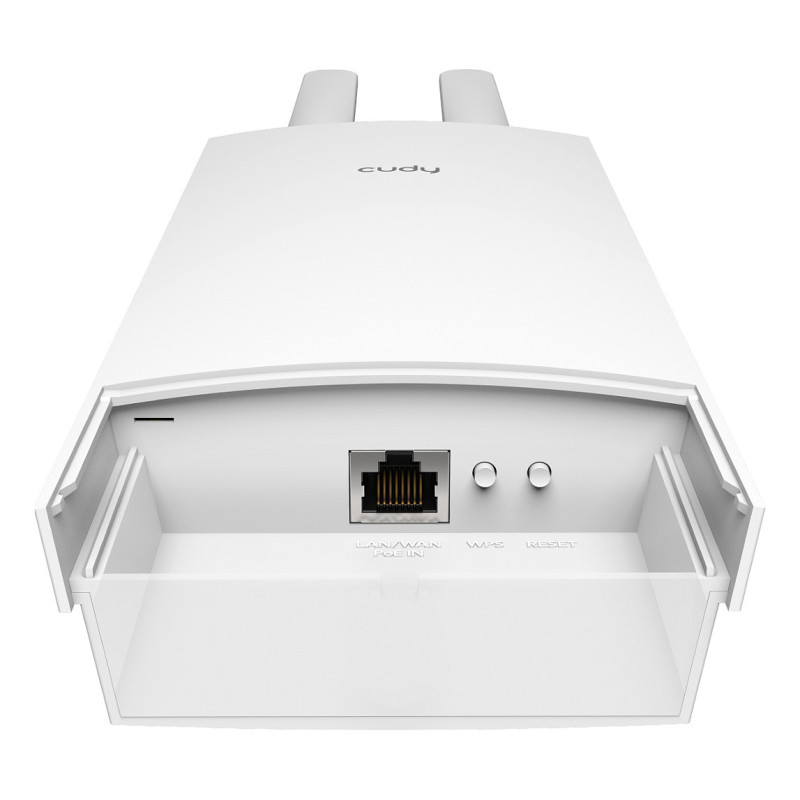

Gigabit Port with Two PoE Options
Supports two powering methods—

802.3at PoE (Max power: 18 W, Idle: 5 W)
48-57 V Passive PoE (Adapter included, not waterproof)
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.

Mounting Kit Included
A mounting kit is included in the box, supporting—

Wall-Mounting

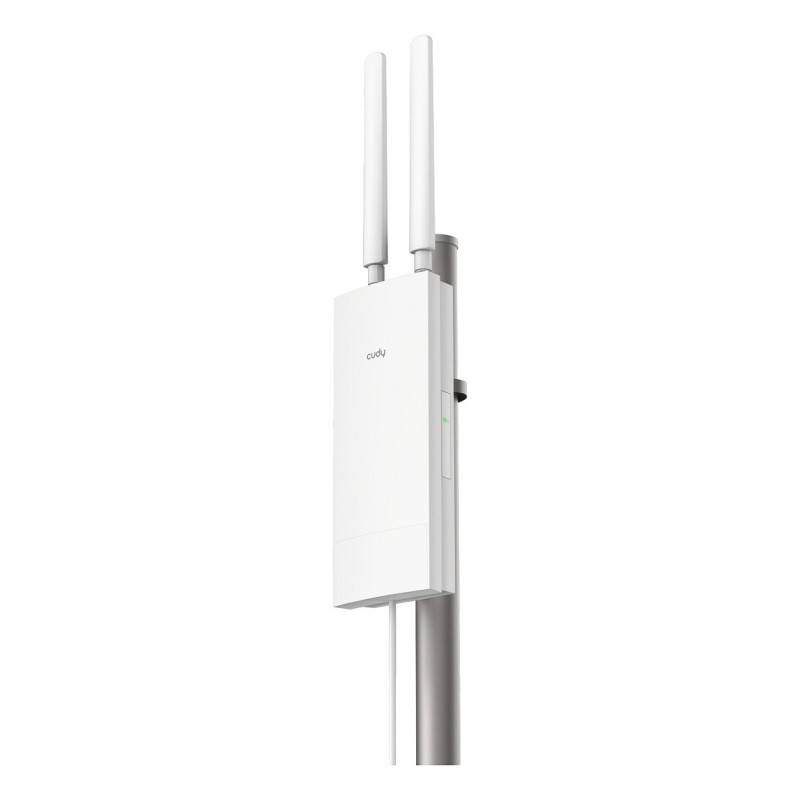

Pole-Mounting

Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2976 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 100,1000,2500,10 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: OFDMA
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Quality of Service (QoS) support
Maximum outdoor range: 320 m

Security

Security algorithms: WPA, WPA2, WPA3
Feature: MAC address filtering
Feature: IP address filtering
Number of SSID supported: 8
Feature: Guest access
Feature: IGMP snooping

Protocols

Feature: DHCP client

Management features

Feature: Web-based management
Feature: Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
DC voltage range: 48-57 V
Power consumption (typical): 5 W
Power consumption (max): 18 W

Design

Placement: Pole, Wall
Product colour: White
International Protection (IP) code: IP65
Feature: Reset button
Feature: WPS push button

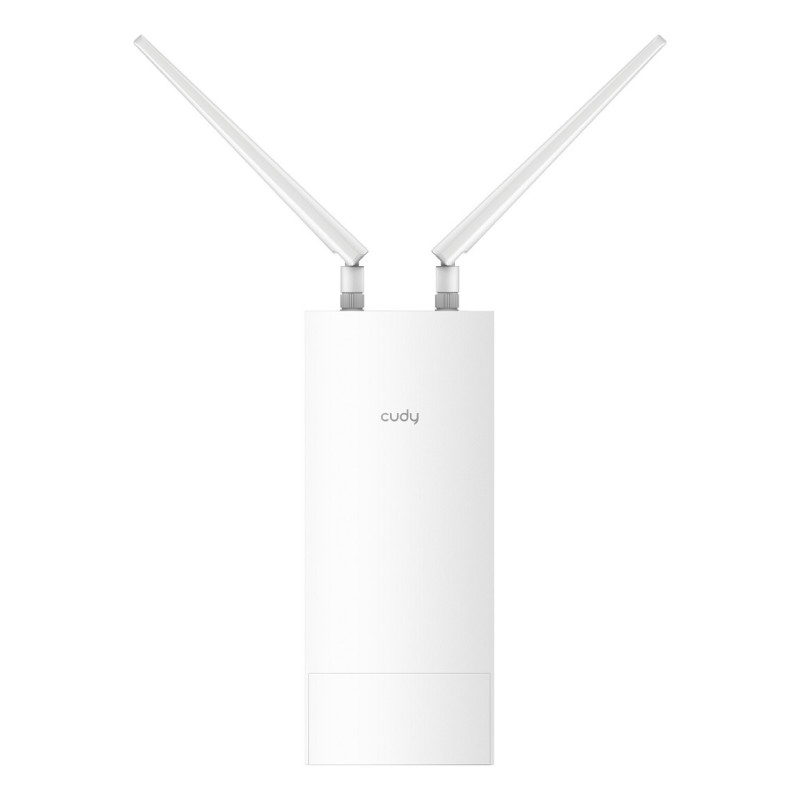

Antenna

Antenna type: Internal & external

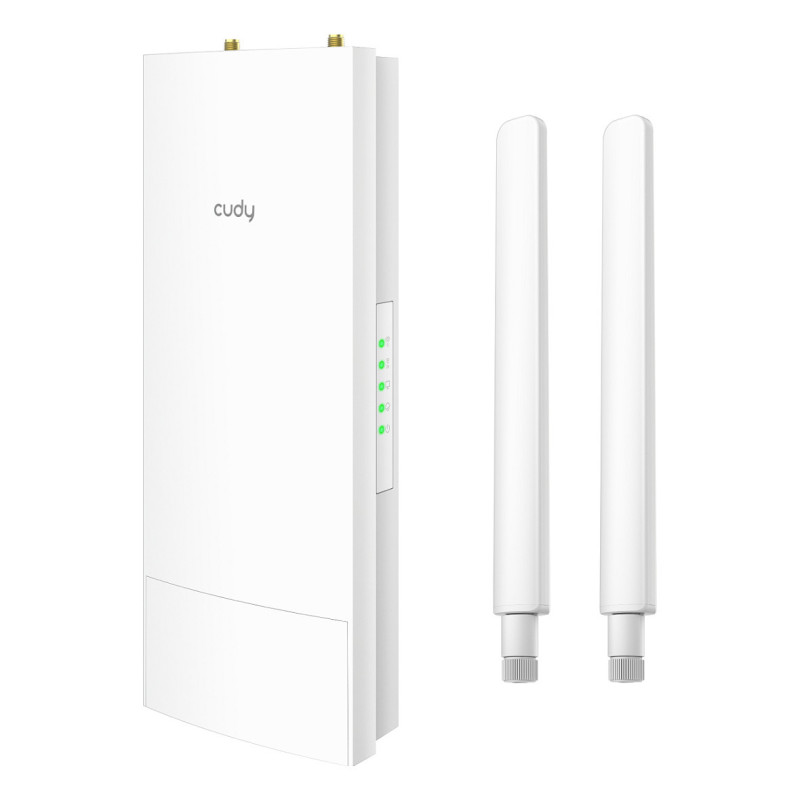

Antenna features: Detachable antenna
Antennas quantity: 2
Antenna connector type: RP-SMA

Performance

Chipset: MT7981, IPQ5018
Flash memory: 128 MB

Technical details

Products per shipping (inner) case: 20 pc(s)

Weight & dimensions

Width: 240 mm
Depth: 100 mm
Height: 53.7 mm
Weight: 455 g

Packaging data

Package width: 324 mm
Package depth: 107 mm
Package height: 86 mm
Package weight: 856 g

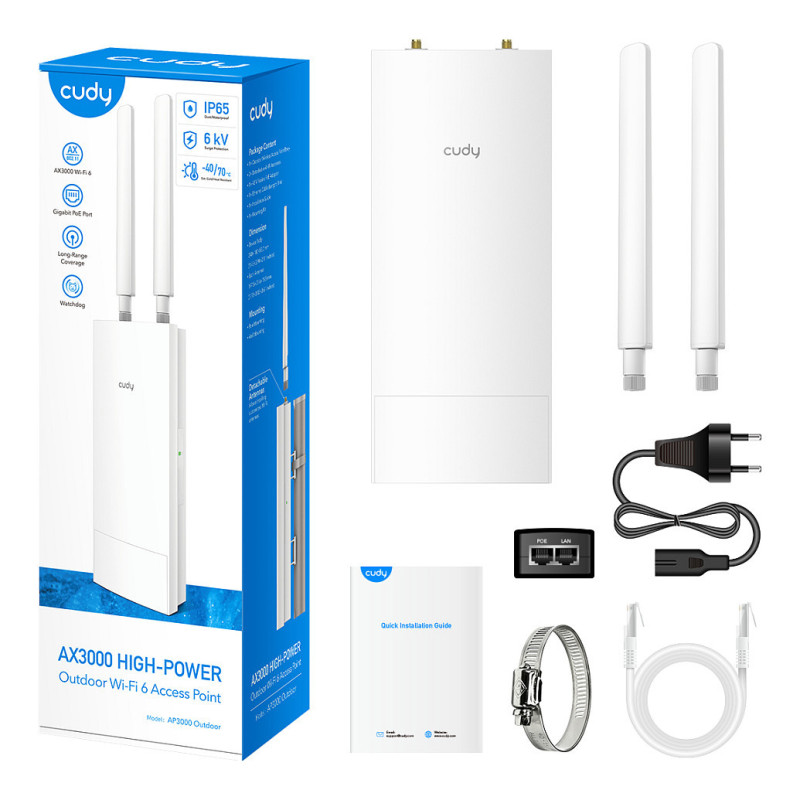

Packaging content

Feature: PoE adapter included
Cables included: UTP
Feature: Mounting kit
Feature: Quick start guide
Bundled software: Cudy Software

Logistics data

Country of origin: China
