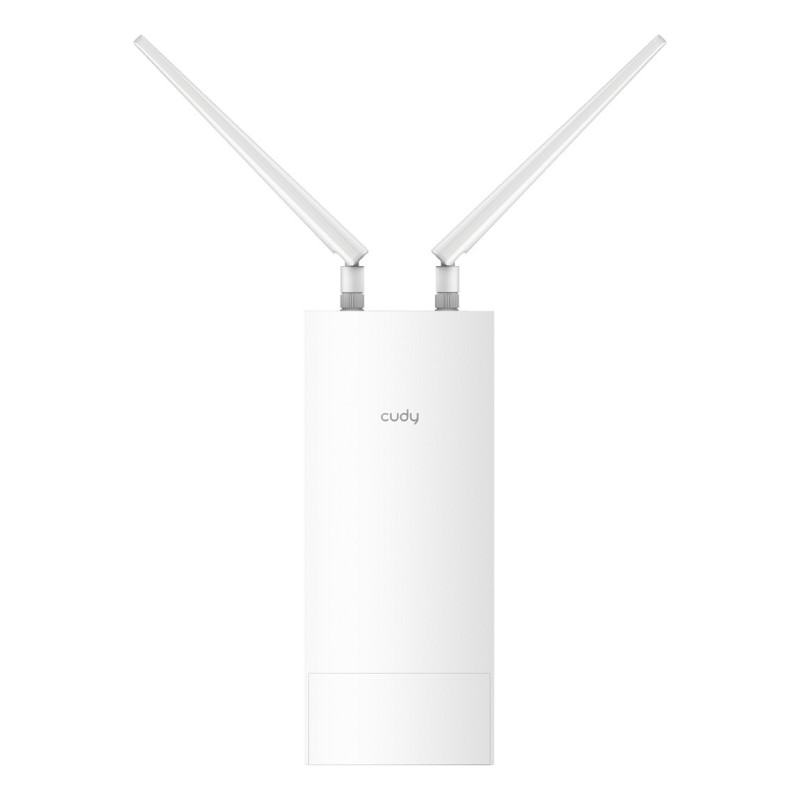

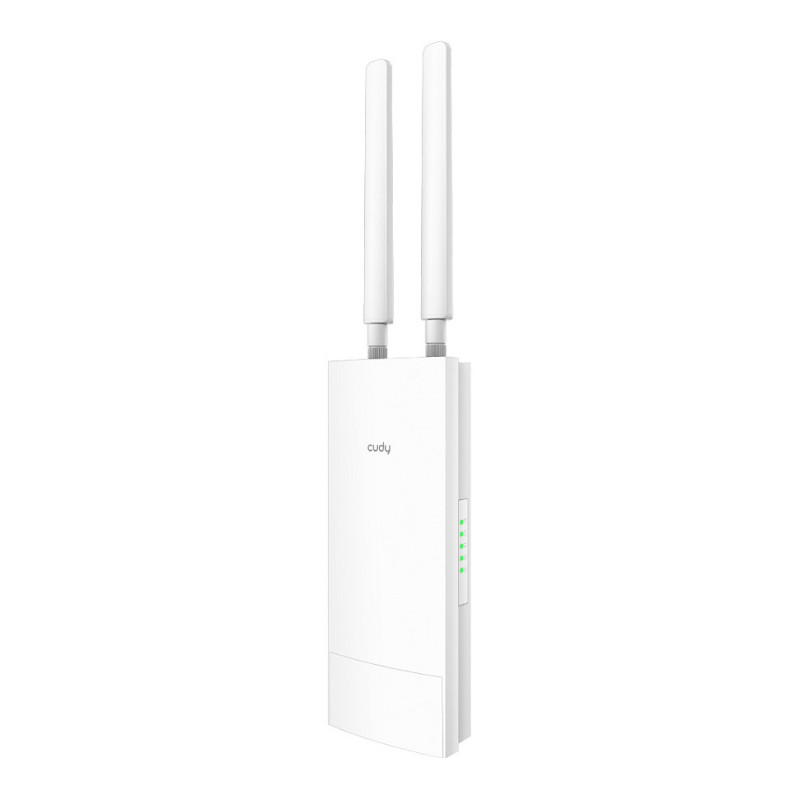

Cudy AP1300 Outdoor

Cudy AP1300 Outdoor. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Speedy Dual-Band AC1200 Wi-Fi
With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.

Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

Works in Rain, Thunder, Dust, Heat, Cold
The AP is protected by an IP65 standard case, shielding it from rain and dust when installed vertically. It also features 4 kV Lightning/Surge and 8 kV ESD protection for higher reliability in thunderstorms. Its working temperatures span from -40 °F to 149 °F (-40 to 65 ).

Mesh Networks

Seamless Roaming for Smooth Wi-Fi Experience
Enhance the Wi-Fi experience for your visitors by implementing a unified Wi-Fi name across your entire premises. With mesh technology, enjoy uninterrupted roaming as clients seamlessly connect to the strongest available Wi-Fi node without manual switching.

Plug-and-Play Mesh Installation

Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)

Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.

Guide to Wiring and Physical Installation

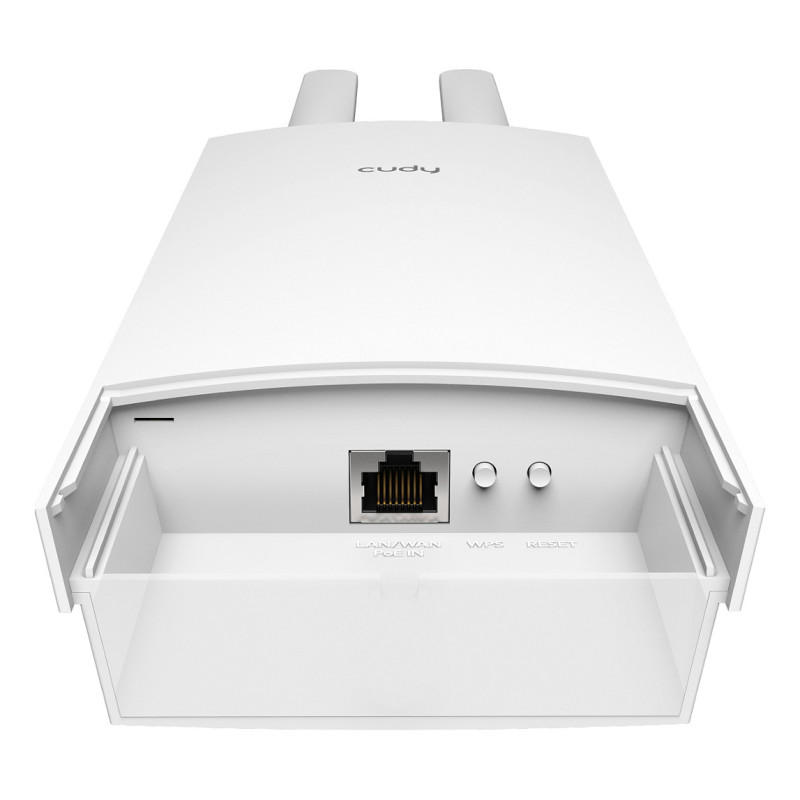

Gigabit Port with Two PoE Options
Supports two powering methods—

802.3at PoE (Max power: 18 W, Idle: 5 W)
48-57 V Passive PoE (Adapter included, not waterproof)
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously. See Cudy PoE Switches for more information.

Mounting Kit Included
A mounting kit is included in the box, supporting—

Wall-Mounting
Pole-Mounting

Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller（Model:C200P）, enabling efficient batch configuration and firmware updates through a unified interface.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1167 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Number of users: 128 user(s)
Channel bandwidth: 80 MHz
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Mesh networking
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Fast roaming
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Rate limiting
Operating modes: Wireless Access Point, Wireless Router, Wireless Extender, WISP
Feature: Wireless isolation
Feature: Band steering
Feature: Quality of Service (QoS) support
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)
Feature: BeamForming
Maximum outdoor range: 170 m

Security

Security algorithms: WPA, WPA2, WPA3
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 8
Feature: Parental control
Feature: IGMP snooping
Feature: Network address translation (NAT)

Protocols

Feature: DHCP client

Management features

Feature: Web-based management
Feature: Syslog

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Wi-Fi, Ethernet (RJ-45)

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 24 - 57 V
Power consumption (typical): 11 W

Design

Placement: Pole, Wall
Product colour: White
International Protection (IP) code: IP65
Feature: Reset button
Feature: WPS push button

Antenna

Antenna type: External
Antenna features: Detachable antenna
Antennas quantity: 2
Antenna connector type: RP-SMA

Performance

Chipset: MT7621DA+MT7613B+MT7603E
Feature: Built-in processor
Processor frequency: 880 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Compatible operating systems: Microso Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Technical details

Products per shipping (inner) case: 20 pc(s)

Weight & dimensions

Width: 100 mm
Depth: 53.7 mm
Height: 240 mm
Weight: 865 g
Antenna width: 2.16 cm
Antenna depth: 1.55 cm
Antenna height: 19.8 cm

Packaging data

Package width: 324 mm
Package depth: 107 mm
Package height: 86 mm
Package weight: 865 g

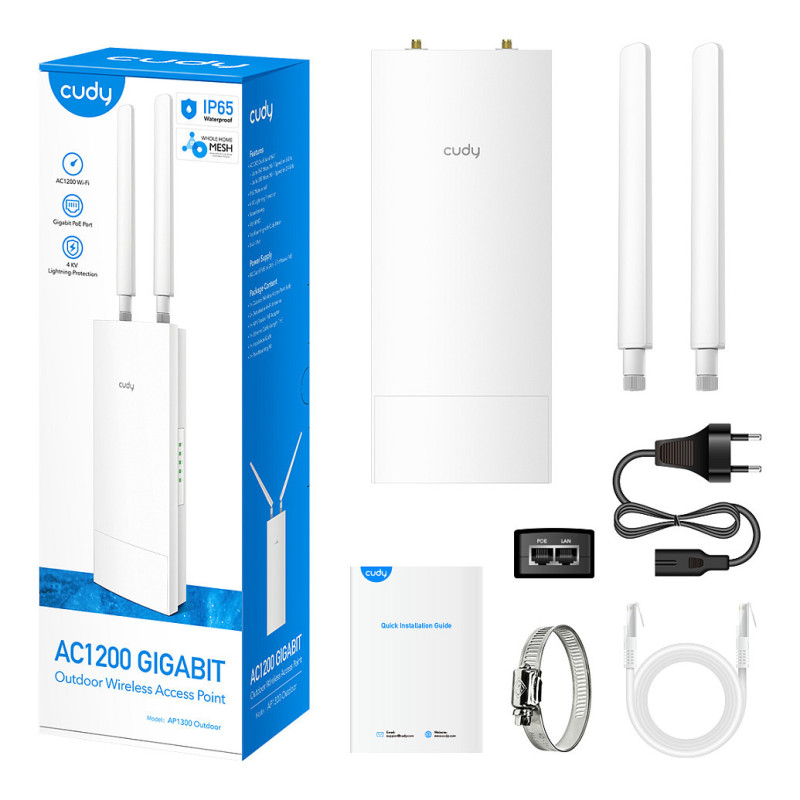

Packaging content

Feature: PoE adapter included
Cables included: UTP
Feature: Mounting kit
Feature: Quick start guide
Feature: Antenna included
Manual languages: Multi
Bundled software: Cudy Software

Other features

Wireless range: 170 m

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Logistics data

Warranty period: 1 year(s)
Country of origin: China
