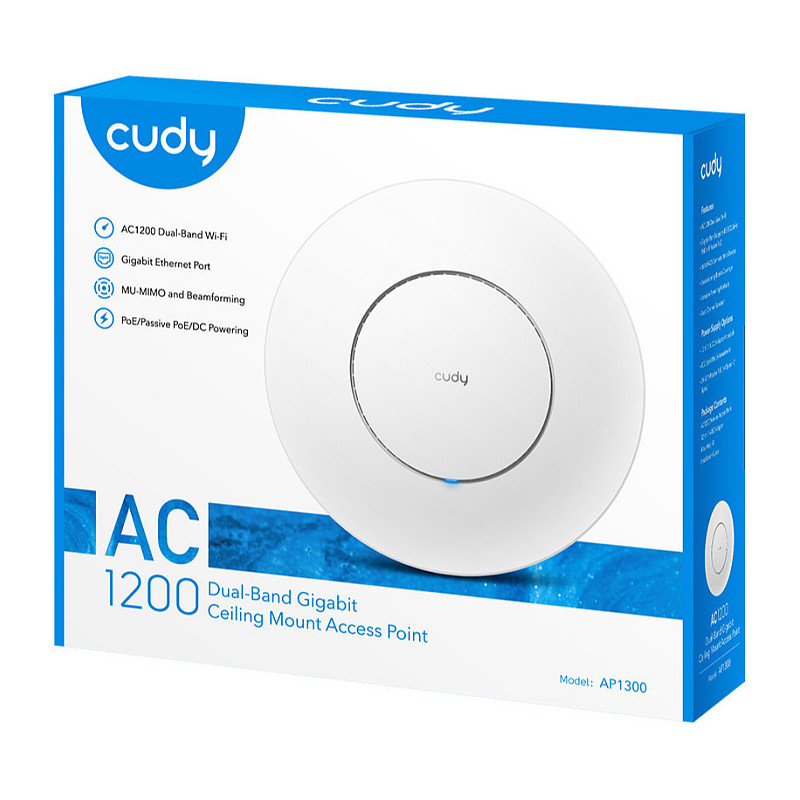

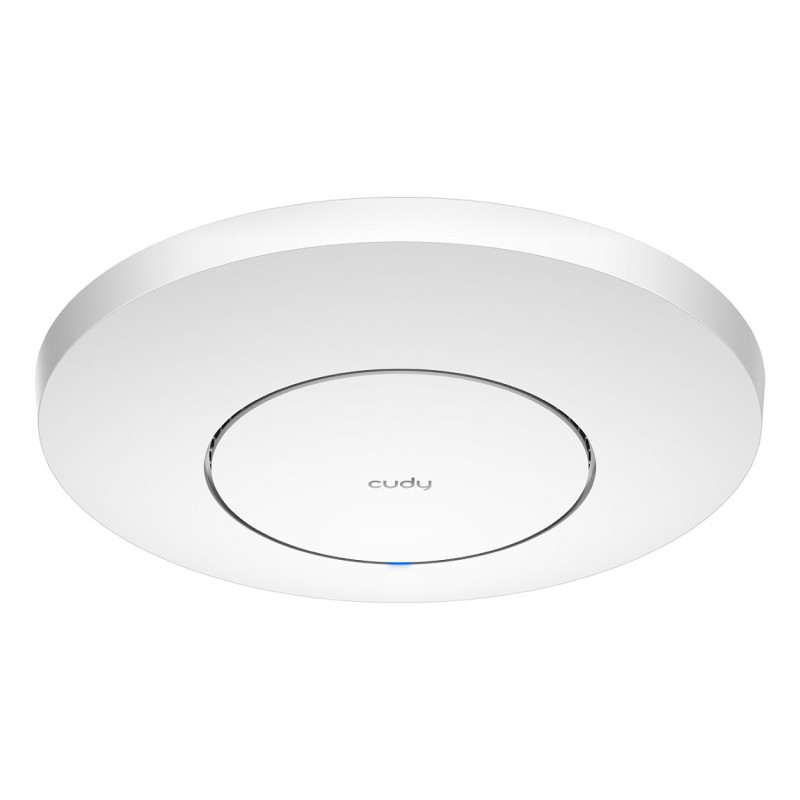

Cudy AC1300

Cudy AC1300. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 11 W

Connects More Devices
MU-MIMO technology allows for the simultaneous transmission of multiple data streams to multiple devices, improving efficiency and throughput under heavy use.


Boosted Coverage
Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.

Seamless Coverage with Fast Roaming
Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Advanced Business Features

Captive Portal
Improve your brand awareness by displaying a customized login page for new clients (AP1200/AP1300 models will soon support this feature).

Band Steering
Assign devices to less congested bands.

Auto Channel Selection
Avoid signal interruptions with nearby access points.

Auto Mesh Optimization
Form mesh backhaul via less congested routes automatically.

Flexible Wired-and-Wireless Hybrid Backhaul

Simple Wireless Mesh Backhaul
Hybrid Backhaul for Higher Performance

Multi-Mode for Multiple Scenarios

Access Point
Simply create a Wi-Fi spot behind a router.

Wi-Fi Router
Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.

Range Extender
The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP
WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Versatile Powering and Installation

Flexible PoE & DC Power Options
Supports 802.3at/af PoE, 48V Passive PoE, and DC Power input. Please note: DC adapter is not included in the package.

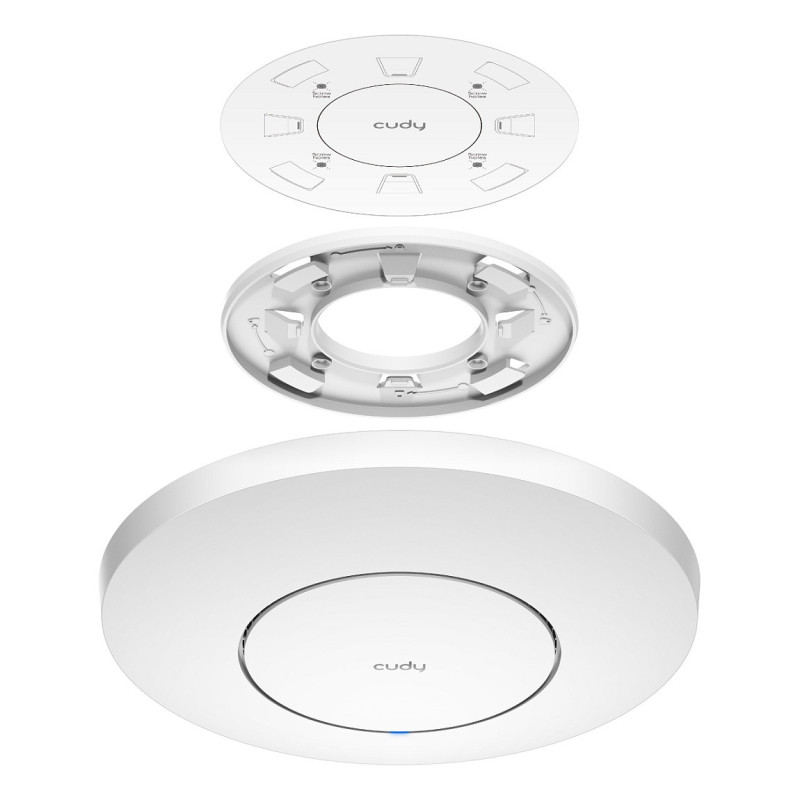

Versatile Mounting
Mounting kits are included in the box.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1167 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cabling technology: 10/100/1000Base-T(X)
Feature: Full duplex
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Mesh networking
Feature: VLAN support
Virtual LAN features: Tagged VLAN
Feature: Rate limiting
Feature: Flow control support
Feature: Band steering
Feature: Quality of Service (QoS) support

Security

Security algorithms: WPA, WPA2, WPA3
Feature: MAC address filtering
Feature: IP address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Feature: Parental control
Feature: IGMP snooping

Protocols

Feature: DHCP client

Management features

Feature: Web-based management
Feature: Syslog

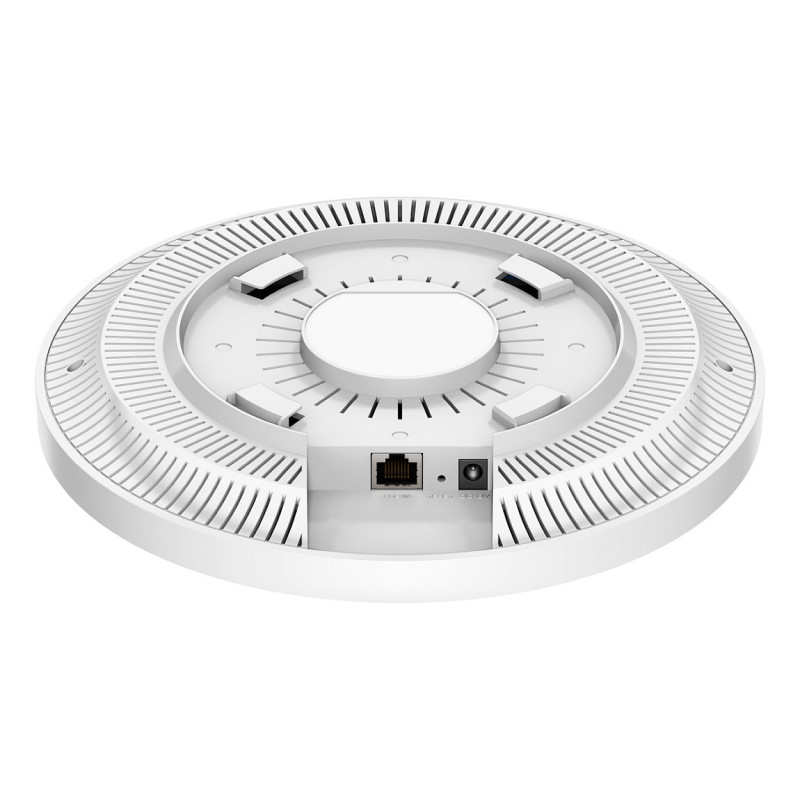

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 100 - 240 V
DC voltage range: 24 - 57 V
Output voltage: 12 V
Output current: 1 A
Power consumption (max): 11 W

Design

Placement: Ceiling, Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antennas quantity: 4

Performance

Feature: Built-in processor
Processor frequency: 880 MHz
Flash memory: 16 MB
Internal memory: 128 MB
Compatible operating systems: Windows, MAC OS, NetWare, UNIX, Linux

Technical details

Products per shipping (inner) case: 20 pc(s)

Certificates

Compliance certificates: CE

Weight & dimensions

Width: 232 mm
Depth: 57.1 mm
Height: 232 mm
Weight: 395.6 g

Packaging data

Package width: 283 mm
Package depth: 238 mm
Package height: 68 mm
Package weight: 1.51 kg

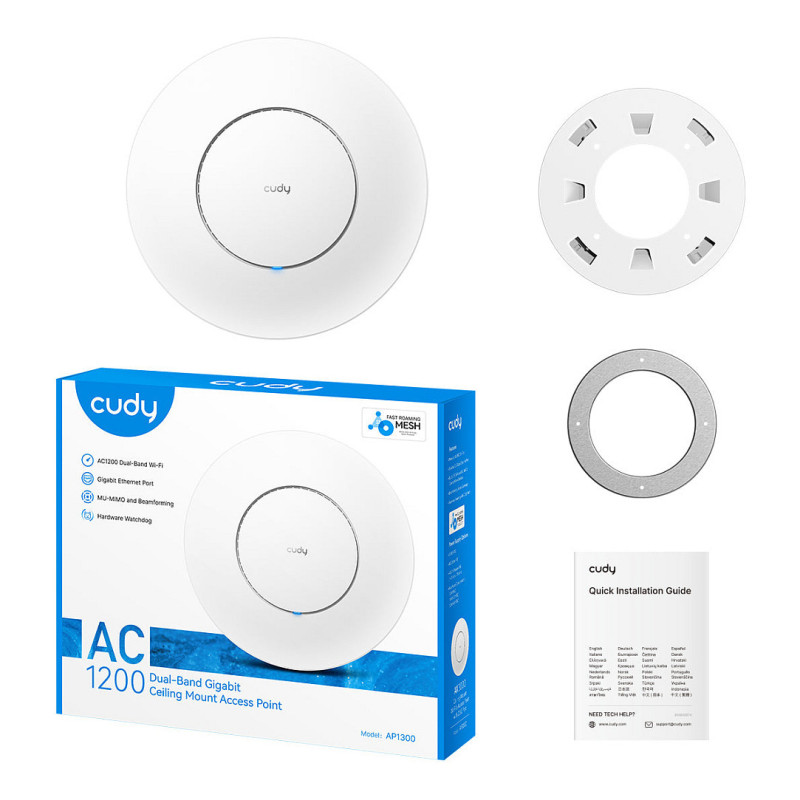

Packaging content

Quantity per pack: 1 pc(s)
Feature: AC adapter included
Feature: Mounting kit
Feature: Quick start guide
Manual languages: Multi
Bundled software: Cudy Software

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -10 - 65 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Logistics data

Warranty period: 1 year(s)
Country of origin: China
